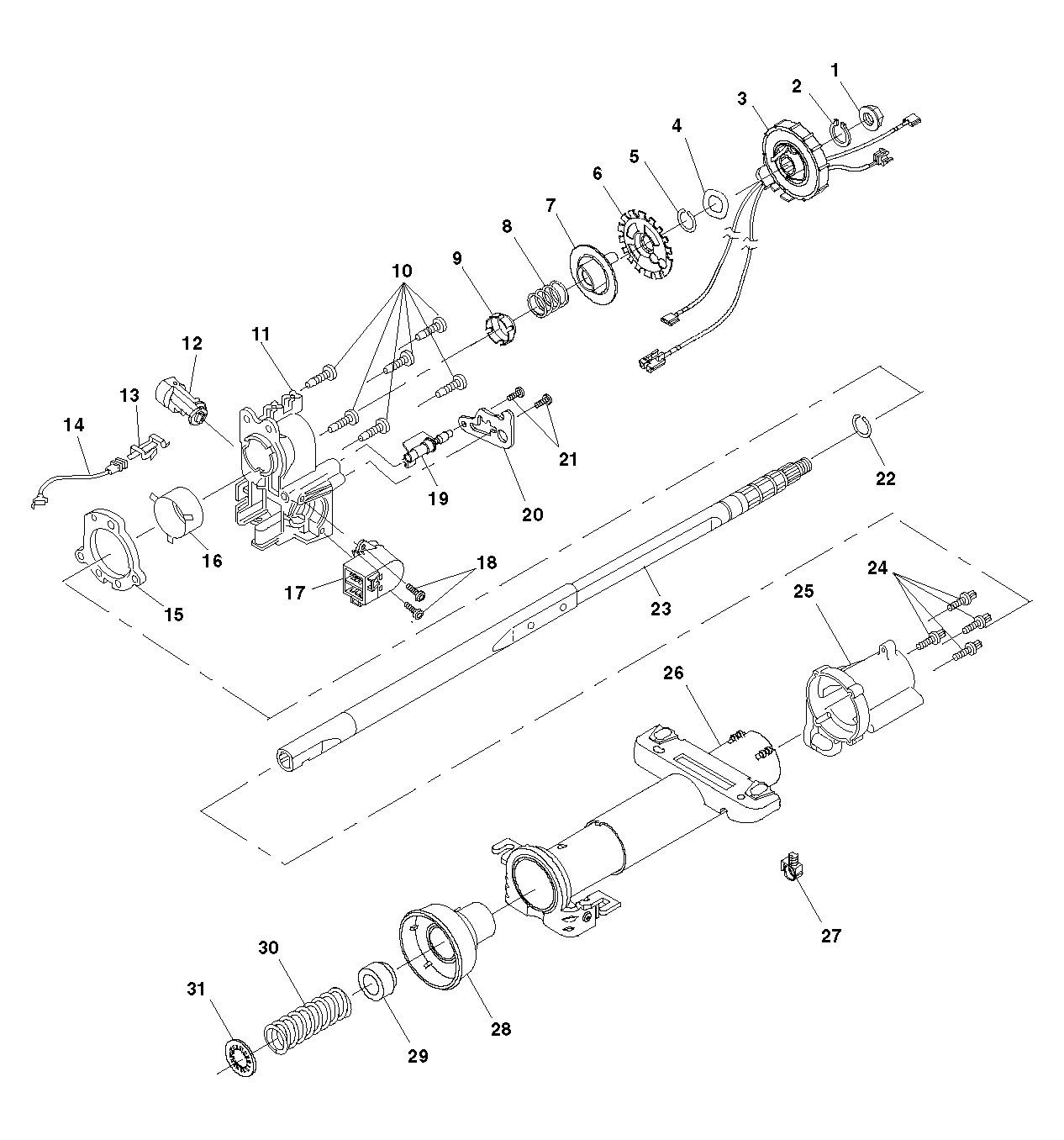

Steering Column Disassembled View (Standard Column)
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Flanged Prevailing Torque Nut |
| 2 | Retaining Ring |
| 3 | SIR Coil |
| 4 | Wave Washer |
| 5 | Bearing Retainer |
| 6 | Shaft Lock |
| 7 | Turn Signal Cancel Cam Assembly |
| 8 | Upper Bearing Spring |
| 9 | Upper Bearing Inner Race |
| 10 | Adapter Screws |
| 11 | Steering Column Housing Assembly |
| 12 | Ignition Lock Actuator Assembly |
| 13 | Lock Pre-Load Spring |
| 14 | Ground Strap |
| 15 | Mounting Plate |
| 16 | Bearing Retainer |
| 17 | Ignition Switch Assembly |
| 18 | Tapping Screws |
| 19 | Lock Bolt Assembly |
| 20 | Lock Bolt Support Bracket |
| 21 | Tapping Screws |
| 22 | Bearing Retainer |
| 23 | Steering Shaft Assembly |
| 24 | Support Screws |
| 25 | Support Mounting Adapter |
| 26 | Steering Column Jacket Assembly |
| 27 | Wire Restraint Clip |
| 28 | Adapter and Bearing Assembly |
| 29 | Lower Bearing Seat |
| 30 | Lower Bearing Spring |
| 31 | Lower Spring Retainer |
