Fuel Hose/Pipes Routing Diagram

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

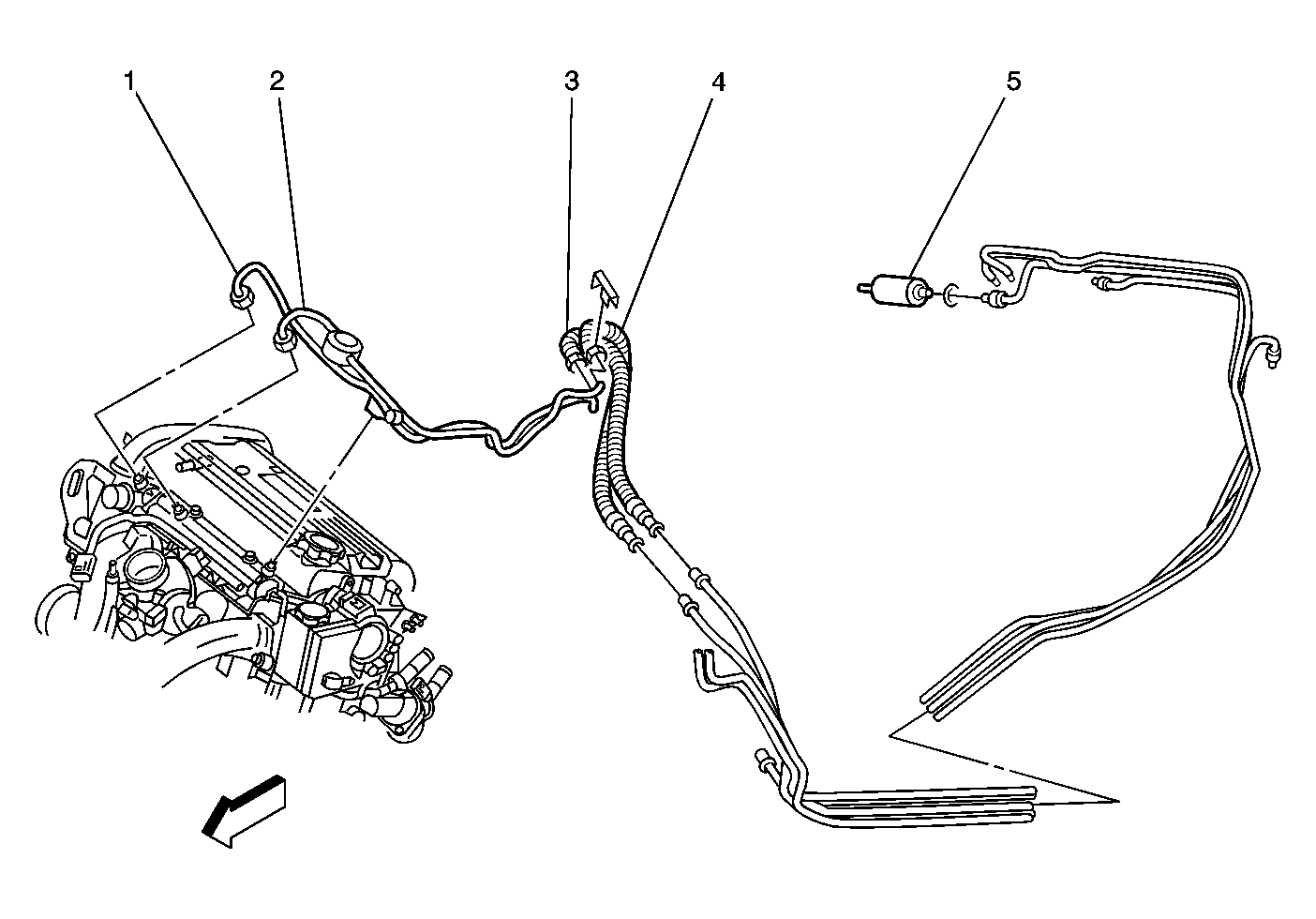

Fig 1: Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Return Pipe
2	Fuel Feed Pipe
3	Fuel Return Hose
4	Fuel Feed Hose
5	Fuel Filter
