Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Loosen the EVAP canister vent valve hose clamp and slide the clamp down the hose away from the EVAP vent valve hose connection.
    Fig 1: View Of EVAP Canister Vent Valve Hose
    GM625819Courtesy of GENERAL MOTORS CORP.
  3. Remove the hose from the EVAP canister vent valve.
  4. Remove the EVAP canister vent valve by placing a pry bar between the valve and mounting surface, and moving the valve forward.

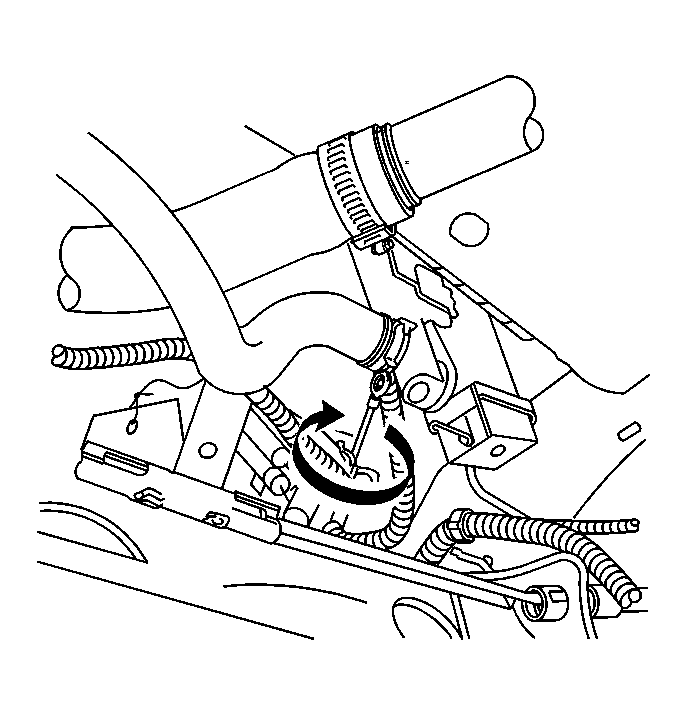

    Fig 2: Rotating EVAP Canister Vent Valve
    GM625834Courtesy of GENERAL MOTORS CORP.
  5. Remove the clip from the EVAP canister vent valve harness connector.
    Fig 3: Identifying EVAP Canister Vent Valve Harness Connector Clip
    GM409023Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the EVAP canister vent valve harness connector.
    Fig 4: View Of EVAP Canister Vent Valve Harness Connector
    GM409025Courtesy of GENERAL MOTORS CORP.
