Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the air cleaner duct from the air cleaner resonator.
  2. Loosen the air cleaner outlet resonator to throttle body clamp (3), accessed through the accelerator bracket (2) slot.

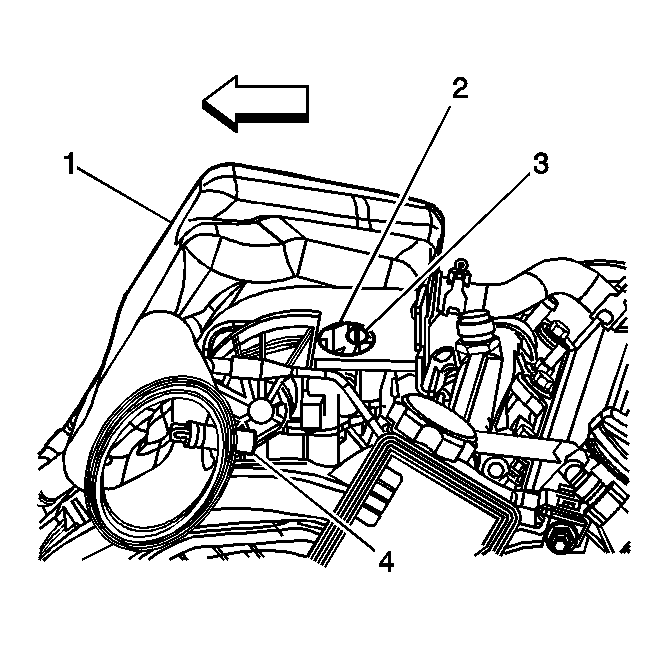

    Fig 1: Locating IAT Sensor
    GM785335Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the intake air temperature (IAT) sensor harness connector (4).
  4. Disconnect the vacuum pipe from the air cleaner resonator.
  5. Loosen the vent hose clamp and move it away from the air cleaner resonator (2).
    Fig 2: View Of Air Cleaner Outlet Resonator
    GM785334Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the vent hose (1) from the air cleaner resonator (2).
  7. Remove the air cleaner resonator (2) from the throttle body (3).
