Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

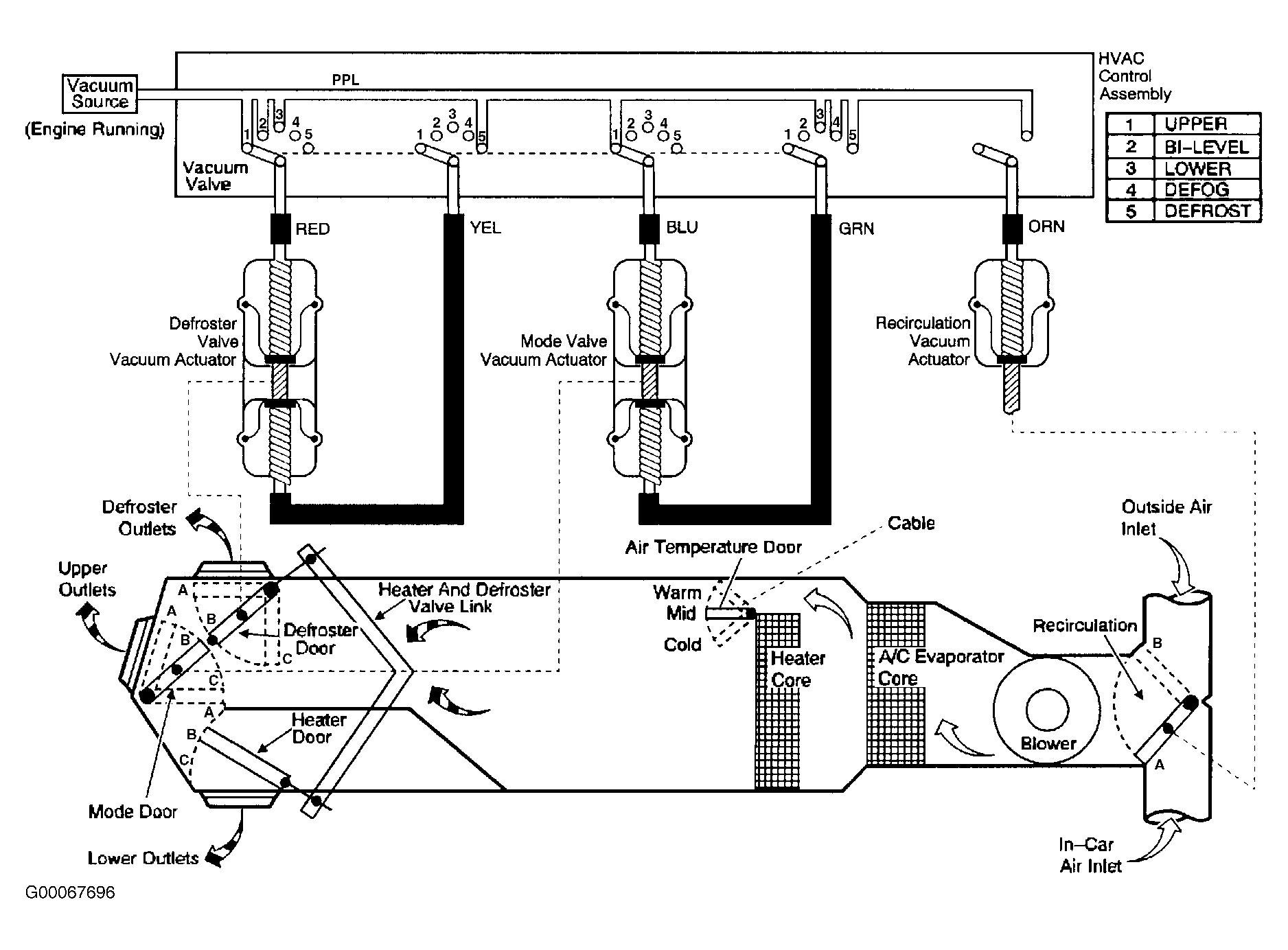

Fig 1: Manual A/C-Heater System Vacuum Hose Diagram

Courtesy of GENERAL MOTORS CORP.
