Removal & Installation (Cavalier)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim plate. Disconnect the temperature control cable from the temperature door lever. See Fig 1. Remove the cable clip retaining screw. Remove the HVAC control assembly.
  2. Remove the cable cover. Remove the cable clip from the HVAC control assembly. See Fig 2. Remove the temperature control cable.
  3. To assemble, install the temperature control cable to the HVAC control assembly. Lock the cable clip to the HVAC control assembly. Install the cable cover.
  4. Install the cable to the temperature door lever. Install the cable clip and screw to the HVAC module assembly. Install the HVAC control assembly. Install the I/P trim plate
Fig 1: Exploded View Of Temperature Door Lever & Cable
G00067692Courtesy of GENERAL MOTORS CORP.

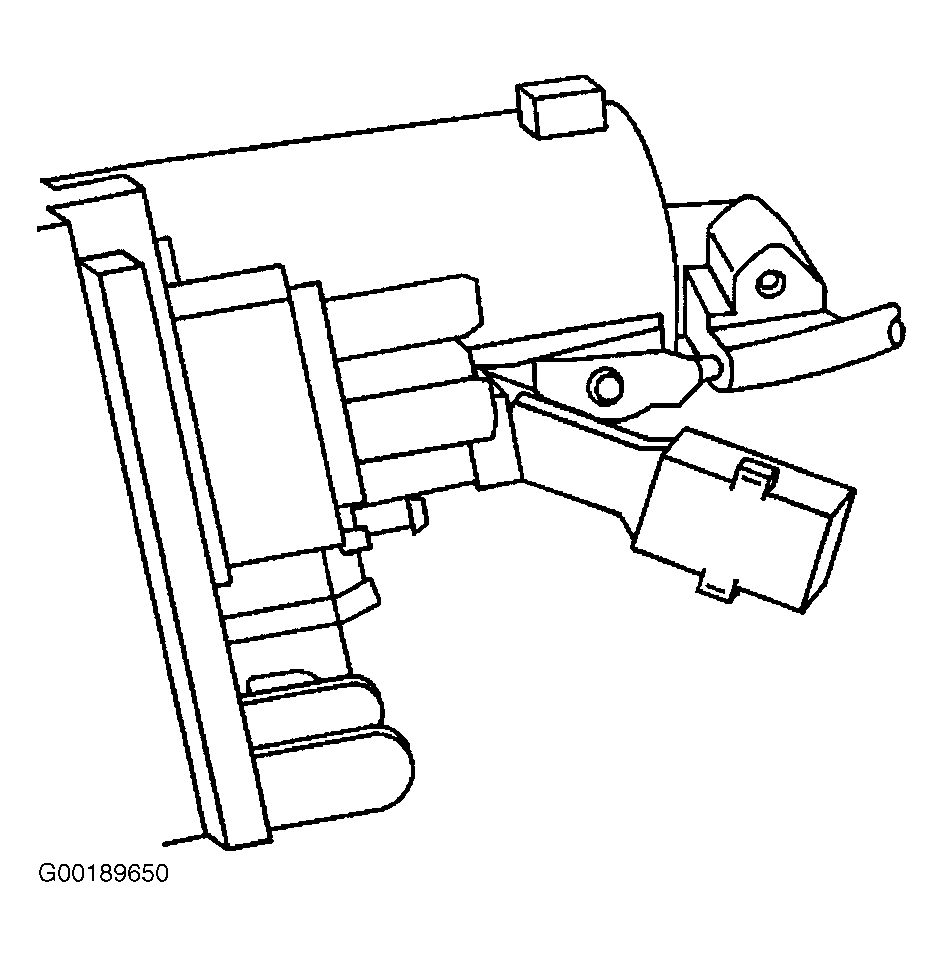

Fig 2: View Of Cable Location At HVAC Control
G00189650Courtesy of GENERAL MOTORS CORP.
