Removal & Installation: Accumulator: Removal
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- Recover the refrigerant. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Reposition the cruise control bracket, with module, if equipped. Remove the 2 nuts holding the bracket for the PCM module.

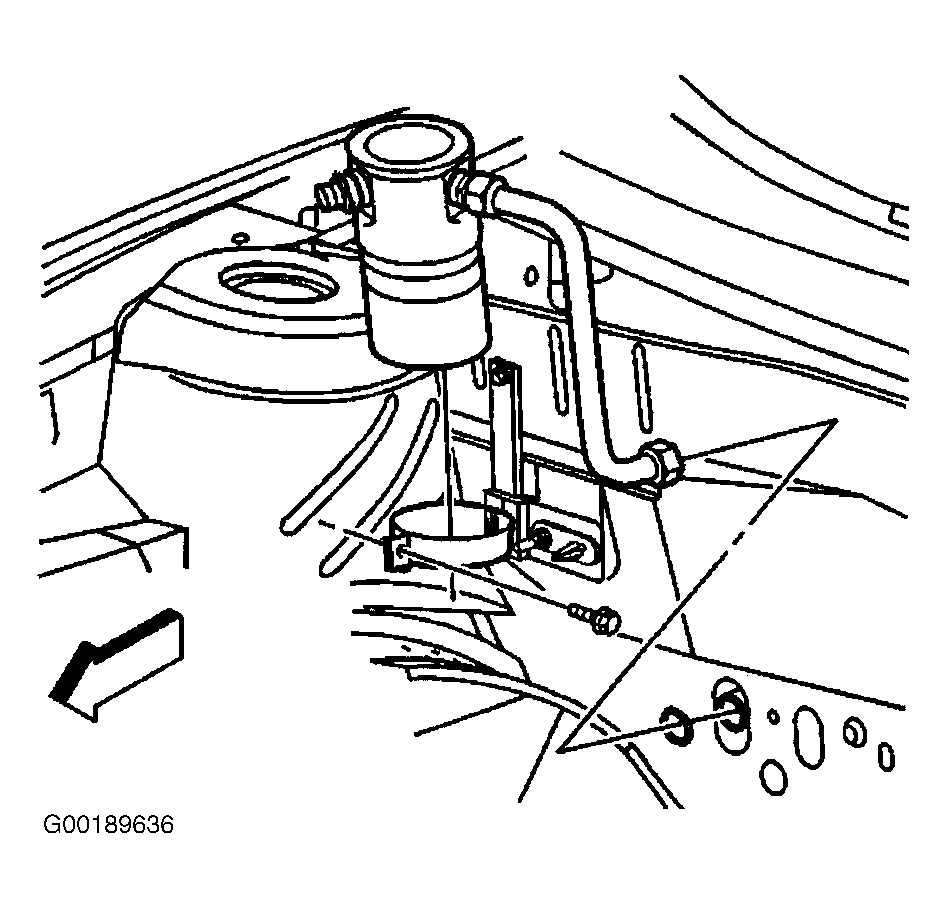

- Position the bracket and module out of the way. Remove the refrigerant tubes from the accumulator. Discard the O-ring seals. See Fig 1. Remove the accumulator bracket. Remove the accumulator from the vehicle.
