Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

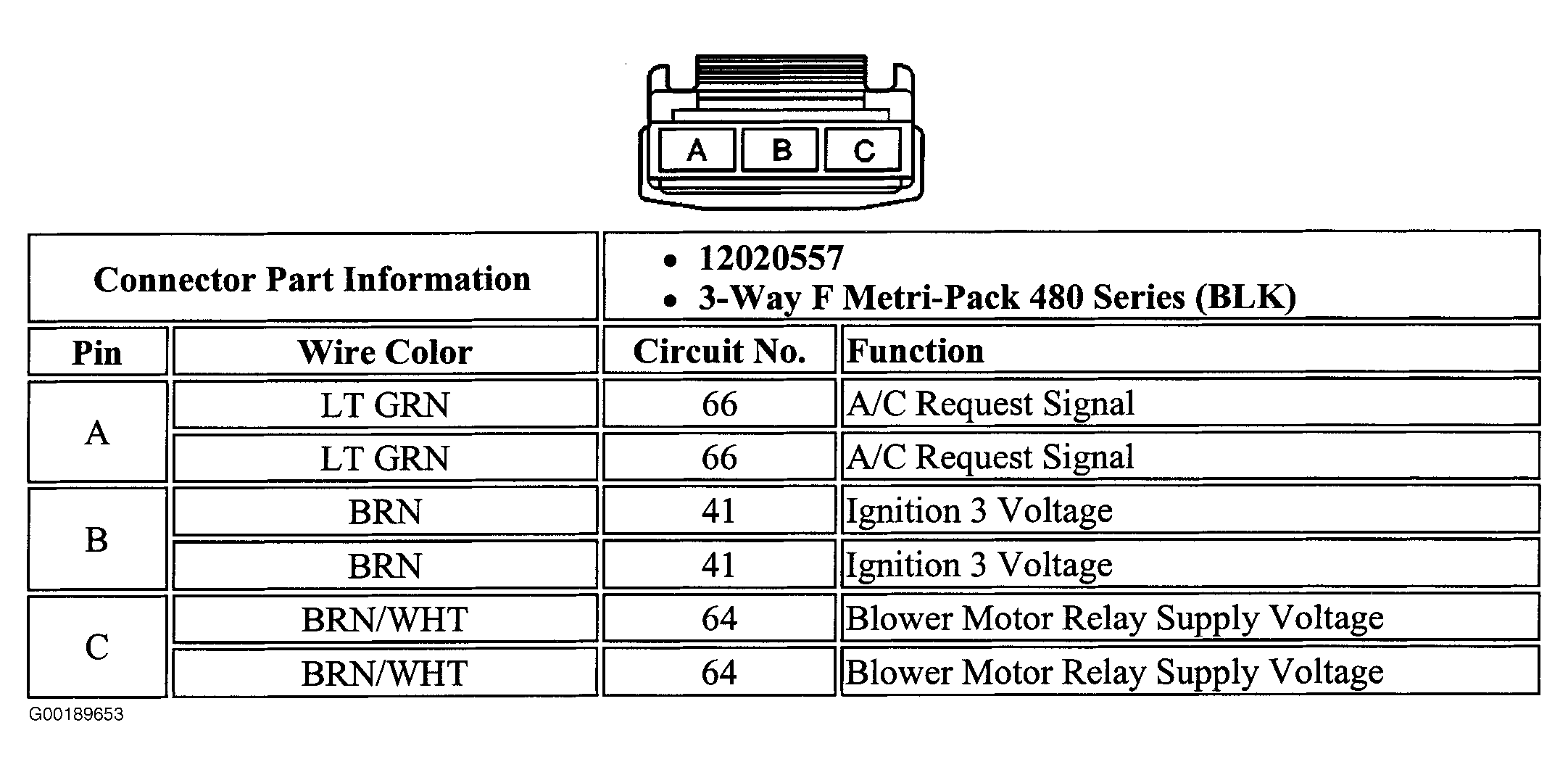

Fig 1: Identifying A/C Pressure Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

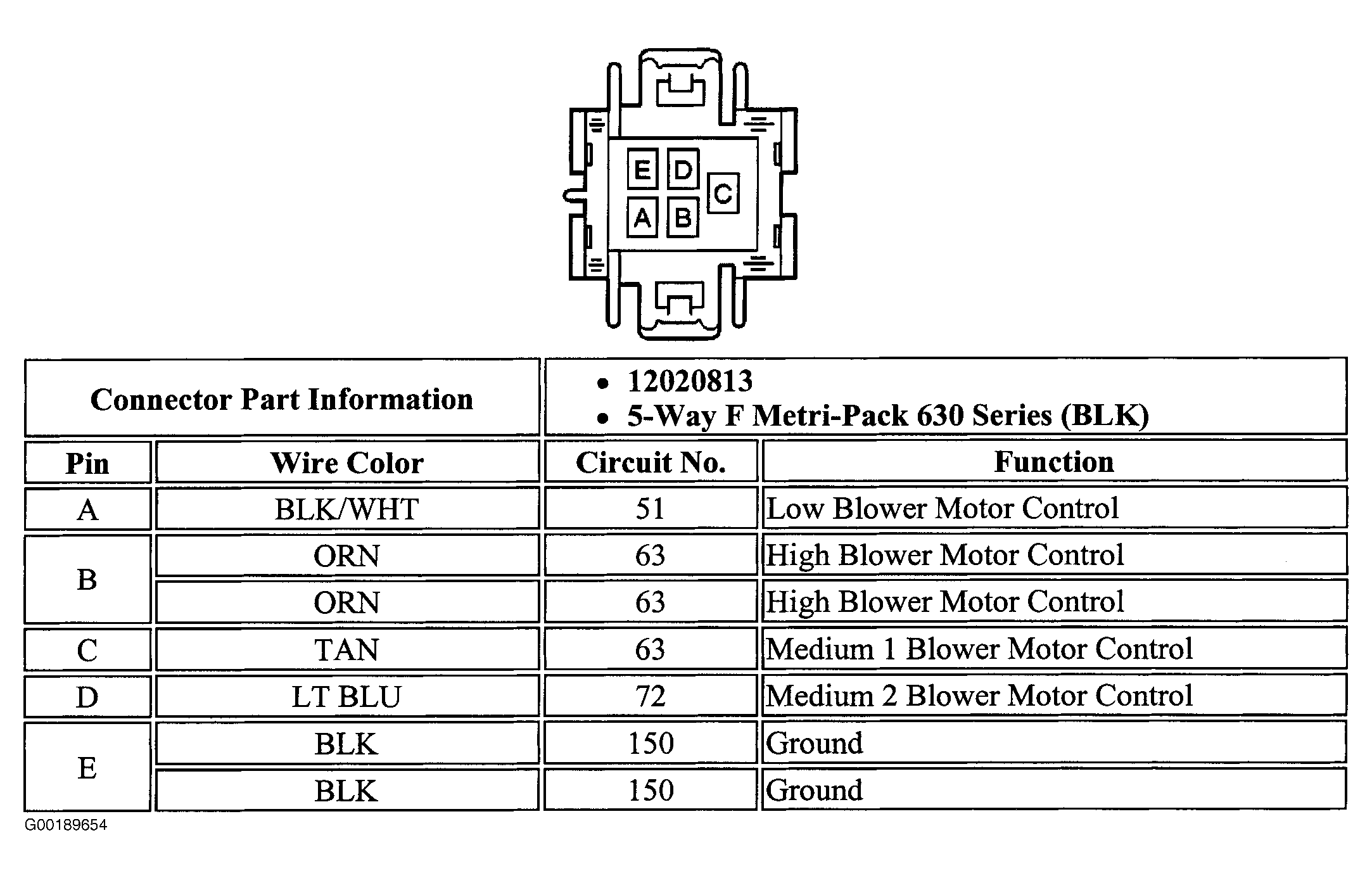

Fig 2: Identifying Blower Motor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

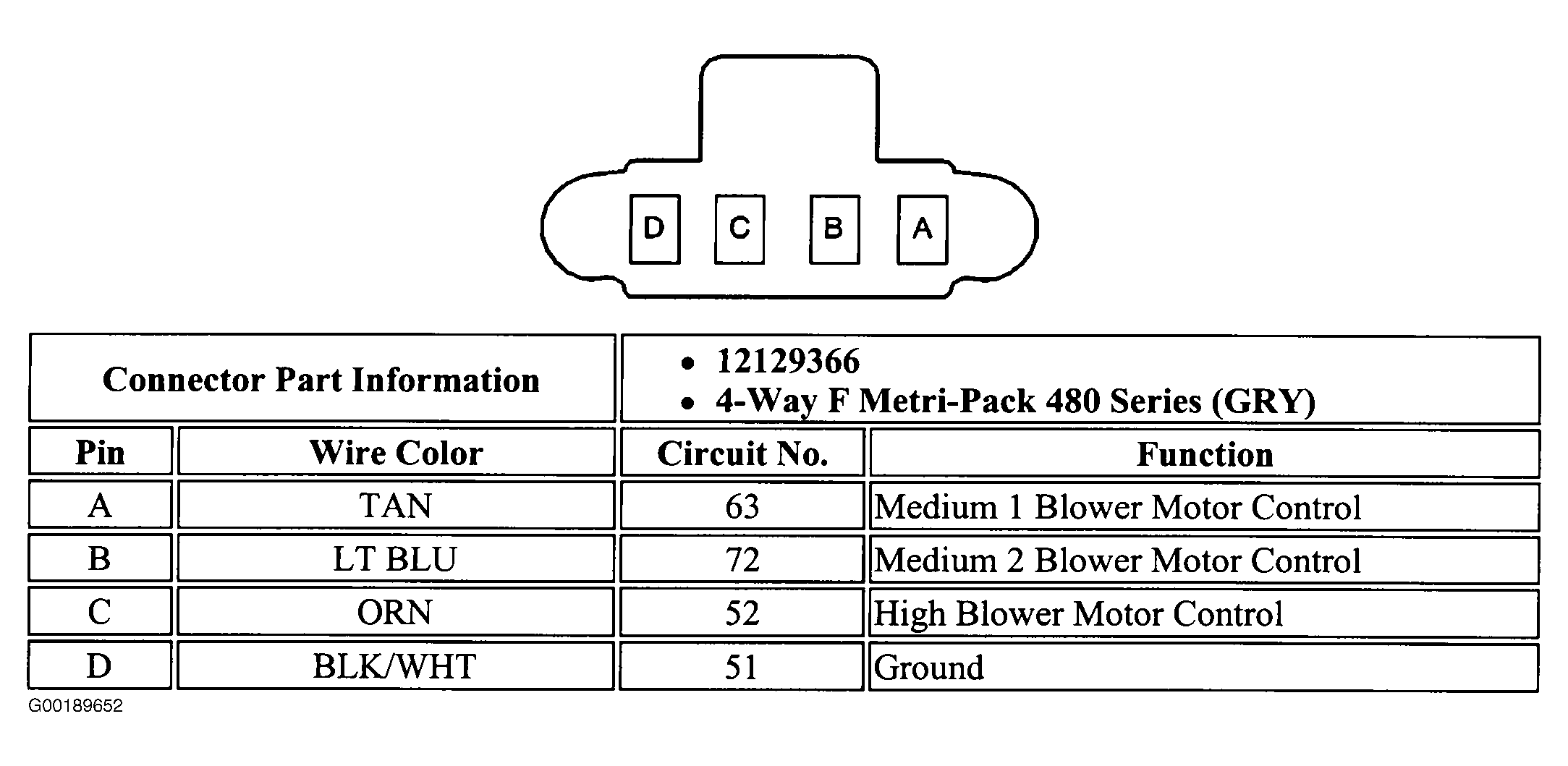

Fig 3: Identifying HVAC Control Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

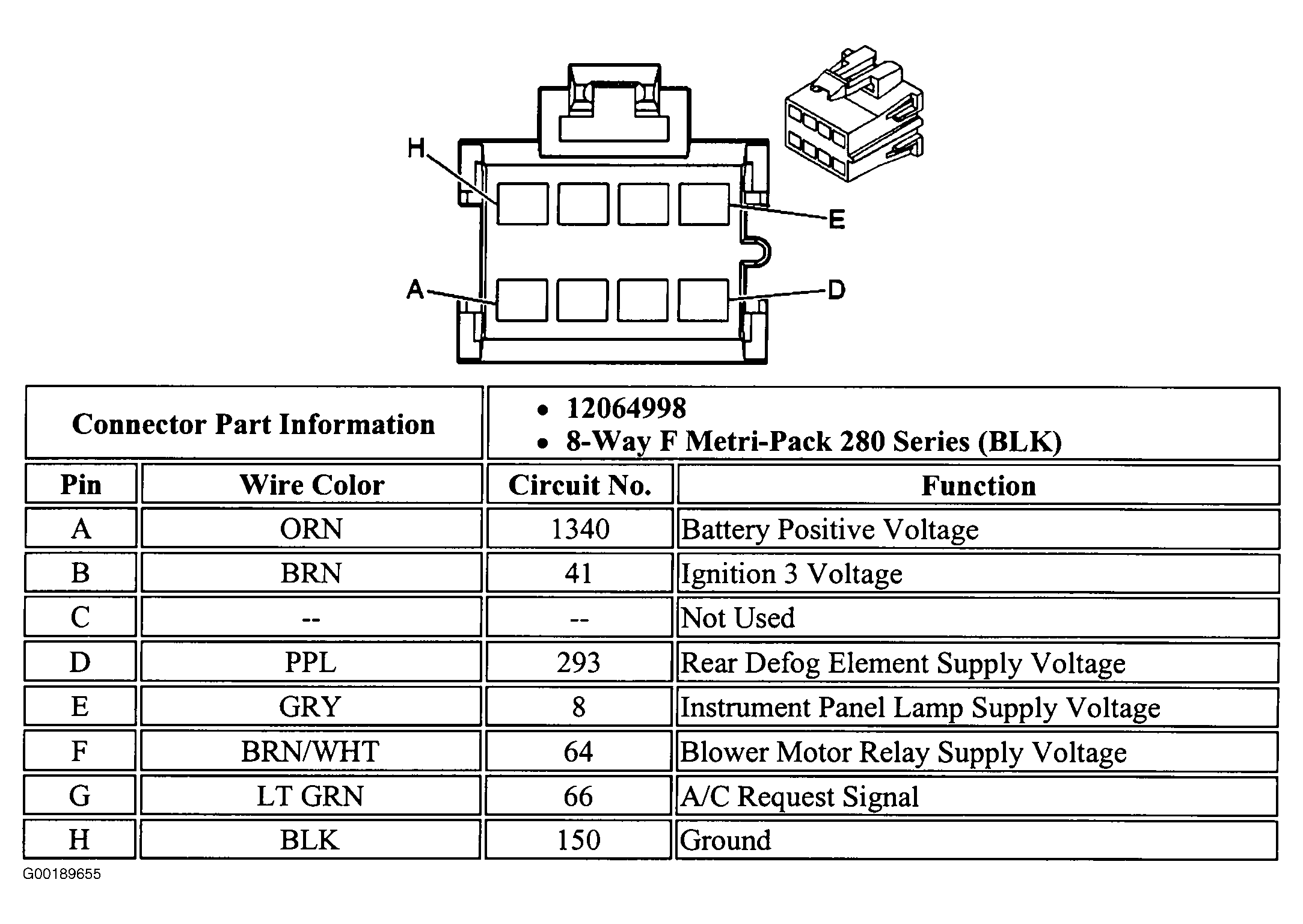

Fig 4: Identifying HVAC Control Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

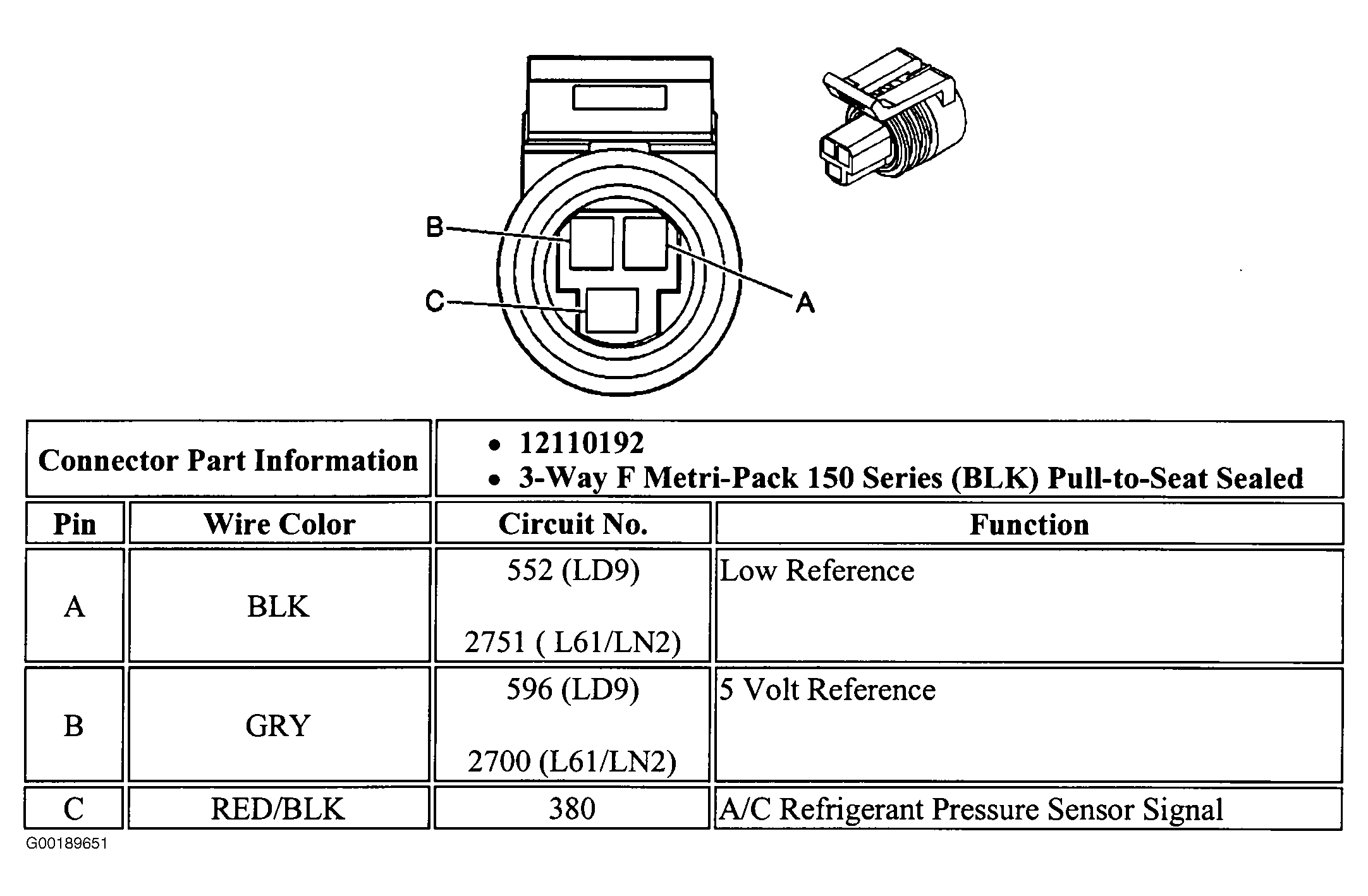

Fig 5: Identifying HVAC Assembly Harness Connector (C3) Terminals

Courtesy of GENERAL MOTORS CORP.
