Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place front door window in the halfway down position.
  2. Remove the run channel weather-strip from the window (1).
  3. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Pontiac)  or Trim Panel Replacement - Side Front Door (Chevrolet) .
  4. Remove the front door water reflector. Refer to Water Deflector Replacement - Front Door .
  5. Remove the nuts which retain the front door window to the window regulator.

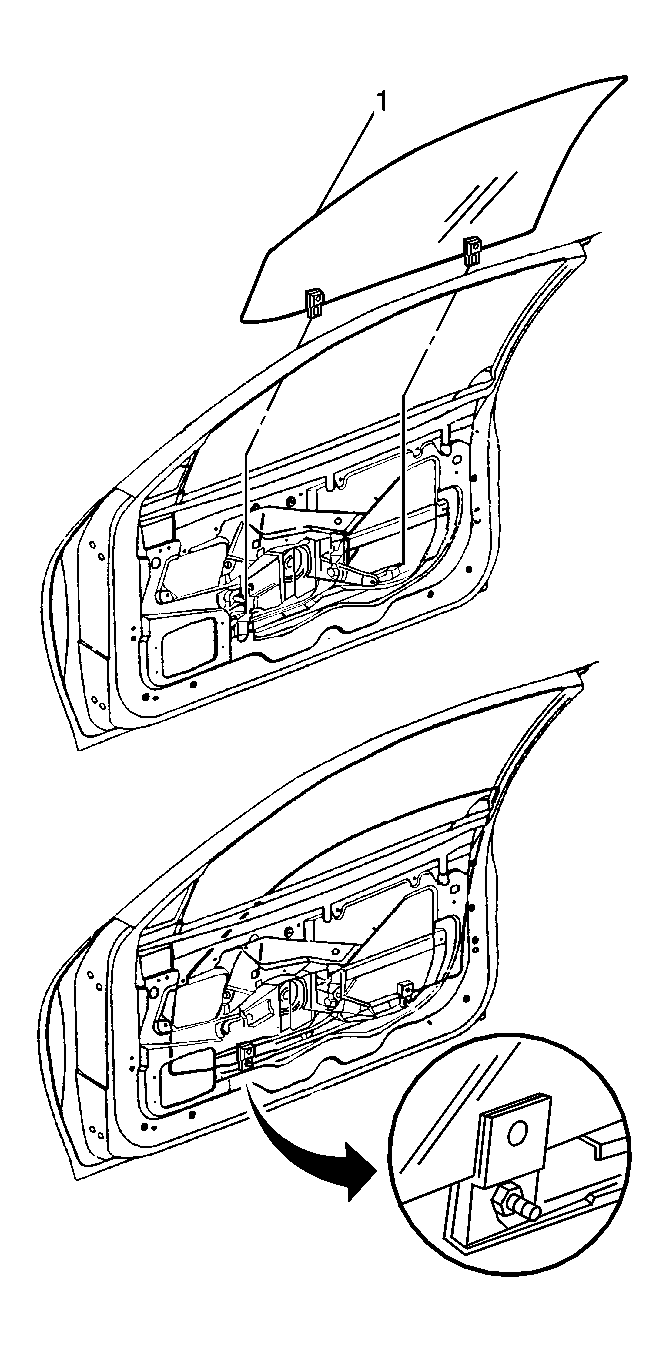

    6. Fig 1: Identifying Front Door Window Retaining Nuts
    GM279021Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door window (1) from the front door.
  7. Remove the sash rivet (1) from the sash.
  8. Remove the sash (2) from the window.
    Fig 2: Removing Front Door Window Sash Rivet
    GM279023Courtesy of GENERAL MOTORS CORP.
