Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Chevrolet)  or Trim Panel Replacement - Side Rear Door (Pontiac) .
  2. Remove the armrest bracket (4). Refer to Armrest Bracket Replacement .
  3. Remove the rear door water deflector (3), starting at the top, pull downward (1).

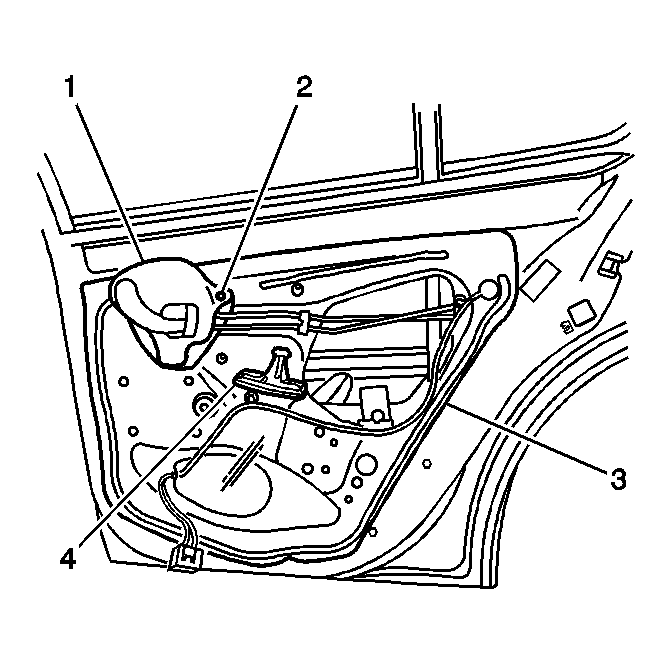

    Fig 1: Identifying Armrest Bracket (Rear Door)
    GM748355Courtesy of GENERAL MOTORS CORP.
  4. Route the electrical connectors through the existing holes in the water deflector.
