Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch, if equipped. Refer to Power Window Switch Replacement .
  2. Remove the window manual regulator handle, if equipped. Refer to Window Regulator Handle Replacement - Door .
  3. Remove the armrest screws (1).

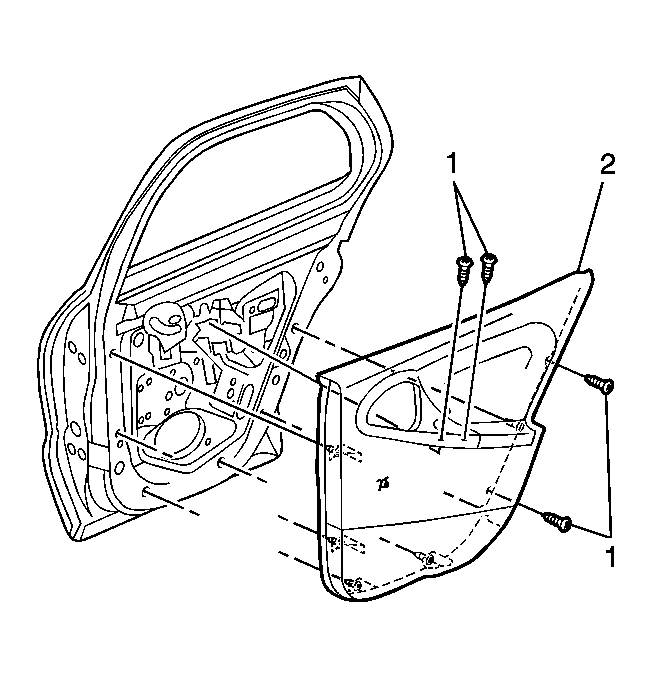

    Fig 1: Removing Armrest Screws
    GM804360Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower trim panel screws.
  5. Using J 38778  and starting at the door bottom, disengage the door trim panel (2) retainers.
  6. Remove the door trim panel (2) from the door by lifting up on the panel to disengage the inner belt weatherstrip.
