Fog Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

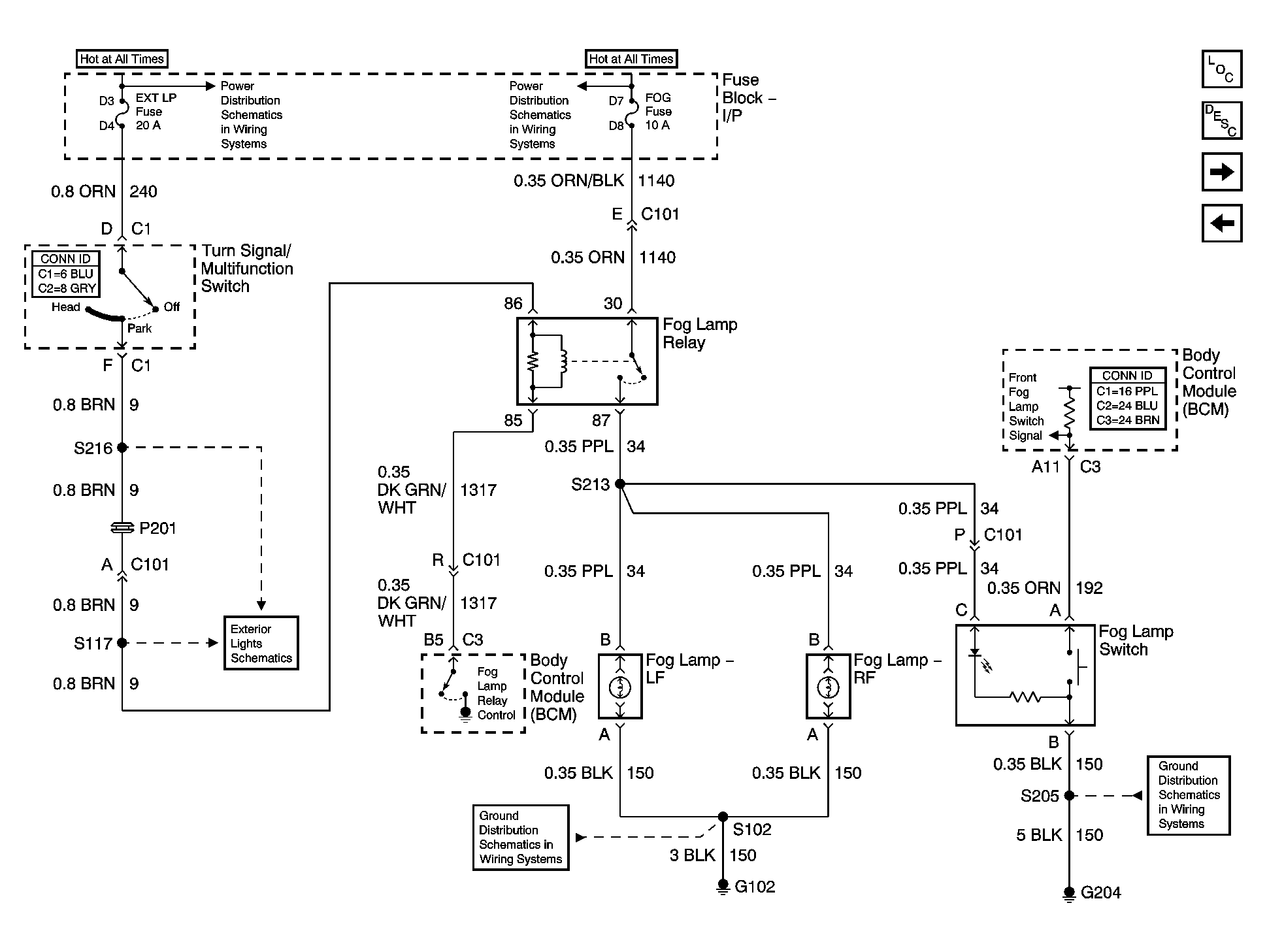

Fig 1: Front Fog Lamps Schematic (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Front Fog Lamps Schematic (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

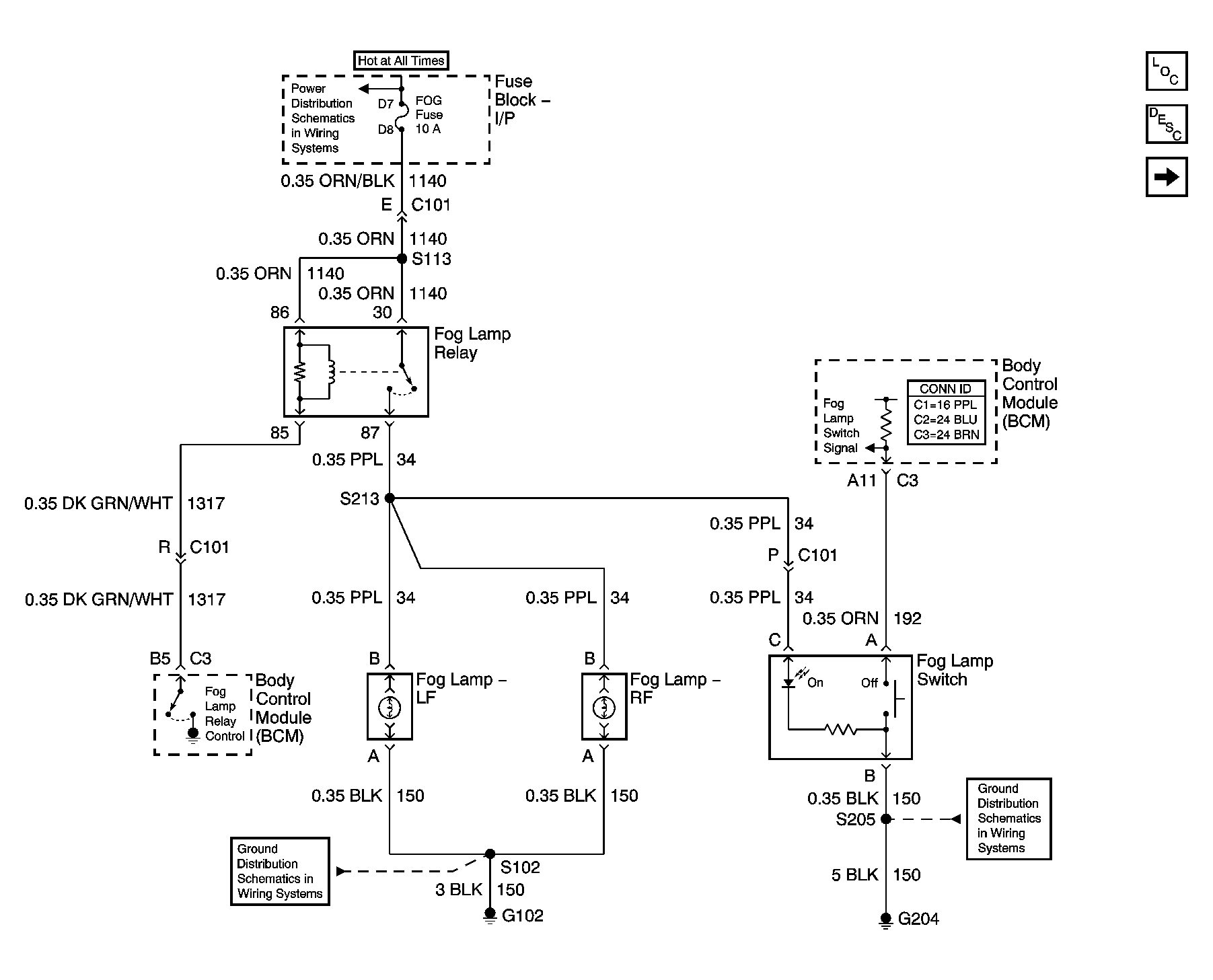

Fig 3: Fog Lamps Schematic - Export

Courtesy of GENERAL MOTORS CORP.
