Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the bolts/screws to retain the park/turn signal lamp assembly to the park/turn lamp.

    Tighten:  Tighten the bolts/screws to 2 N.m (18 lb. in)

    Fig 1: Installing Park/Turn Lamp Retaining Bolts (Pontiac)
    GM840628Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts/screws to retain the grille assembly to the park/turn lamp.

    Tighten:  Tighten the bolts/screws to 2 N.m (18 lb. in)

  3. Install the rivet that secures the grille to the park/turn lamp assembly.
    Fig 2: Installing Park/Turn Lamp Assembly Rivet (Pontiac)
    GM1361881Courtesy of GENERAL MOTORS CORP.
  4. Position the park/turn lamp housing with the grille assembly to the vehicle.
  5. Install the bolt that retains the park/turn signal lamp bracket to the upper tie bar.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in)

  6. Install the screw that retains the grille assembly to the fascia.

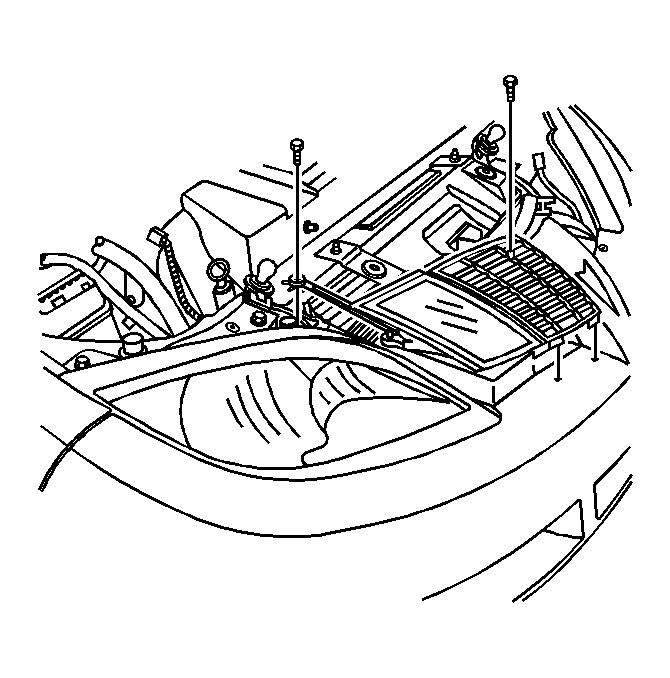

    Fig 3: Installing Grille Assembly Screw (Pontiac)
    GM836798Courtesy of GENERAL MOTORS CORP.
  7. Install the park/turn signal bulb/socket by depressing the lock tab and rotating the bulb/socket clockwise.
    Fig 4: Installing Park/Turn Signal Bulb/Socket (Pontiac)
    GM836796Courtesy of GENERAL MOTORS CORP.
  8. Install the hood close out filler panel. Refer to Hood Close Out Filler Replacement in Body Front End.
  9. Close the hood.
