Starting and Charging Schematics

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

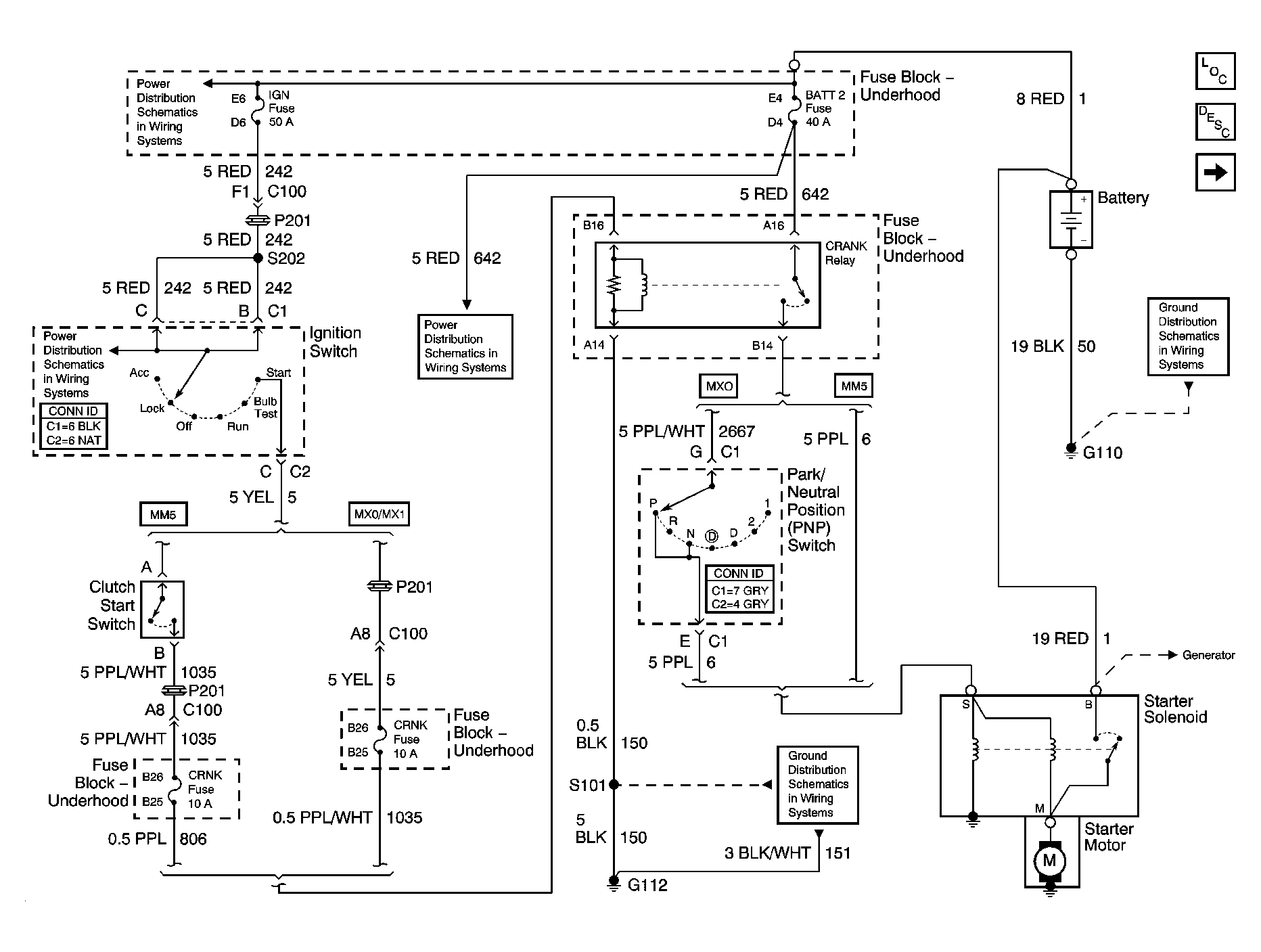

Fig 1: Starting Systems Schematic
GM860392Courtesy of GENERAL MOTORS CORP.

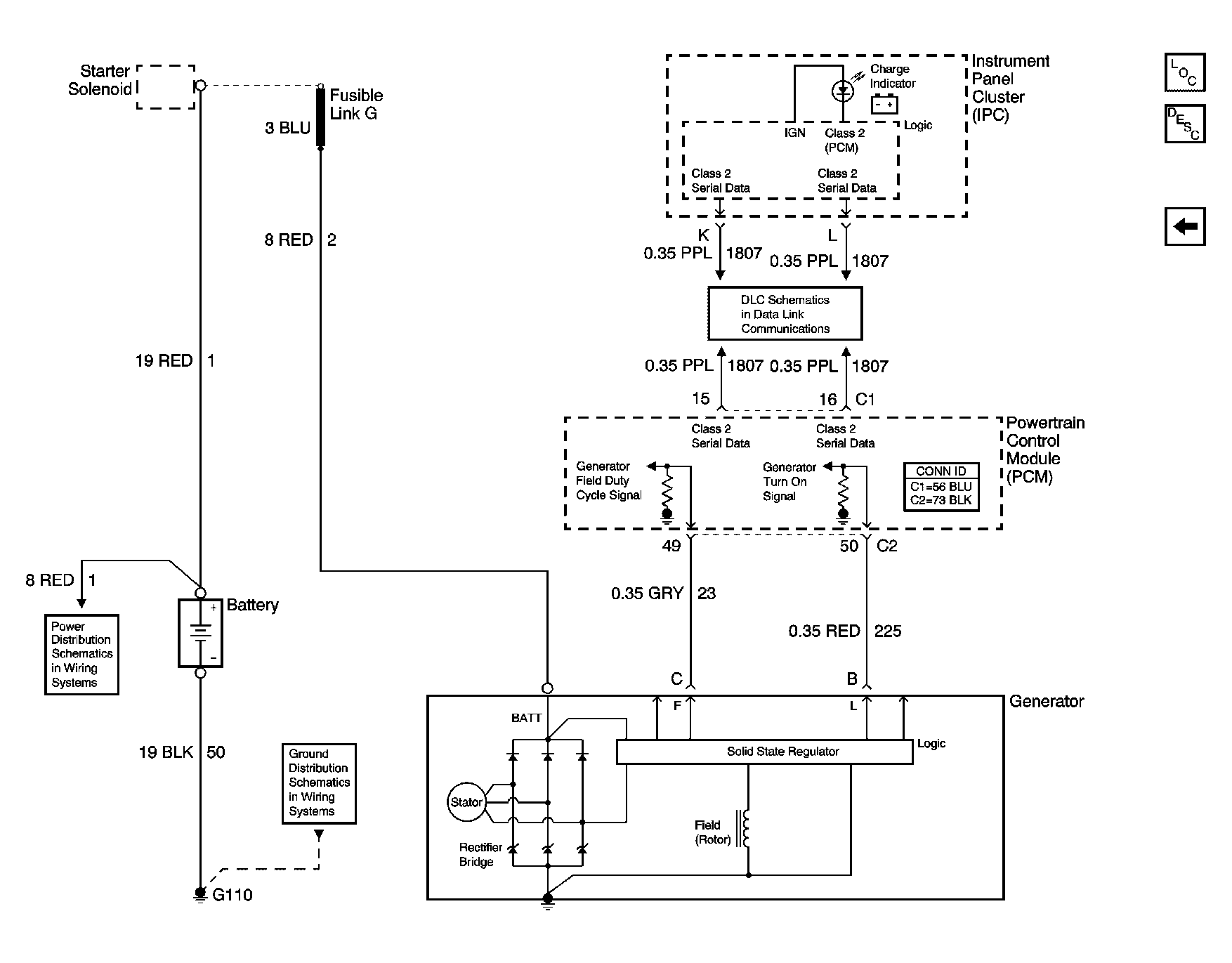

Fig 2: Charging Systems Schematic
GM860395Courtesy of GENERAL MOTORS CORP.
