Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important: Use the J 24319-B in order to separate all the tie rod ends.

Remove the front tire and wheel. Refer to TIRE & WHEEL REMOVAL & INSTALLATION .
Remove the nut (5) from the outer tie rod ball stud (4).
Loosen the jam nut (2).
Use the J 24319-B in order to remove the outer tie rod ball stud from the steering knuckle.

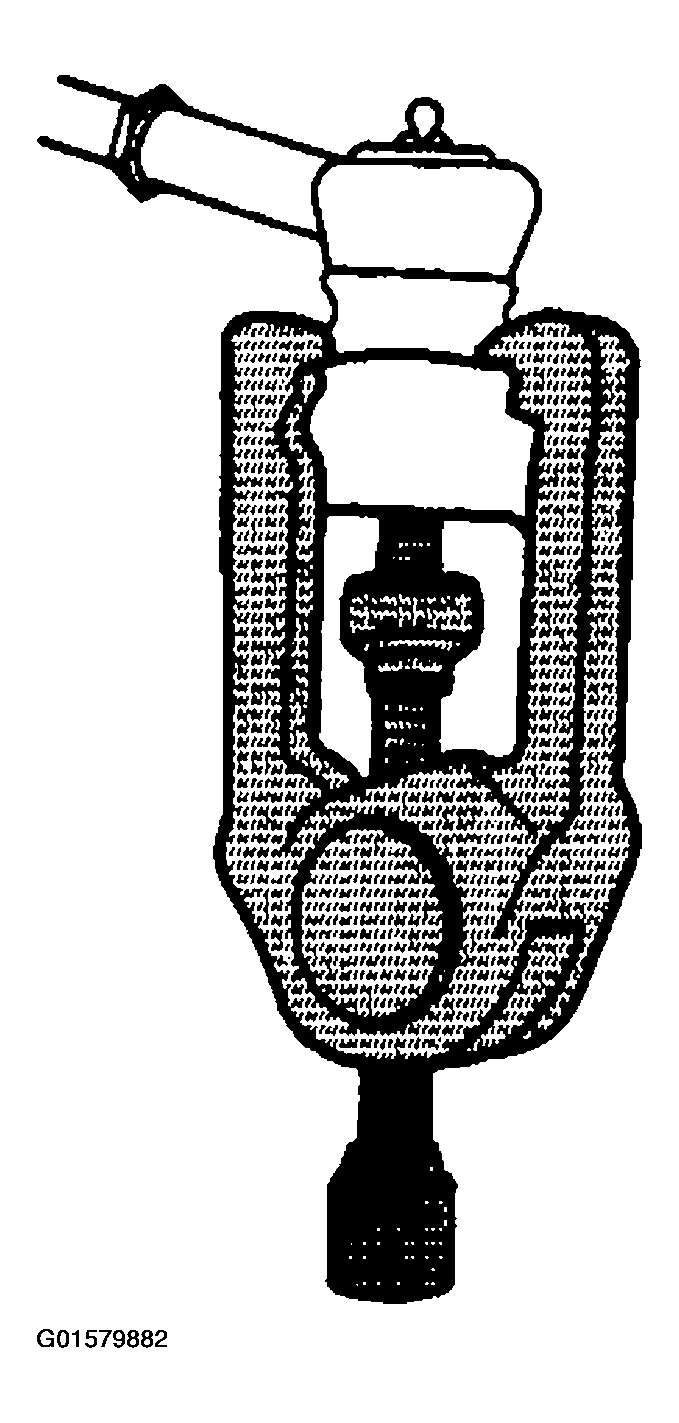

Fig 1: Identifying Tie Rod End Removal Tool
Courtesy of GENERAL MOTORS CORP.
Remove the tie rod end (4) from the shaft (1).

Fig 2: Identifying Outer Tie Rod End
Courtesy of GENERAL MOTORS CORP.
Inspect the inner tie rod shaft (1) for bending or damaged threads.
Clean the tapered surface of the steering knuckle (6).
