Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outer tie rod. Refer to Tie Rod End Replacement - Outer .
  2. Remove the nut (5) from the inner tie rod assembly.

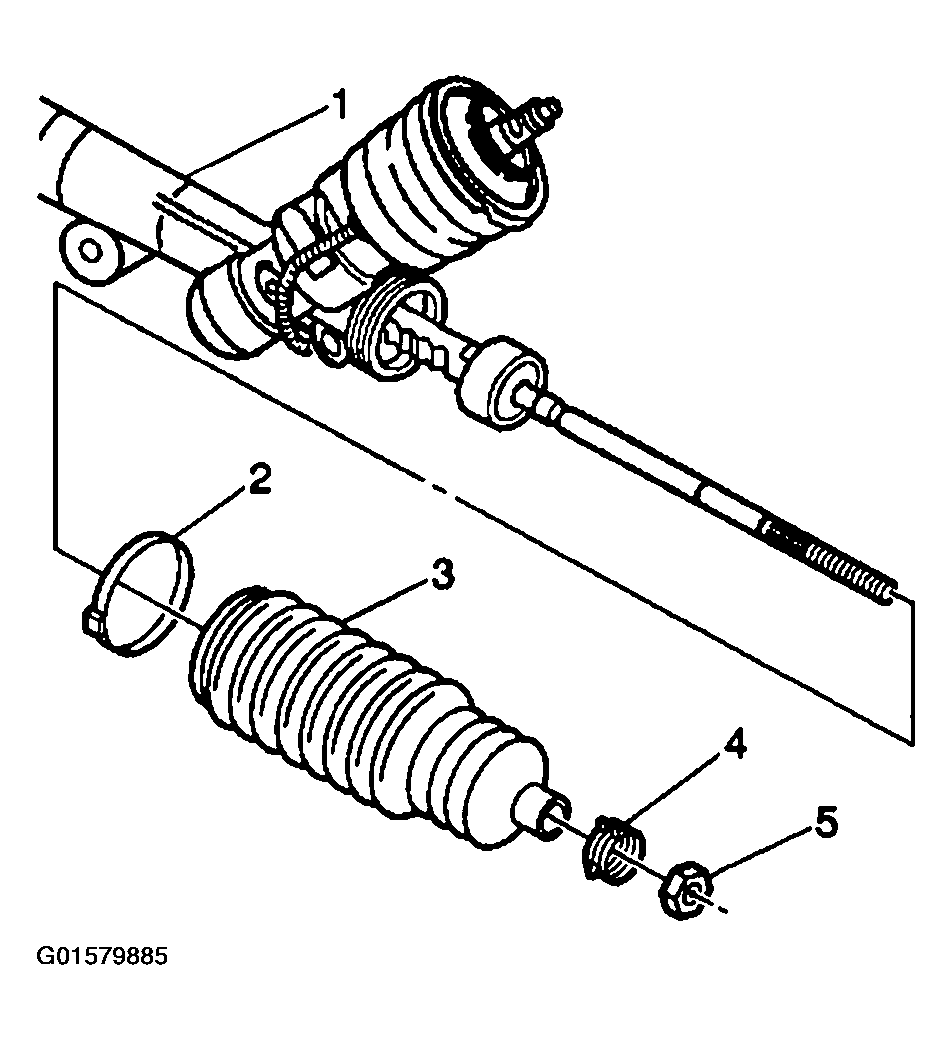

    3. Fig 1: Identifying Rack & Pinion Boot Components
    G01579885Courtesy of GENERAL MOTORS CORP.
  3. Remove the tie rod clamp (4).
  4. Use side cutters to remove the boot clamp (2).
  5. Discard the boot clamp.
  6. Remove the rack and pinion boot (3).
