Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the hydraulic pump (1) on a fixed, flat surface, with the shaft facing upward.

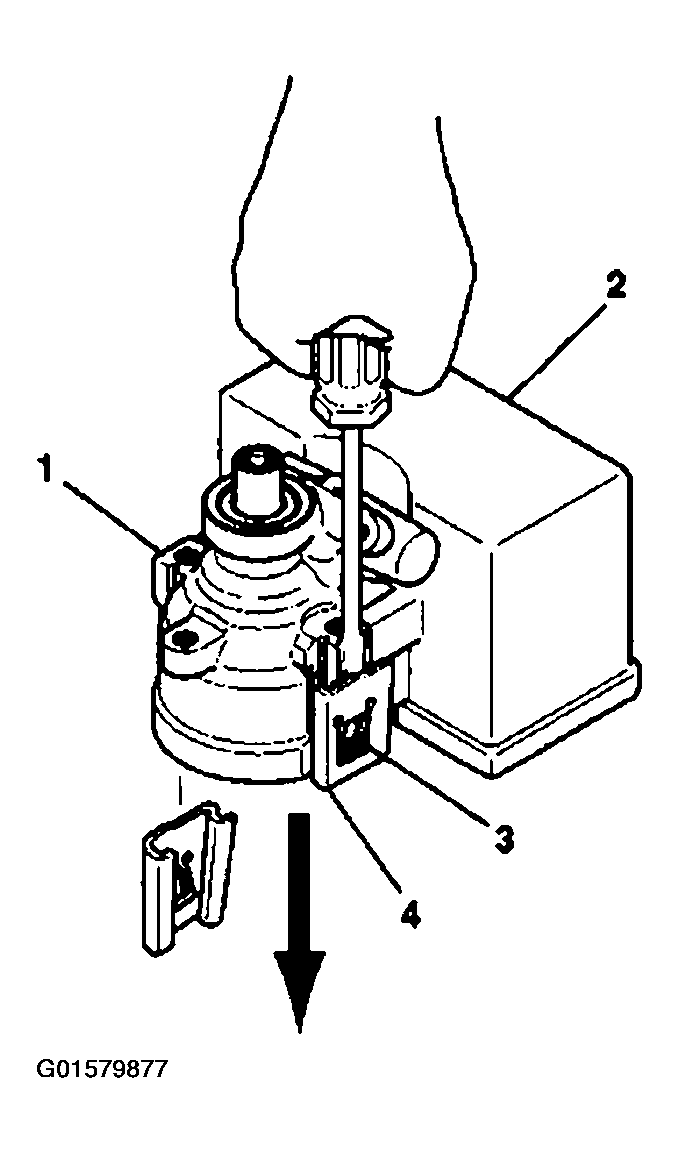

    2. Fig 1: Identifying Hydraulic Pump
    G01579877Courtesy of GENERAL MOTORS CORP.
  2. Insert a screwdriver into the retaining clip tab (3).
  3. Using the screwdriver, force the retaining clip tab (3) outward.
  4. Slide the reservoir clip (4) away from the hydraulic pump assembly (1).
  5. Repeat the above steps to remove the second reservoir clip (4).
  6. Remove the reservoir (2) from the hydraulic pump housing (1).
  7. Remove the O-ring seal from the neck of the reservoir (2) or inside the hydraulic pump housing (1). Discard the O-ring seal.
