Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt from the power steering pump. Refer to DRIVE BELT REPLACEMENT .
  2. Remove the power steering hoses from the power steering pump. Refer to the following procedures:
  3. Remove the power steering pump mounting bolts from the power steering pump.

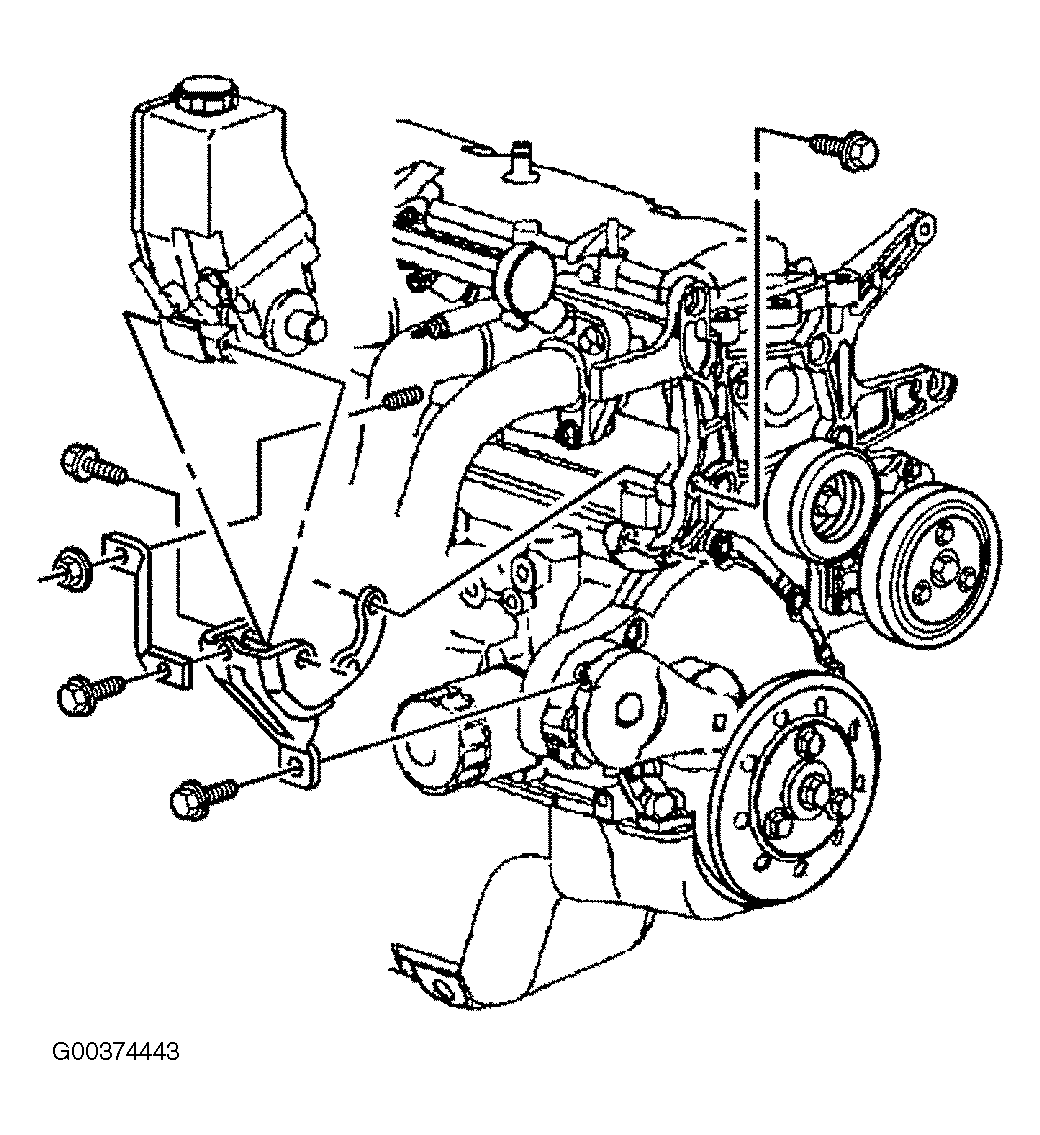

    4. Fig 1: Identifying Power Steering Pump Mounting Bolts
    G00374443Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering pump from the engine.
