Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper air cleaner and duct.
  2. Remove the Evaporative Emission Canister Purge Valve if equipped. Refer to EVAP CANISTER PURGE VALVE .
  3. Remove the power steering hoses from the power steering pump. Refer to the following procedures:
  4. Remove the power steering pump mounting bolts (2).

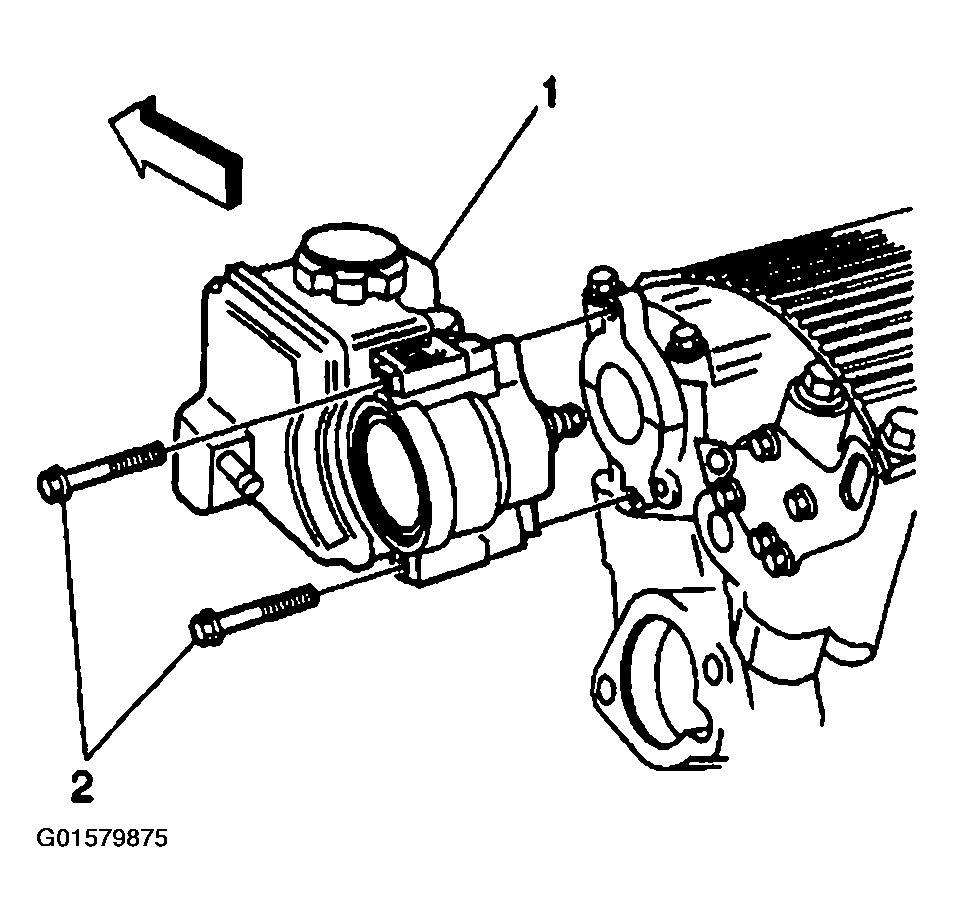

    5. Fig 1: Identifying Power Steering Pump
    G01579875Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump (1) from the engine.
