Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pump (1) to the engine.

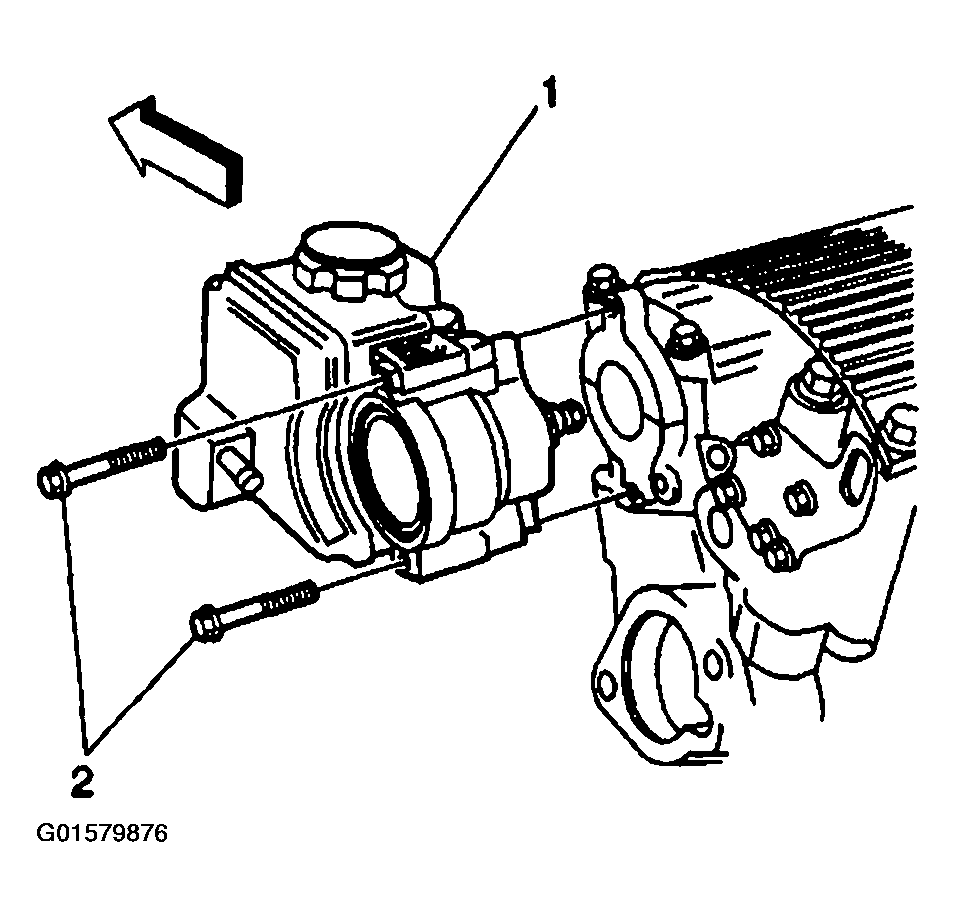

    Fig 1: Identifying Power Steering Pump
    G01579876Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering pump mounting bolts (2). Tighten the power steering pump bolts (2) to 26 N.m (19 lb ft).
  3. Install the power steering hoses to the power steering pump (1). Refer to the following procedures:
  4. Install the Evaporative Emission Canister Purge Valve if equipped. Refer to EVAP CANISTER PURGE VALVE .
  5. Install the upper air cleaner and duct.
  6. Fill the power steering pump with power steering fluid. Refer to Checking and Adding Power Steering Fluid .
  7. Bleed the air from the power steering system. Refer to Bleeding the Power Steering System .
