Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pressure hose (2) from the power steering pump (1).

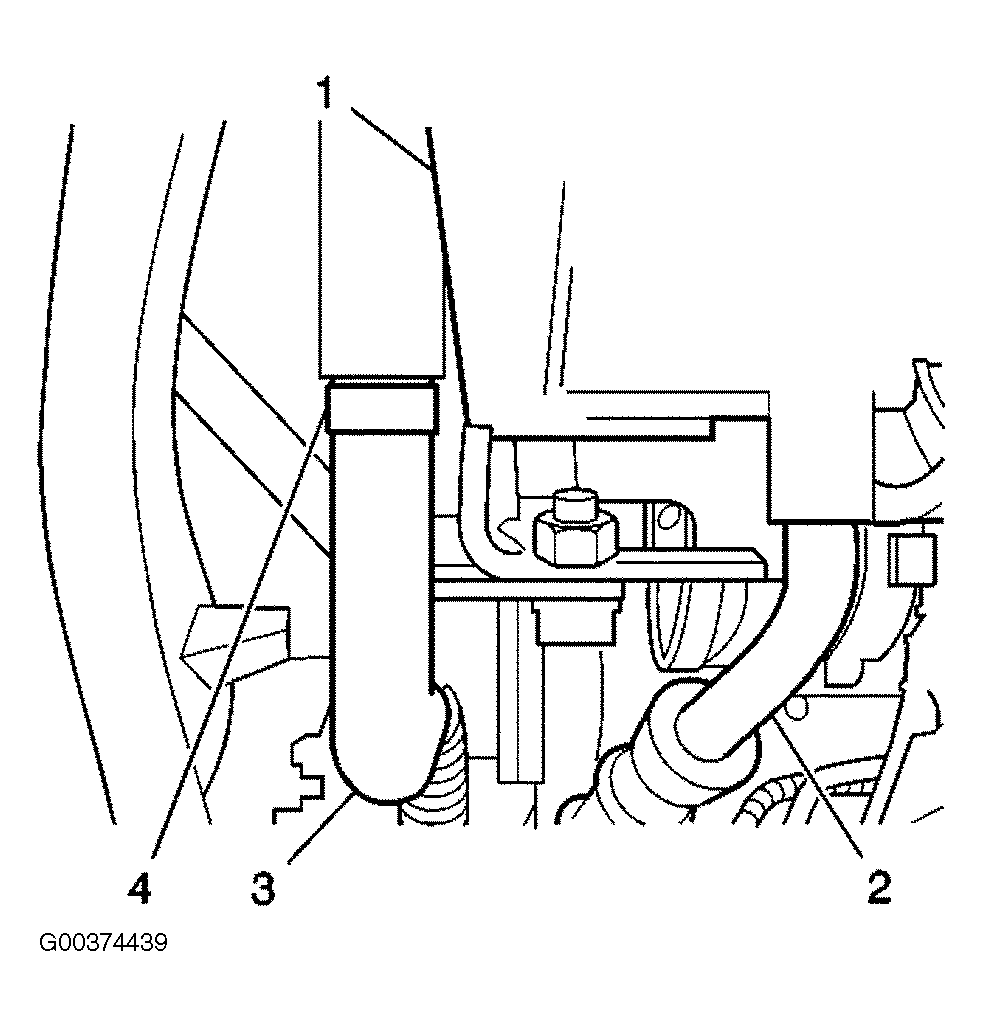

    2. Fig 1: Identifying Power Steering Pressure Hose At Power Steering Pump
    G00374439Courtesy of GENERAL MOTORS CORP.
  2. Raise the vehicle on a hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the front exhaust pipe, automatic transmission only. Refer to INTERMEDIATE PIPE REPLACEMENT (2.2L) or INTERMEDIATE PIPE REPLACEMENT (2.4L) .
  4. Remove the power steering pressure hose (1) from the power steering gear (3).

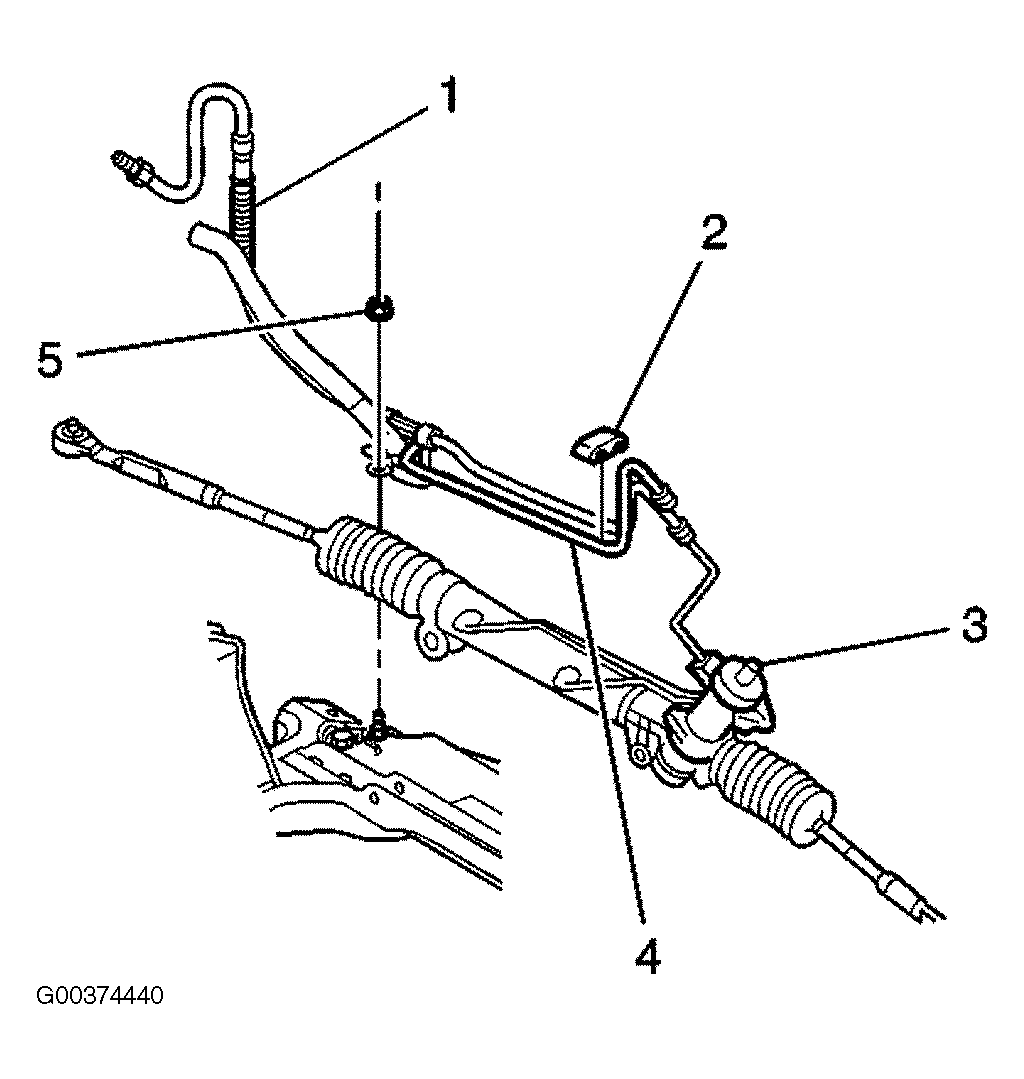

    5. Fig 2: Identifying Power Steering Pressure Hose At Power Steering Gear
    G00374440Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering hose retainer (2).
  6. Remove the power steering pressure hose (1) from the vehicle.
