Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the front exhaust pipe, automatic transmission only. Refer to INTERMEDIATE PIPE REPLACEMENT (2.2L) or INTERMEDIATE PIPE REPLACEMENT (2.4L) .
  3. Remove the power steering pressure hose (1) from the power steering gear (3).

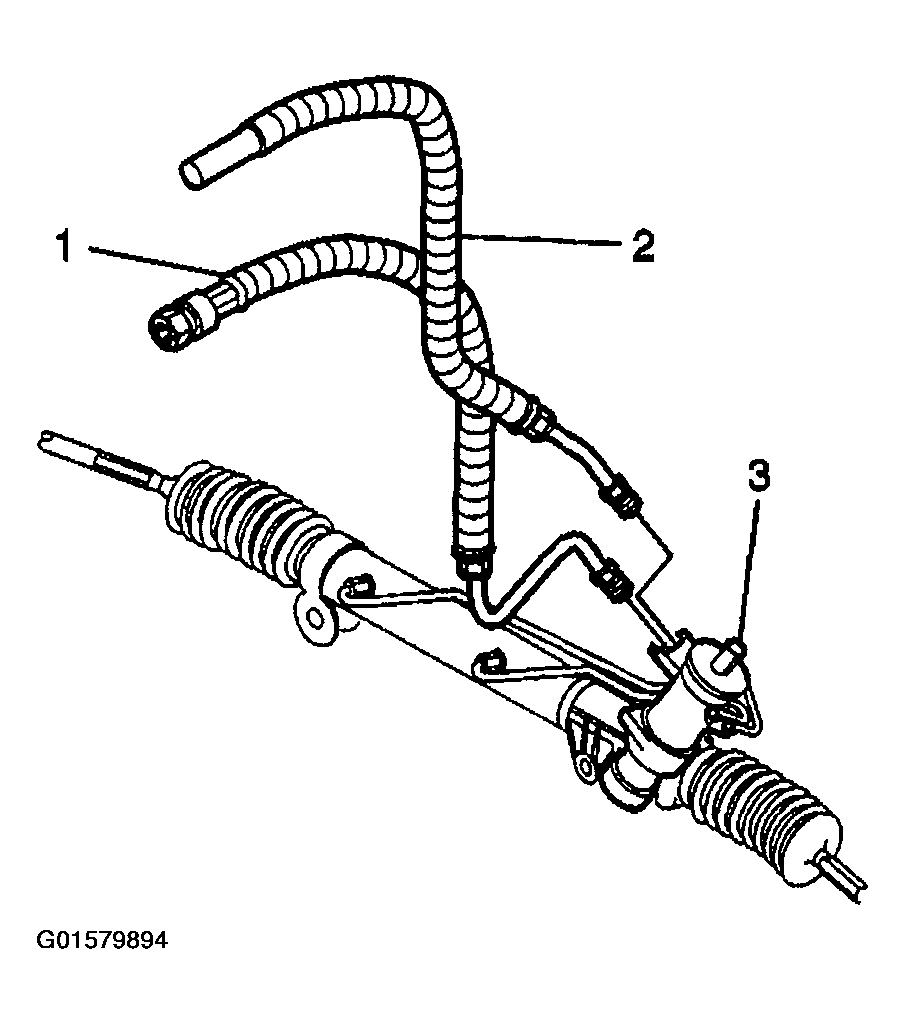

    4. Fig 1: Identifying Power Steering Pressure Hose At Power Steering Gear
    G01579894Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
  5. Remove the battery. Remove the upper air cleaner assembly.
  6. Remove the power steering pressure hose (3) from the power steering pump pipe (4).

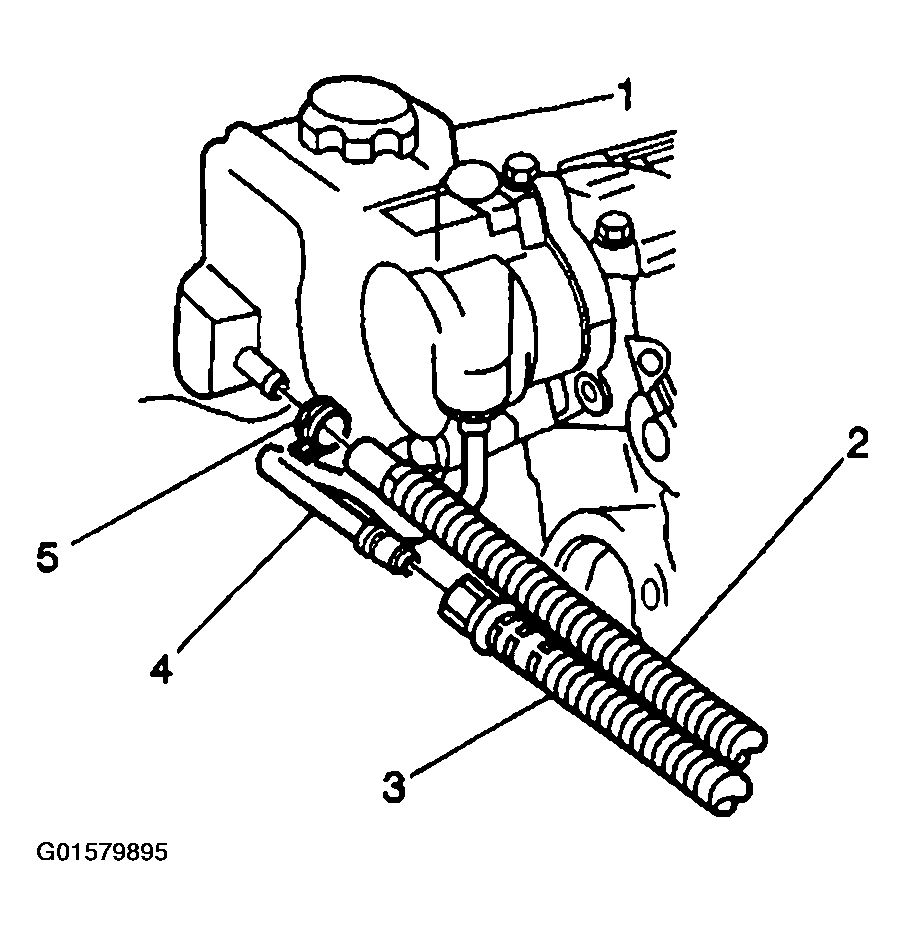

    7. Fig 2: Identifying Power Steering Pressure Hose At Power Steering Pump Pipe
    G01579895Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering pressure hose (3) from the vehicle.
