Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Install the power steering pressure hose (3) to the vehicle.

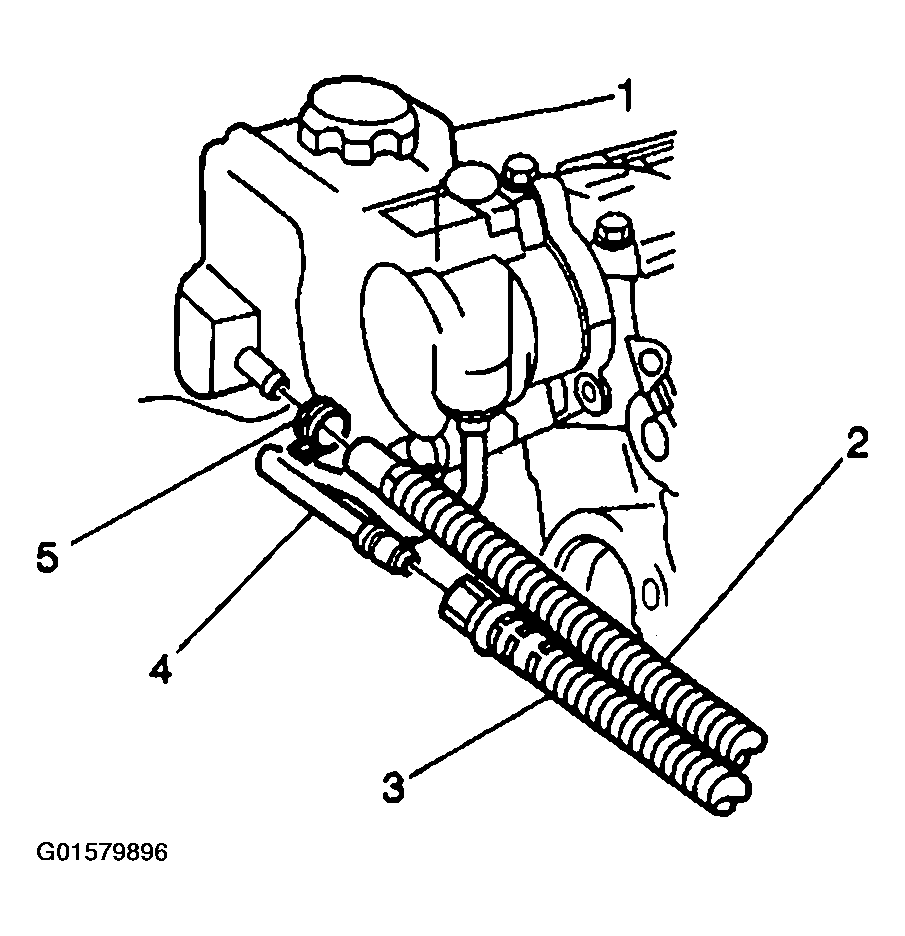

    Fig 1: Identifying Power Steering Pressure Hose At Power Steering Pump Pipe
    G01579896Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering pressure hose (3) to the power steering pump pipe (4). Tighten the fitting to 27 N.m (20 lb ft).
  3. Install the upper air cleaner assembly following the procedure below:
    • Install battery. Tighten battery hold down retainer bolt to 18 N.m (13 lb ft). Tighten battery cable bolts to 16 N.m (12 lb ft).
    • Install the upper air cleaner assembly. Tighten air cleaner outlet duct clamps to 5 N.m (44 lb in).
  4. Raise the vehicle on a hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  5. Install the front exhaust pipe, if removed. Refer to INTERMEDIATE PIPE REPLACEMENT (2.2L) or INTERMEDIATE PIPE REPLACEMENT (2.4L) .
  6. Install the power steering pressure hose (1) to the power steering gear (3). Tighten the fitting to 27 N.m (20 lb ft).

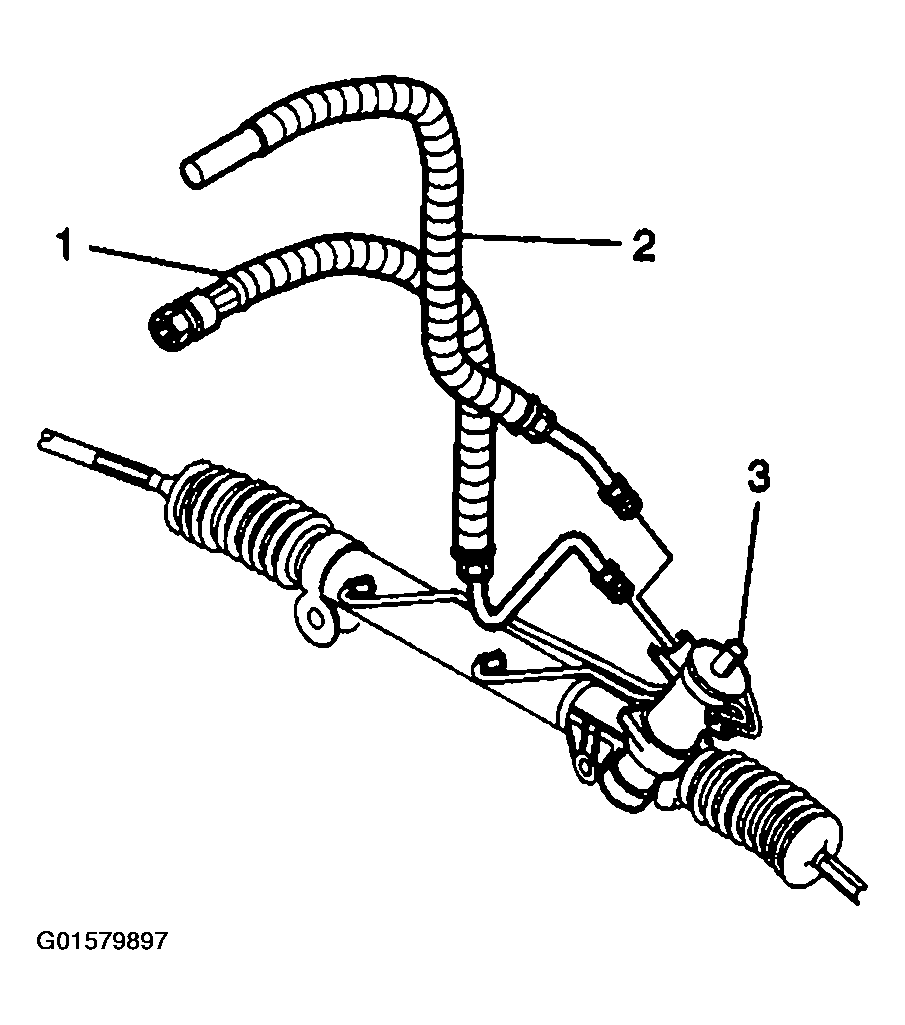

    Fig 2: Identifying Power Steering Pressure Hose At Power Steering Gear
    G01579897Courtesy of GENERAL MOTORS CORP.
  7. Lower the vehicle.
  8. Bleed the power steering system. Refer to Bleeding the Power Steering System .
