Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the lower pinch bolt from the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT .
  3. Remove the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT .
  4. Remove the power steering gear mounting bolts (3).

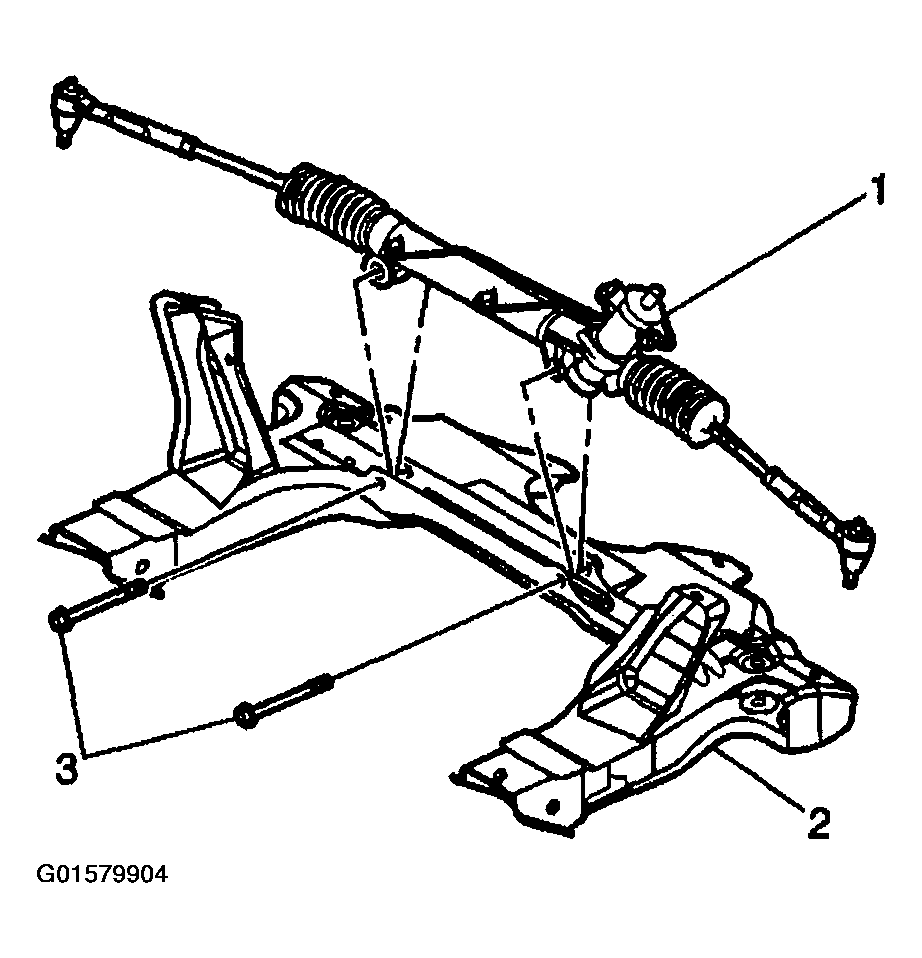

    5. Fig 1: Identifying Power Steering Gear
    G01579904Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering gear (1) from the front suspension crossmember (2).
