Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering gear (1) to the front suspension crossmember (2).

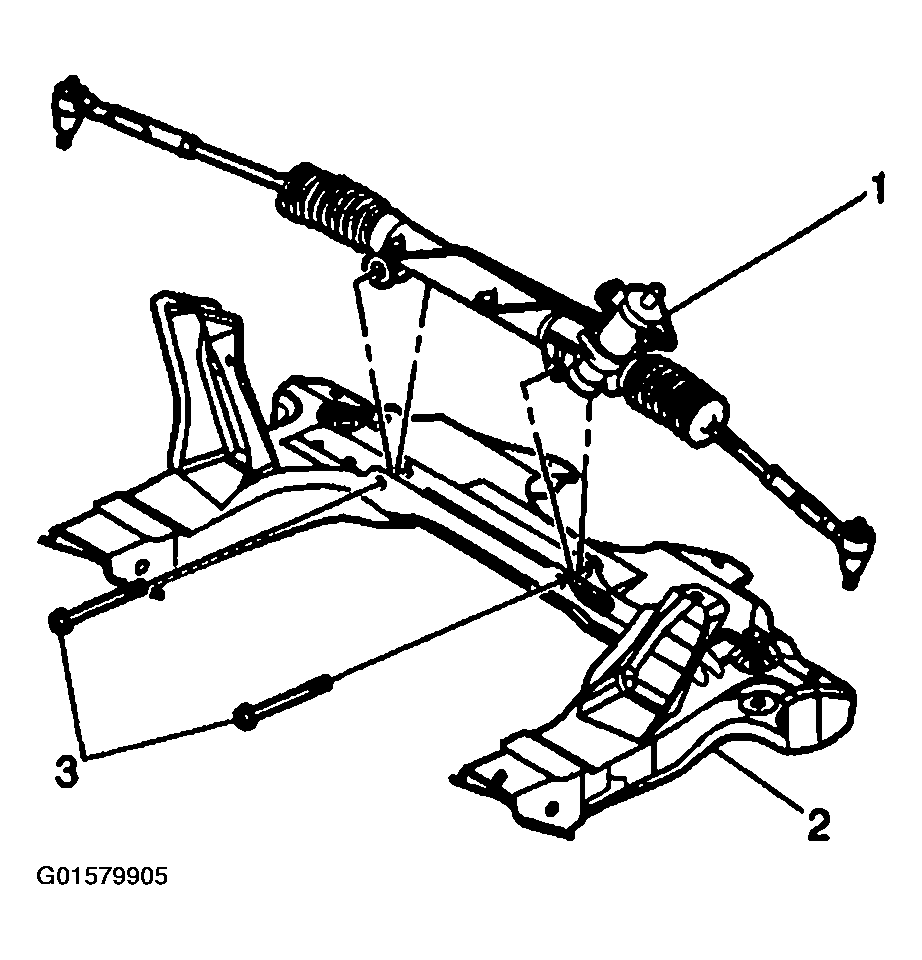

    Fig 1: Identifying Power Steering Gear
    G01579905Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering gear mounting bolts (3). Tighten the bolts to 120 N.m (89 lb ft).
  3. Install the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT .
  4. Install the lower pinch bolt to the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT .
  5. Lower the vehicle.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  7. Align the front wheels. Refer to in MEASURING WHEEL ALIGNMENT .
