Power Steering Pump Disassembled View (CB Series Pump)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

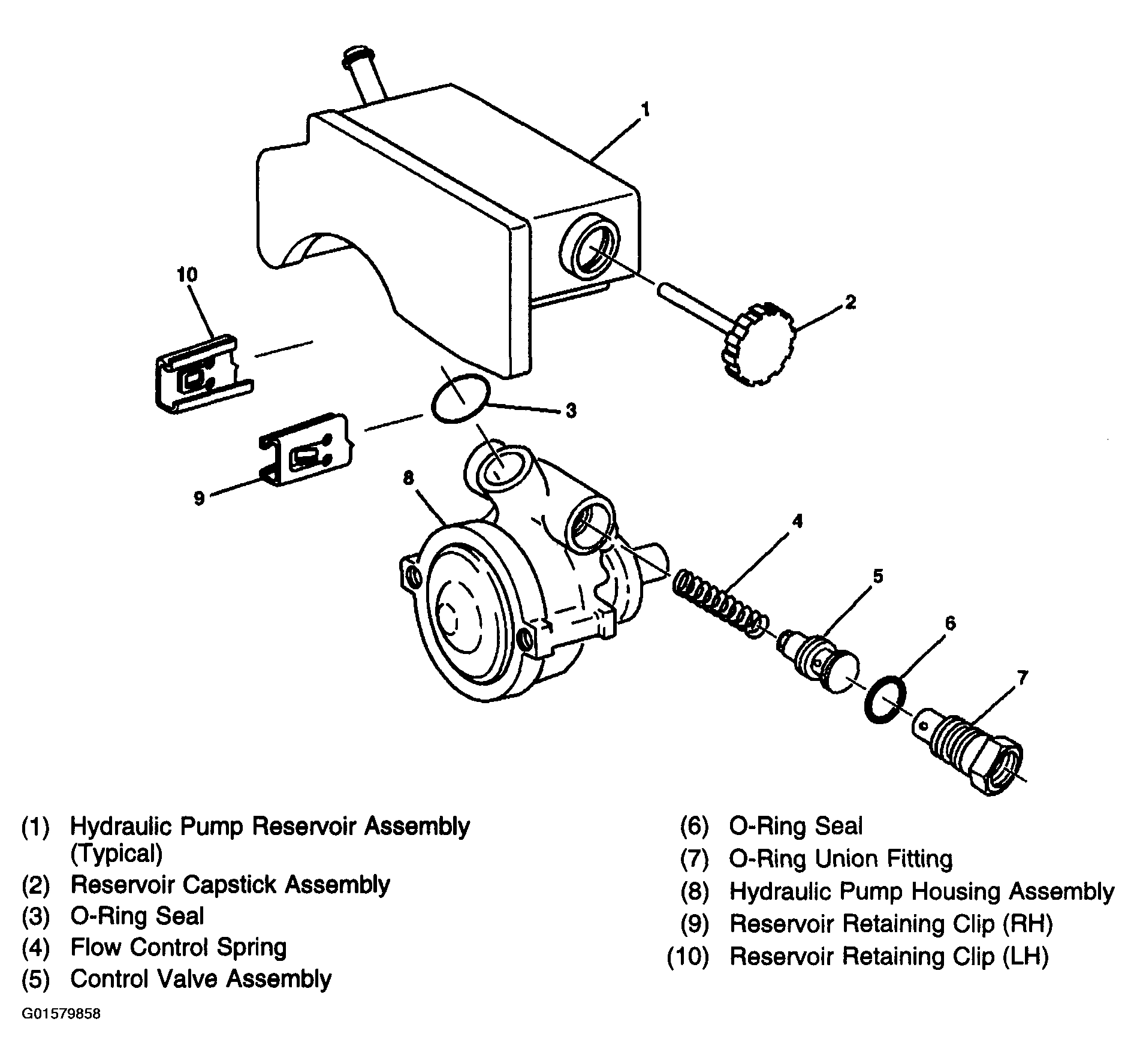

Fig 1: Power Steering Pump Assembly (CB Series) Disassembled View
G01579858Courtesy of GENERAL MOTORS CORP.
