Power Steering Gear Disassembled View (Rack and Pinion)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

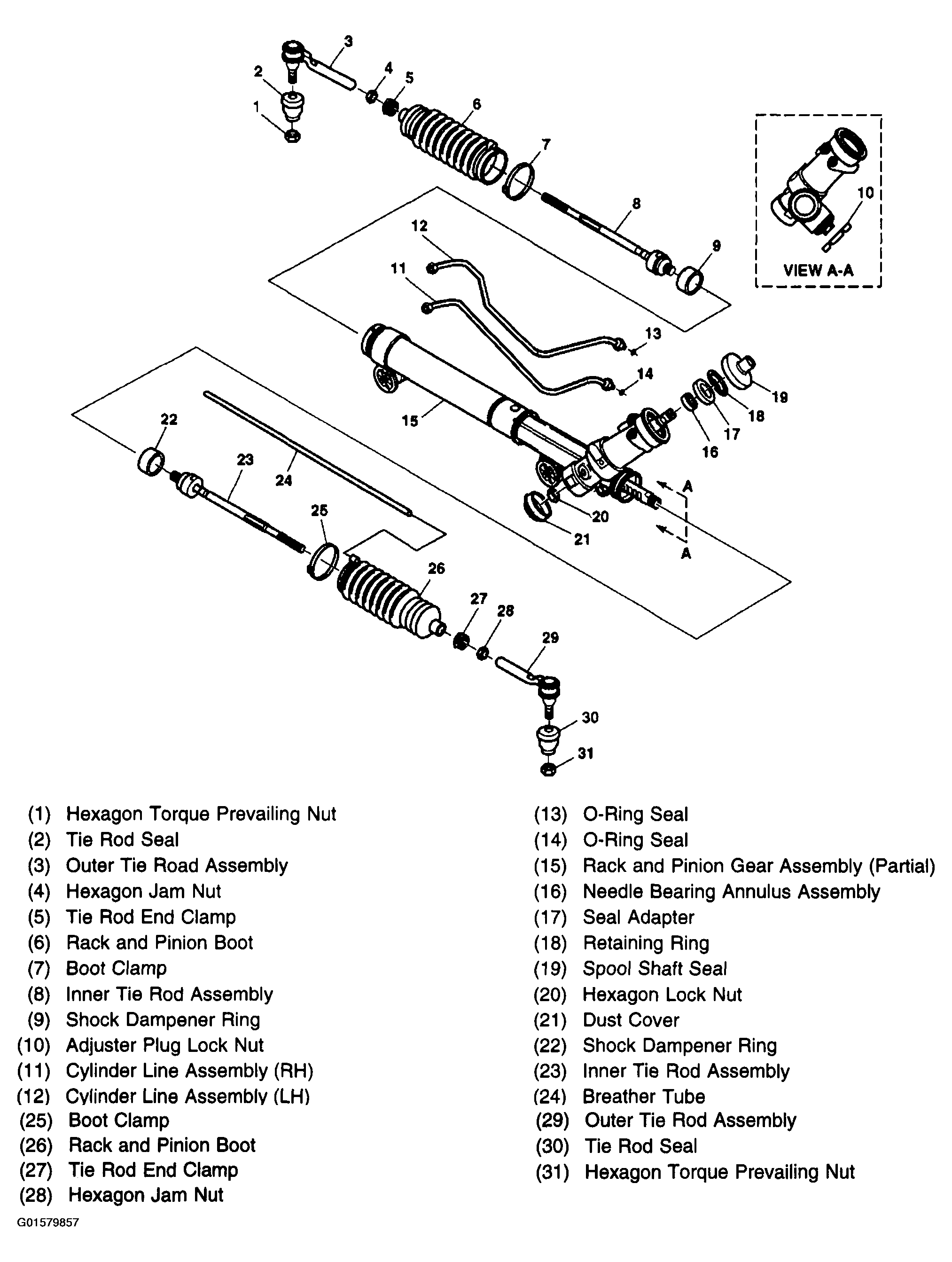

Fig 1: Power Steering Gear (Rack & Pinion) Disassembled View
G01579857Courtesy of GENERAL MOTORS CORP.
