Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Front .
  4. Remove the wheel stud (1) from the hub and bearing assembly (2) using the J 43631.

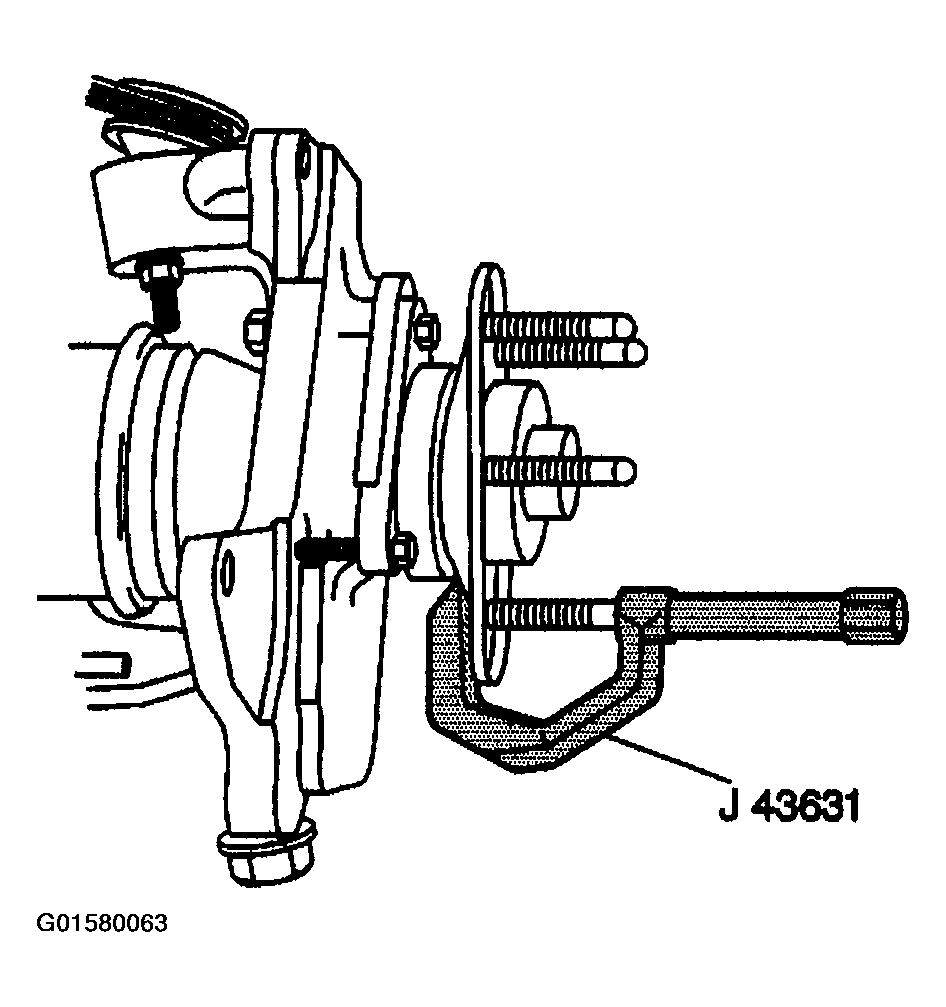

    5. Fig 1: Identifying Wheel Stud Removal Tool
    G01580063Courtesy of GENERAL MOTORS CORP.
  5. Discard the stud.
