Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the replacement stud into the hub and bearing assembly (2).

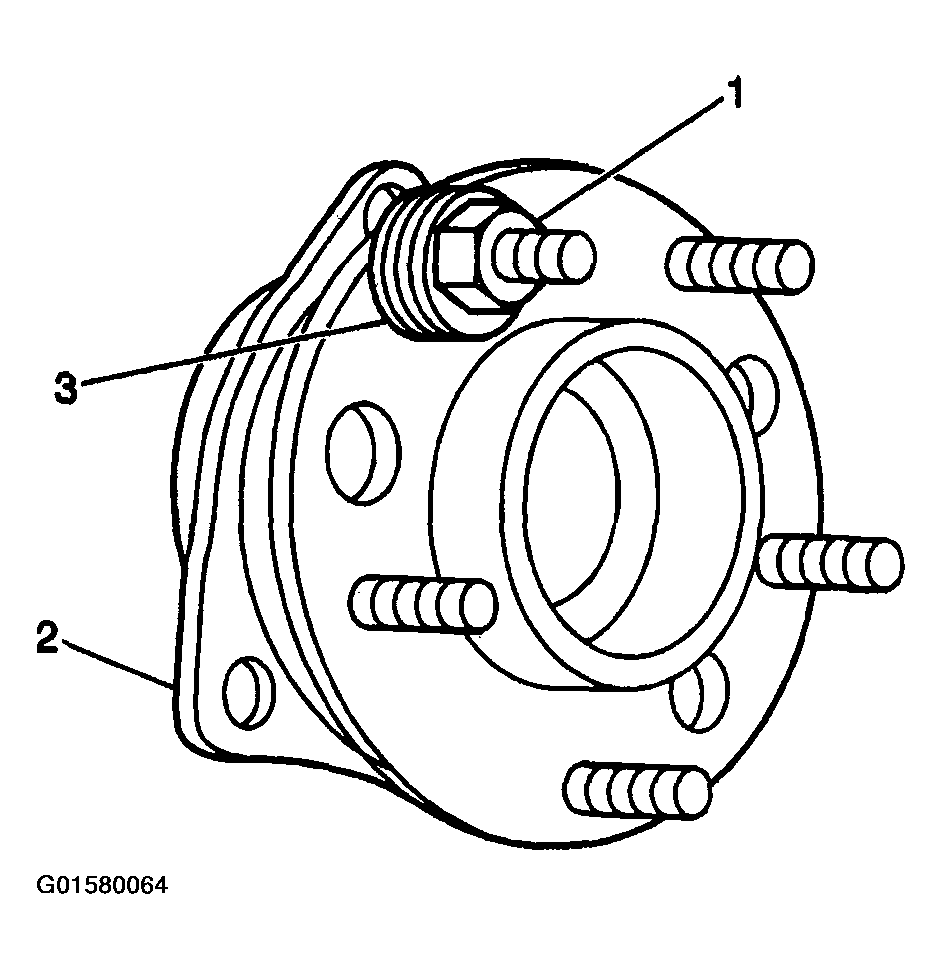

    2. Fig 1: Installing Wheel Studs
    G01580064Courtesy of GENERAL MOTORS CORP.
  2. Add enough washers in order to draw the stud into the hub (2).
  3. Install the wheel nut (1) with the flat side against the washers (3).
  4. Tighten the wheel nut (1) until the wheel stud is fully seated against the hub flange.
  5. Back off the wheel nut (1) and remove the washers (3).
  6. Install the hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Front .
  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.
