Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the drive axle nut.
  4. Remove the brake rotor. Refer to BRAKE ROTOR .
  5. Remove the mounting bolts (1) from the hub and bearing assembly (3).

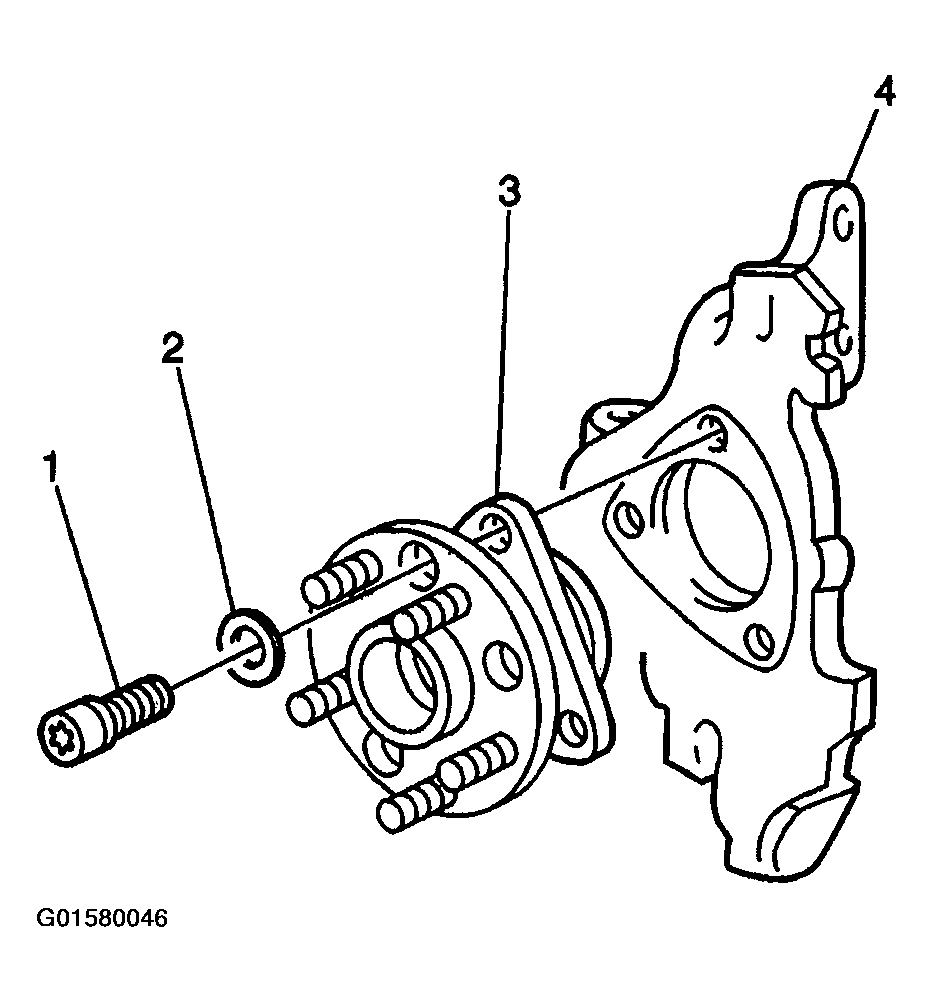

    6. Fig 1: Identifying Front Wheel Bearing/Hub Bolts
    G01580046Courtesy of GENERAL MOTORS CORP.
  6. Remove the hub and bearing assembly (1) from the steering knuckle (2) and drive axle shaft.

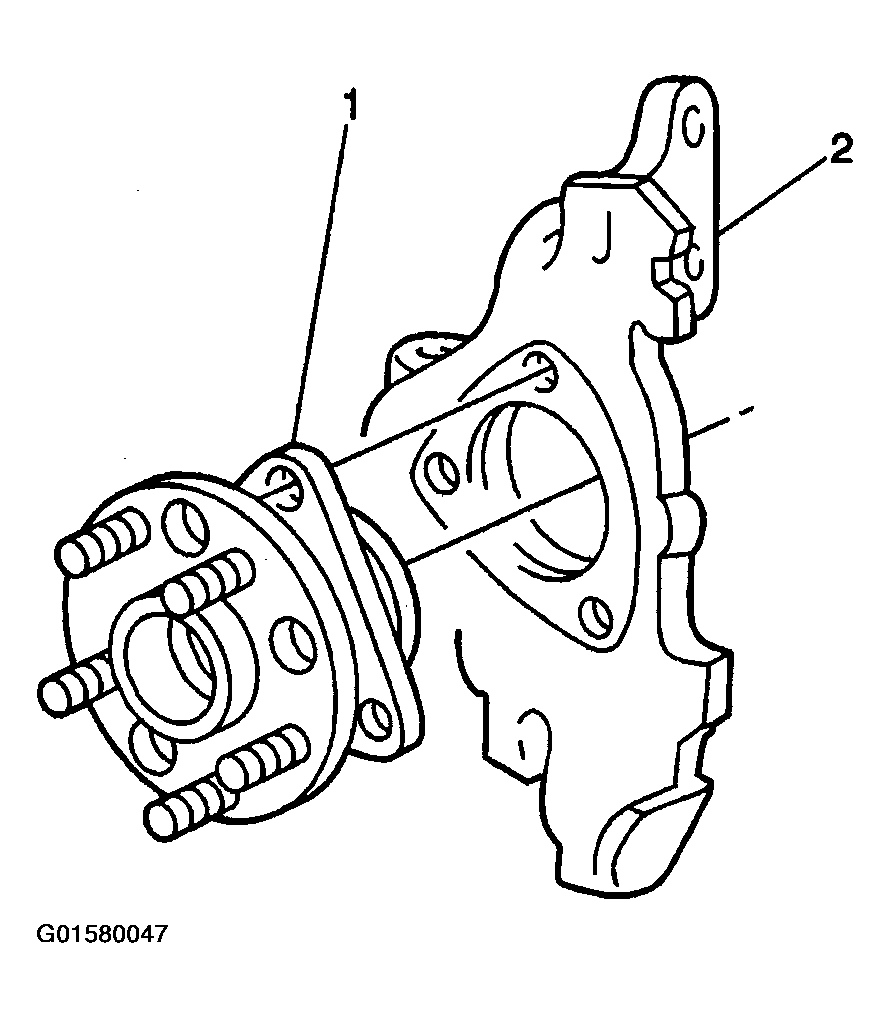

Fig 2: Identifying Front Wheel Bearing/Hub
G01580047Courtesy of GENERAL MOTORS CORP.
