Strut and Knuckle Scribing

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Scribing Strut and Knuckle (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

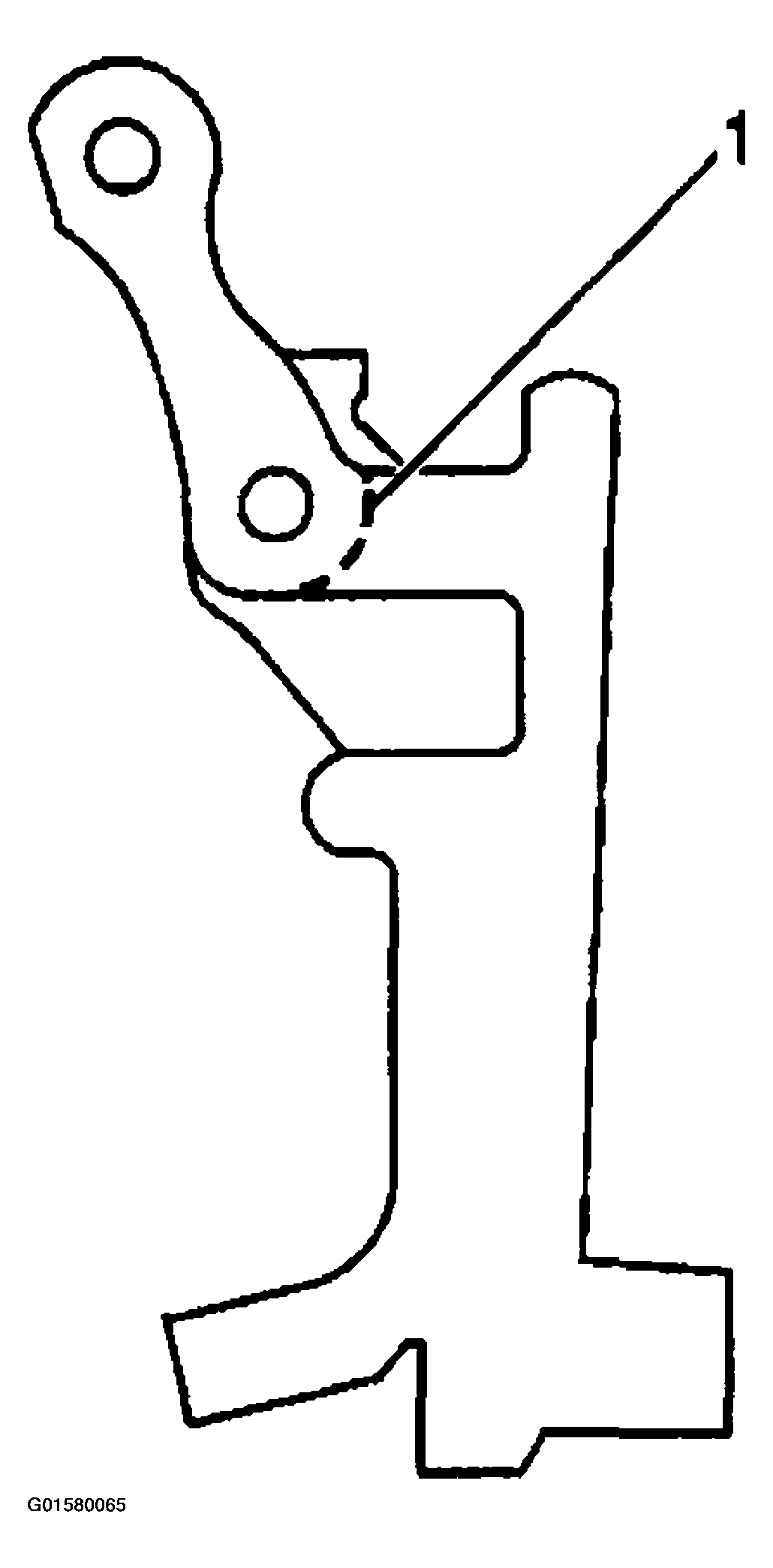

Scribe the knuckle along the lower outboard strut radius shown by the dotted line (1). Use a sharp tool.

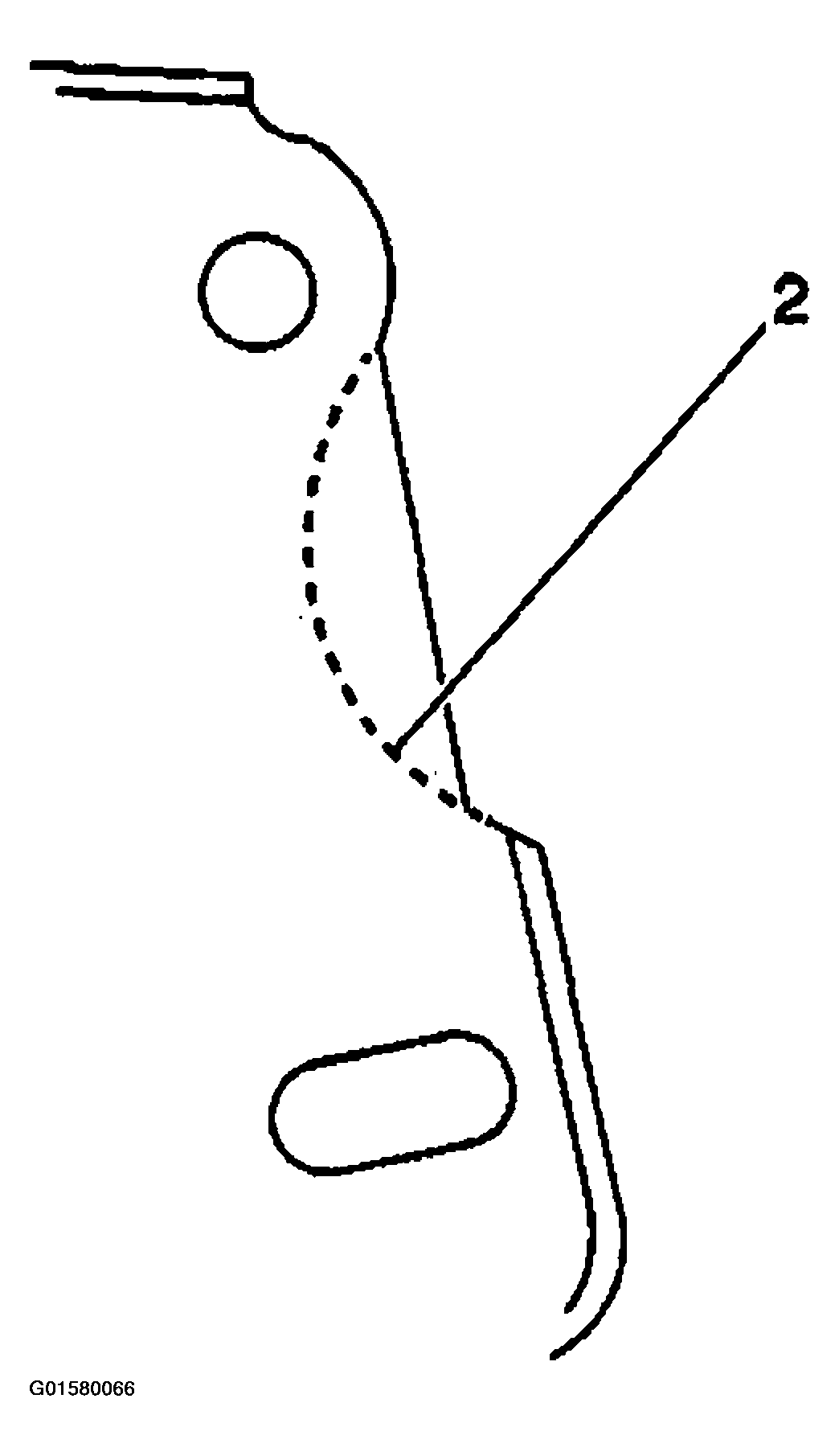

Scribe the strut flange on the inboard side along the curve of the knuckle shown by the dotted line (2).

Fig 2: Identifying Scribing Strut and Knuckle (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

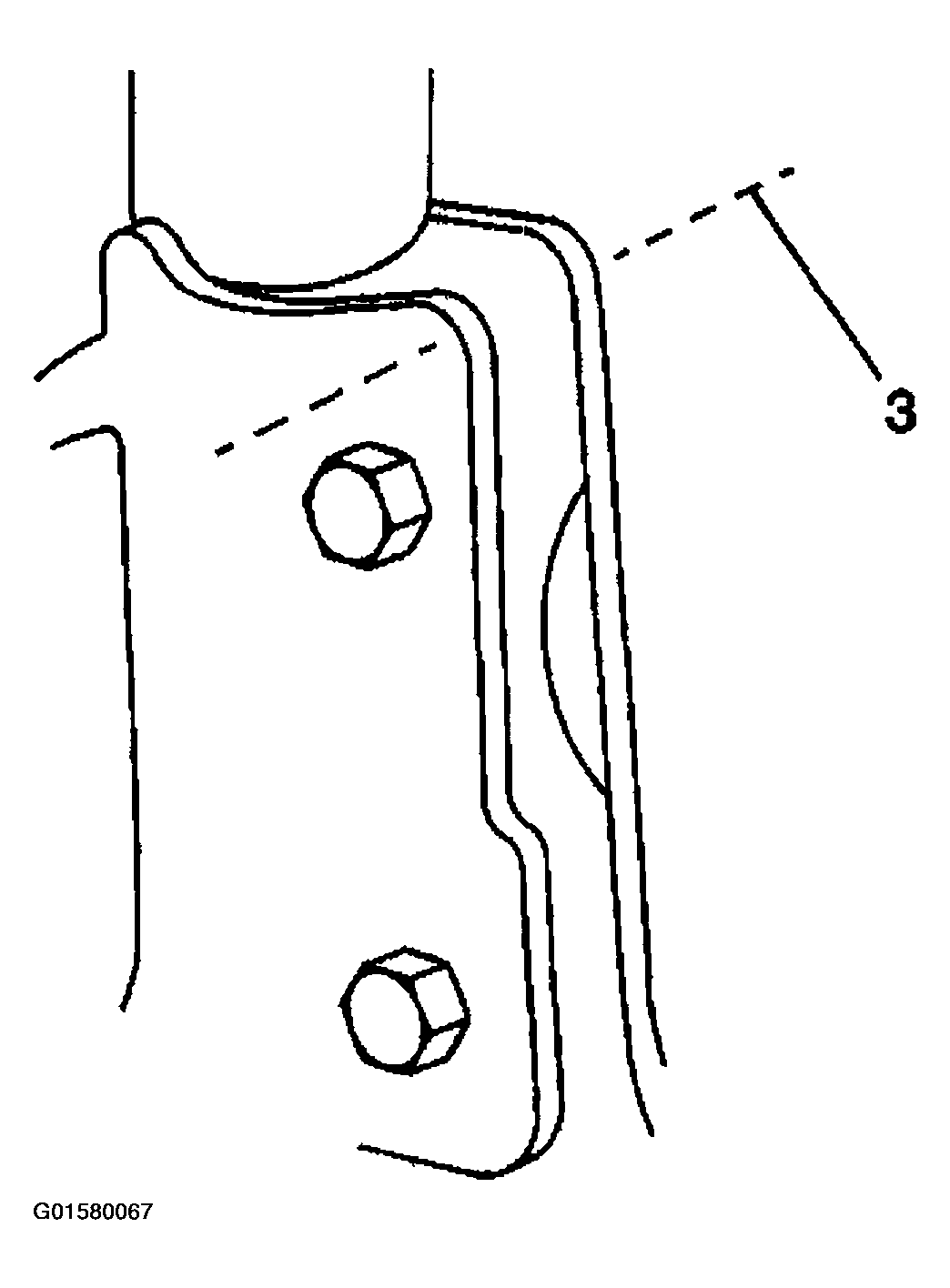

Make a scribe, mark across the strut/knuckle interface (3).

Fig 3: Identifying Scribing Strut and Knuckle (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Match the marks to the components during reassembly.
