Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the tie rod from the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER .
  4. If the vehicle is equipped with ABS, disconnect the ABS electrical connector.
  5. Remove the hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Front .
  6. Remove the bolts (3) and nuts (6) that attach the steering knuckle (4) to the strut (2).

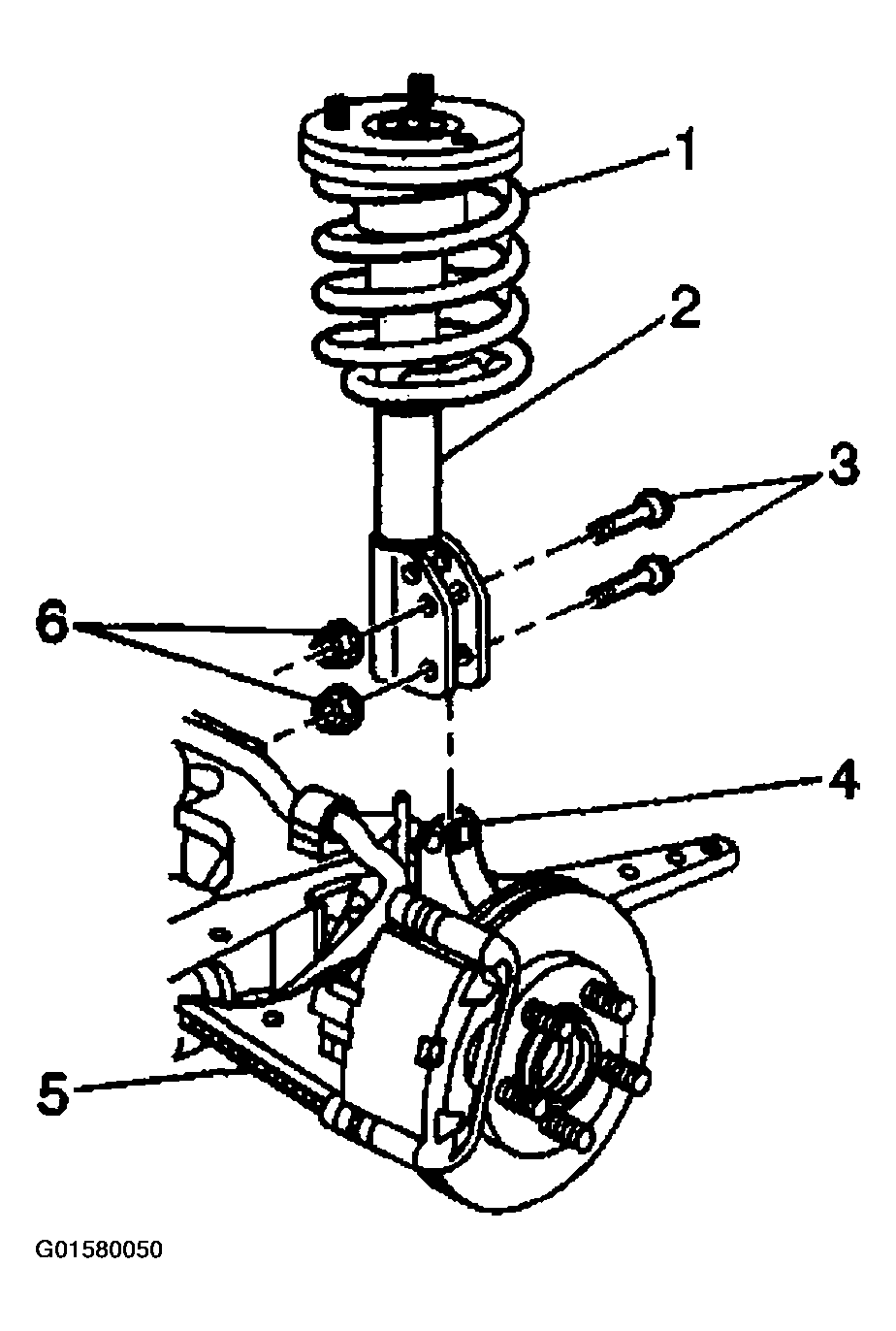

    7. Fig 1: Identifying Strut Assembly-To-Steering Knuckle Nuts & Bolts
    G01580050Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower ball joint from the steering knuckle. Refer to Lower Ball Joint Replacement .
  8. Remove the steering knuckle (4) from the vehicle.
