Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering knuckle (4) to the vehicle.

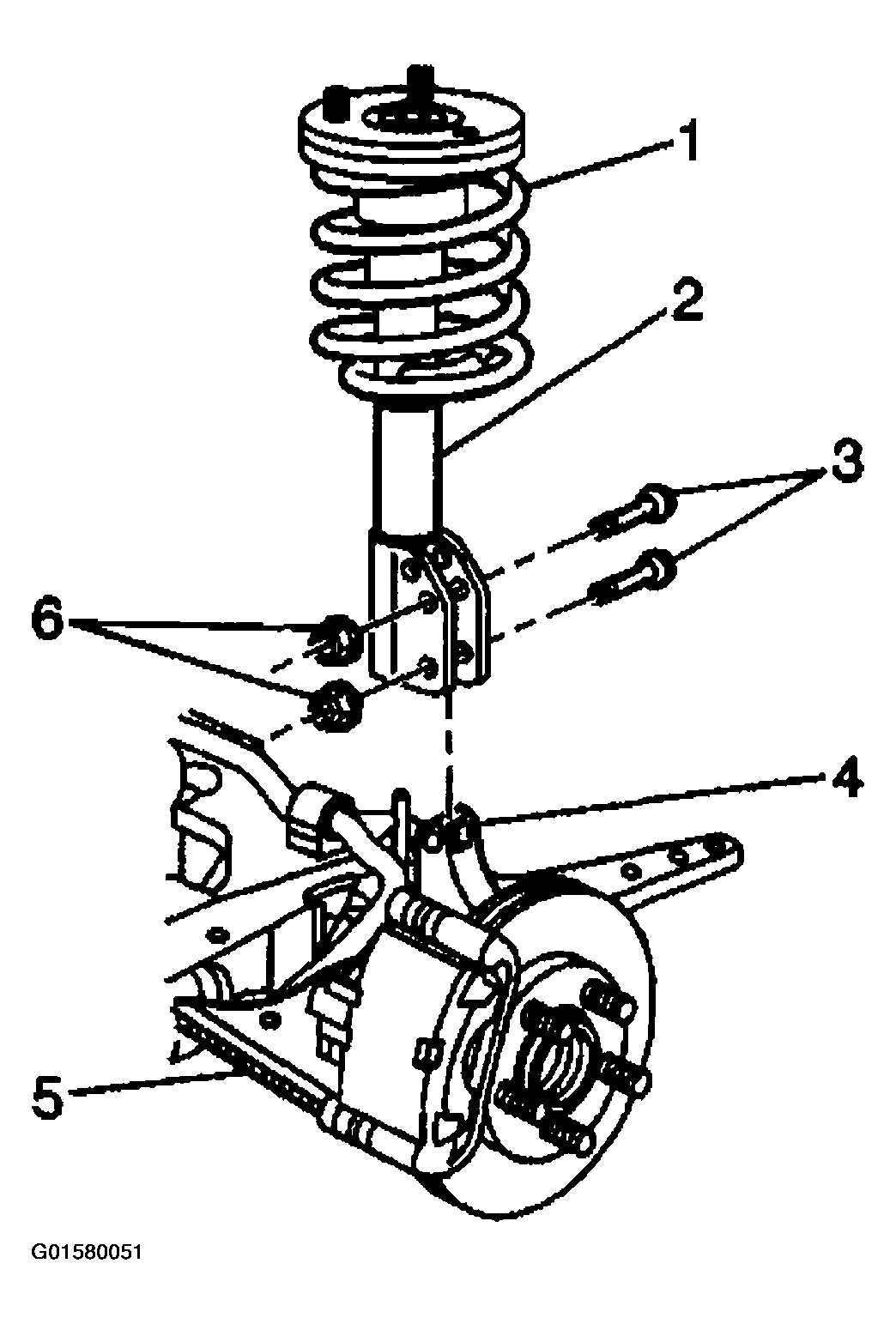

    2. Fig 1: Identifying Strut Assembly-To-Steering Knuckle Nuts & Bolts
    G01580051Courtesy of GENERAL MOTORS CORP.
  2. Install the lower ball joint to the steering knuckle. Refer to Lower Ball Joint Replacement .
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts (3) and the nuts (6) attaching the steering knuckle (4) to the strut (2). Tighten the nuts (6) to 180 N.m (133 lb ft).
  4. Install the hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Front .
  5. If the vehicle is equipped with ABS, connect the ABS electrical connector.
  6. Install the tie rod to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER .
  7. Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Inspect the front wheel alignment. Refer to MEASURING WHEEL ALIGNMENT .
