Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the front tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the stabilizer shaft from the vehicle. Refer to Stabilizer Shaft Replacement .
  4. Remove the stabilizer shaft bushings (5) from the stabilizer shaft (3).

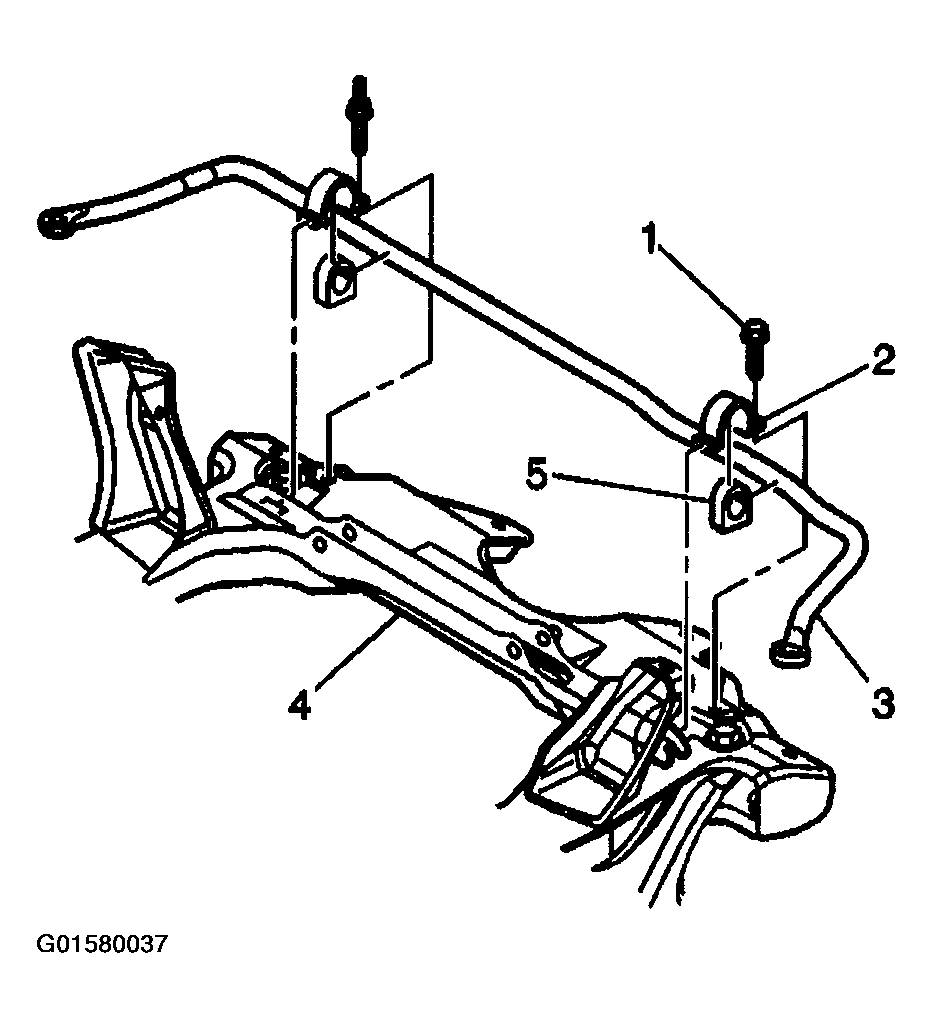

    5. Fig 1: Identifying Stabilizer Shaft Components
    G01580037Courtesy of GENERAL MOTORS CORP.
