Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft bushings (5) to the stabilizer shaft (3).

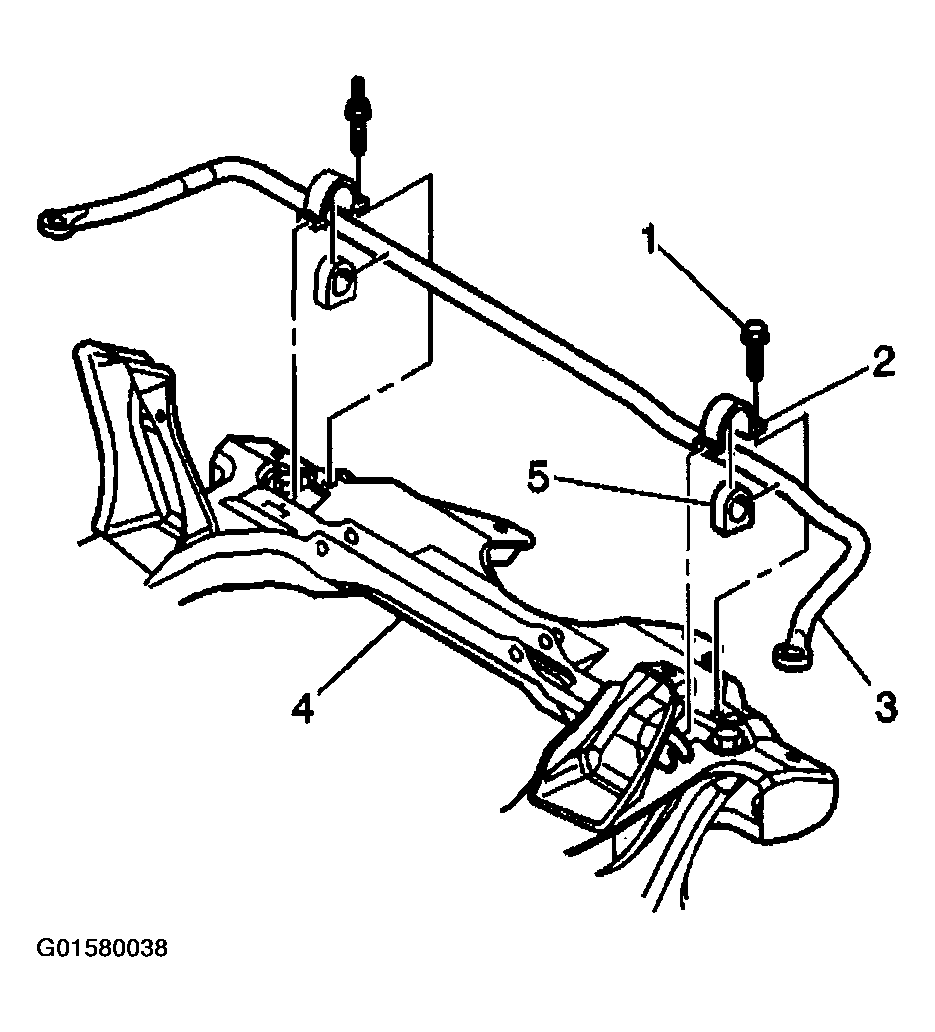

    2. Fig 1: Identifying Stabilizer Shaft Components
    G01580038Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft to the vehicle. Refer to Stabilizer Shaft Replacement .
  3. Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
