Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm. Refer to Lower Control Arm Replacement .
  2. Secure the lower control arm in a vice.

    Important:  Apply J 23444 A  or equivalent high pressure lubricant to the threads of the J 21474-19

  3. Assemble the following bushing removal tools as shown:
    • J 21474-19
    • The remover/installer from the J 41397
    • The receiver from the J 41397
    • J 21474-18
  4. Tighten the J 21474-18  until the front bushing is removed from the control arm.
  5. Disassemble the bushing removal tools.
  6. Assemble the following bushing removal tools as shown:

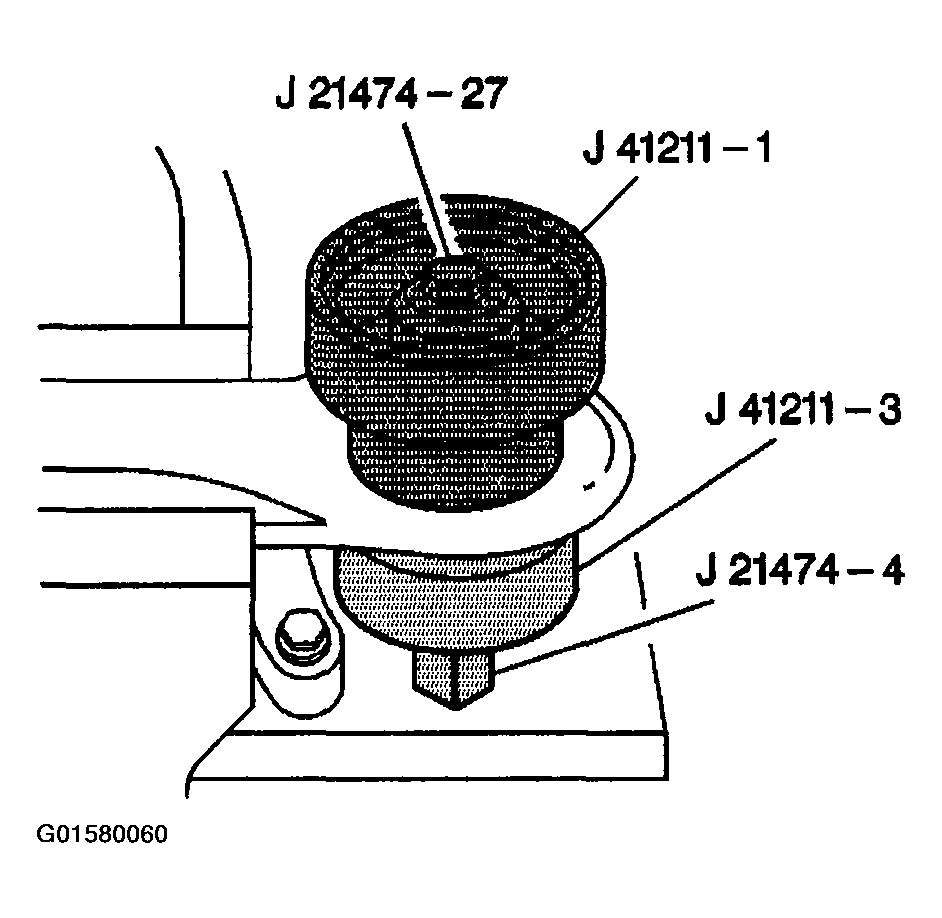

    Fig 1: Identifying Proper Assemble Of Rear Bushing Removal Tools
    G01580060Courtesy of GENERAL MOTORS CORP.
    • J 21474-27
    • The remover/installer from the J 41211
    • The receiver from the J 41211
    • J 21474-4
  7. Tighten the J 21474-27  until the rear bushing is removed from the control arm.
  8. Disassemble the bushing removal tools.
