Removal procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the bolt (2) from the front suspension support brace (3) and the front suspension crossmember (1).

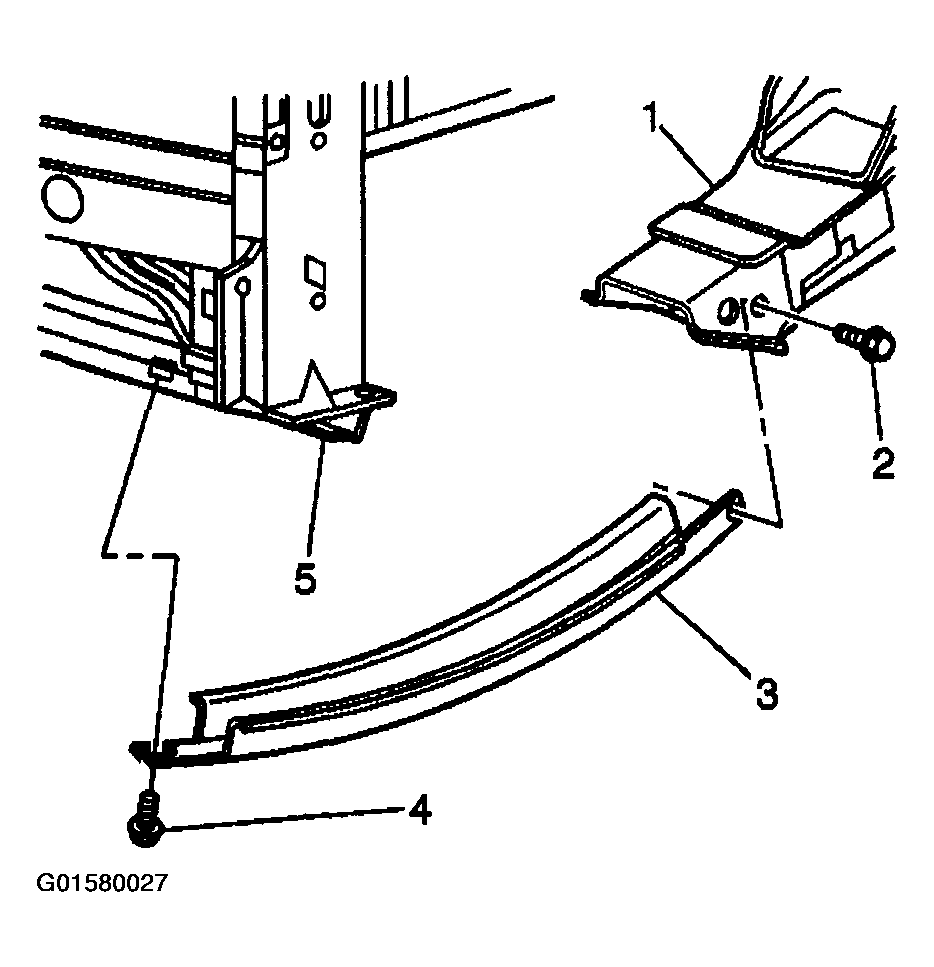

    3. Fig 1: Identifying Front Suspension Support Brace
    G01580027Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt (4) from the front suspension support brace (3) and the lower tie bar (5).
  4. Remove the front suspension support brace (3) from the vehicle.
