Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arms. Refer to Lower Control Arm Replacement .
  2. Lower the vehicle on to the front crossmember support.
    NOTE: Refer to FASTENER NOTICE .

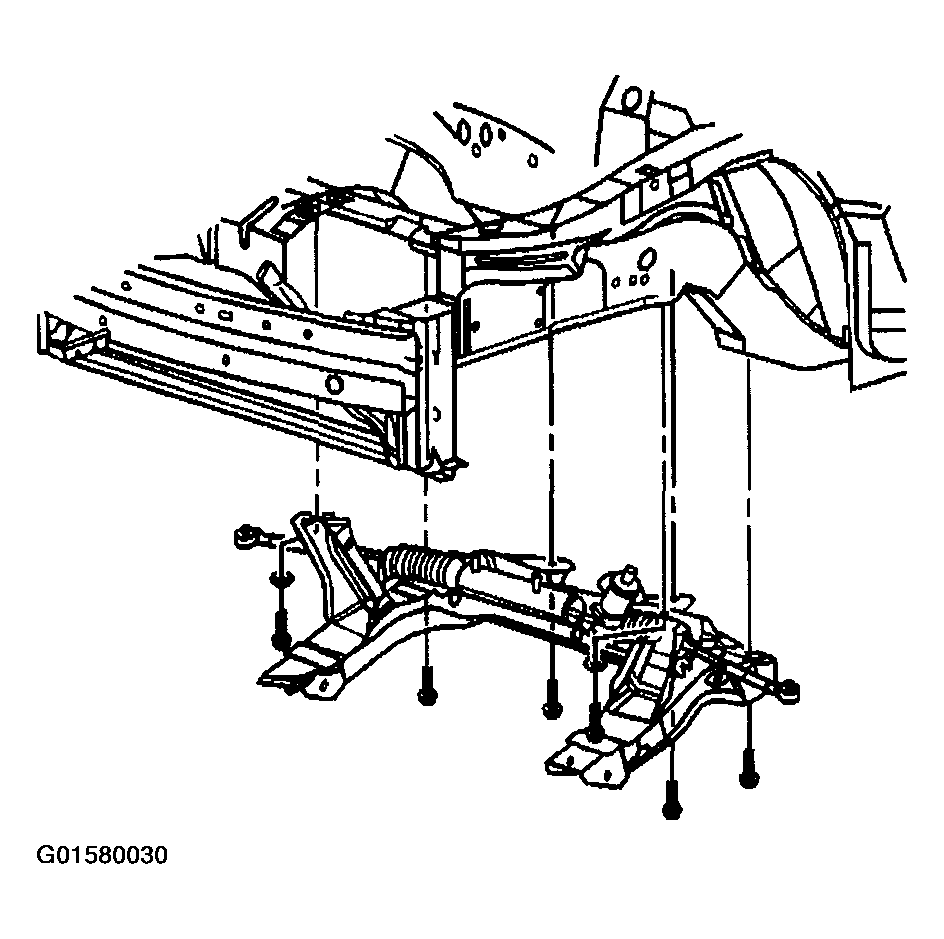

    3. Fig 1: Identifying Front Suspension Crossmember
    G01580030Courtesy of GENERAL MOTORS CORP.
  3. Install the front suspension crossmember mounting bolts.
    1. 3.1. Tighten the left rear outboard bolt to 110 N.m (71 lb ft).
    2. 3.2. Tighten the right rear outboard bolt to 110 N.m (71 lb ft).
    3. 3.3. Tighten the front upper bolt to 110 N.m (71 lb ft).
    4. 3.4. Tighten the rear inboard bolts to 110 N.m (71 lb ft).
  4. Install the front suspension support brace. Refer to Front Suspension Support Brace Replacement .
  5. Remove the mechanic's wire or equivalent, and install the power steering gear mounting bolts. Refer to POWER STEERING GEAR REPLACEMENT (MANUAL TRANSMISSION) or POWER STEERING GEAR REPLACEMENT (AUTOMATIC TRANSMISSION) .
  6. On vehicles with the brake pipe running along the support frame, install the brake pipe into the retainers.
  7. Install the tie rods to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER .
  8. Install the ball joints to the steering knuckles. Refer to Lower Ball Joint Replacement .
  9. Connect the ABS harness to the lower control arms. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT .
  10. Install the front exhaust pipe. Refer to INTERMEDIATE PIPE REPLACEMENT .
  11. Install the engine strut to the lower engine mount and frame. Refer to ENGINE MOUNT STRUT REPLACEMENT .
  12. Install the front fender liners. Refer to FRONT FENDER LINER REPLACEMENT .
  13. Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  14. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
