Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine oil pan. Refer to Oil Pan Replacement .
  2. Remove the balance shaft chain cover.

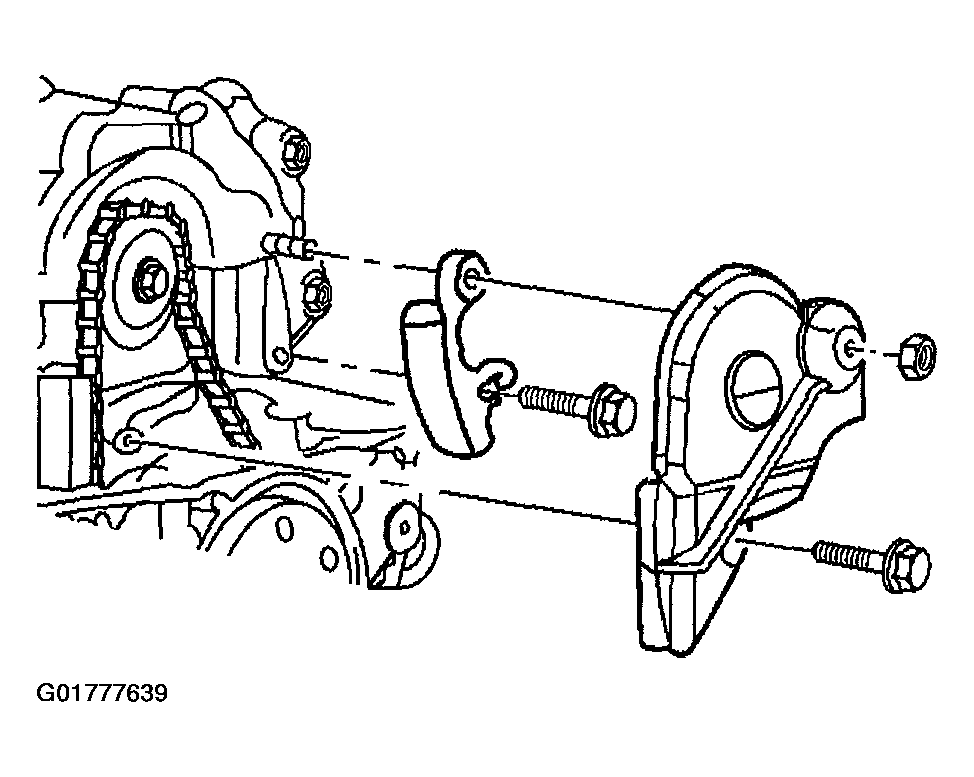

    Fig 1: Balance Shaft Chain Cover
    G01777639Courtesy of GENERAL MOTORS CORP.
  3. Remove the balance shaft chain tensioner assembly.
  4. Remove the oil pump cover.

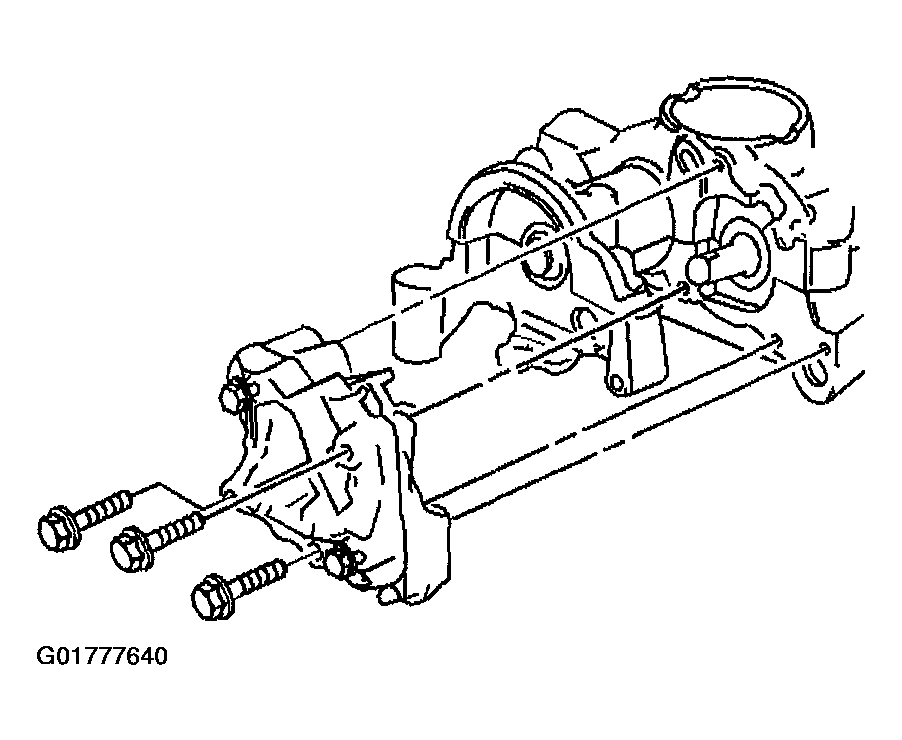

    5. Fig 2: Oil Pump Cover
    G01777640Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil pump.
