Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle.
  2. Drain the engine oil.
  3. Drain cooling system.
  4. Remove the flywheel inspection shield.
  5. Remove the right front wheel and tire assembly.
  6. Remove the right engine splash shield.
  7. Remove the drive belt. Refer to Drive Belt Replacement .
  8. Remove the A/C compressor lower bolts.
  9. Remove the transmission to the engine brace.

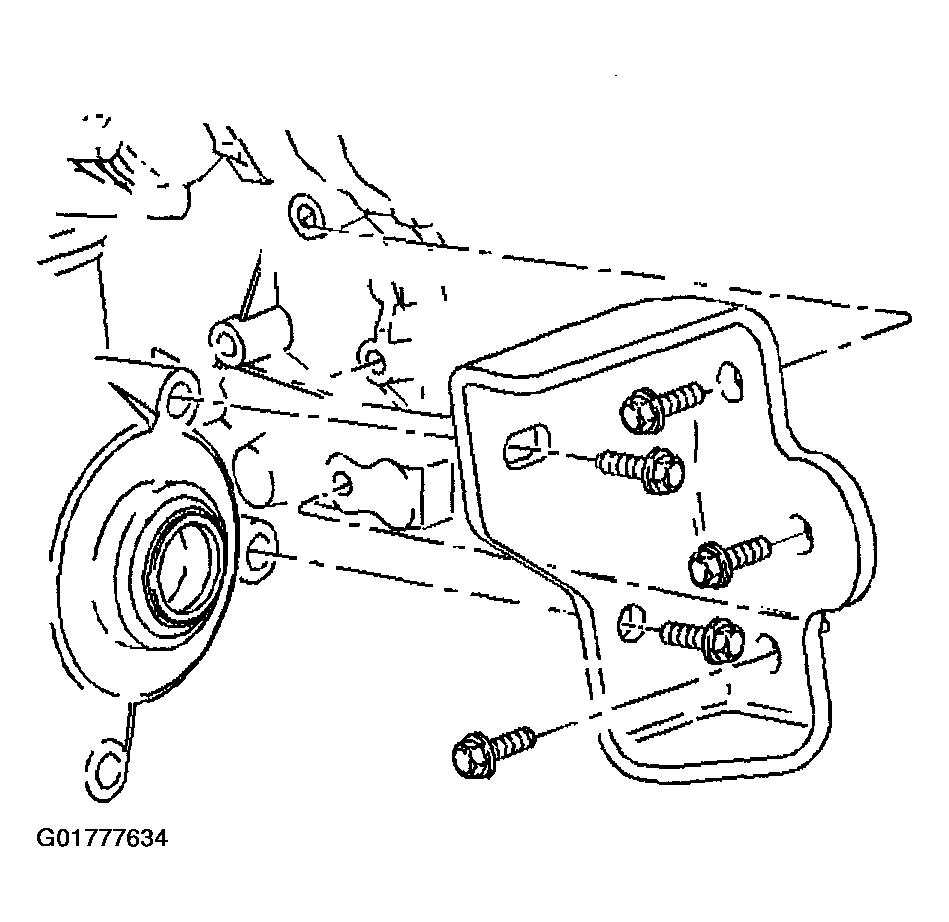

    Fig 1: Transmission-To-Engine Brace
    G01777634Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement .

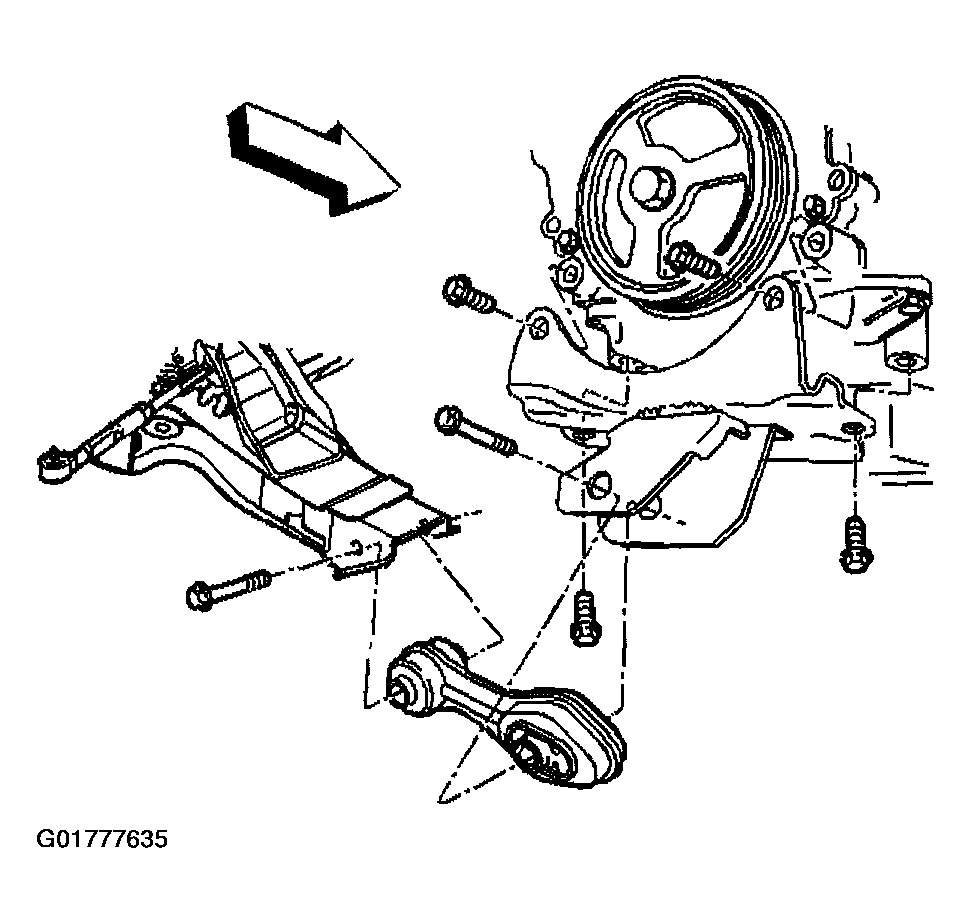

    11. Fig 2: Engine Mount Strut Bracket
    G01777635Courtesy of GENERAL MOTORS CORP.
  11. Remove the radiator outlet pipe.
  12. Remove the oil pan-to-transmission nut and bolts.
  13. Remove the oil pan-to-transmission stud for clearance.
  14. Remove the oil pan bolts.
  15. Remove the oil pan.

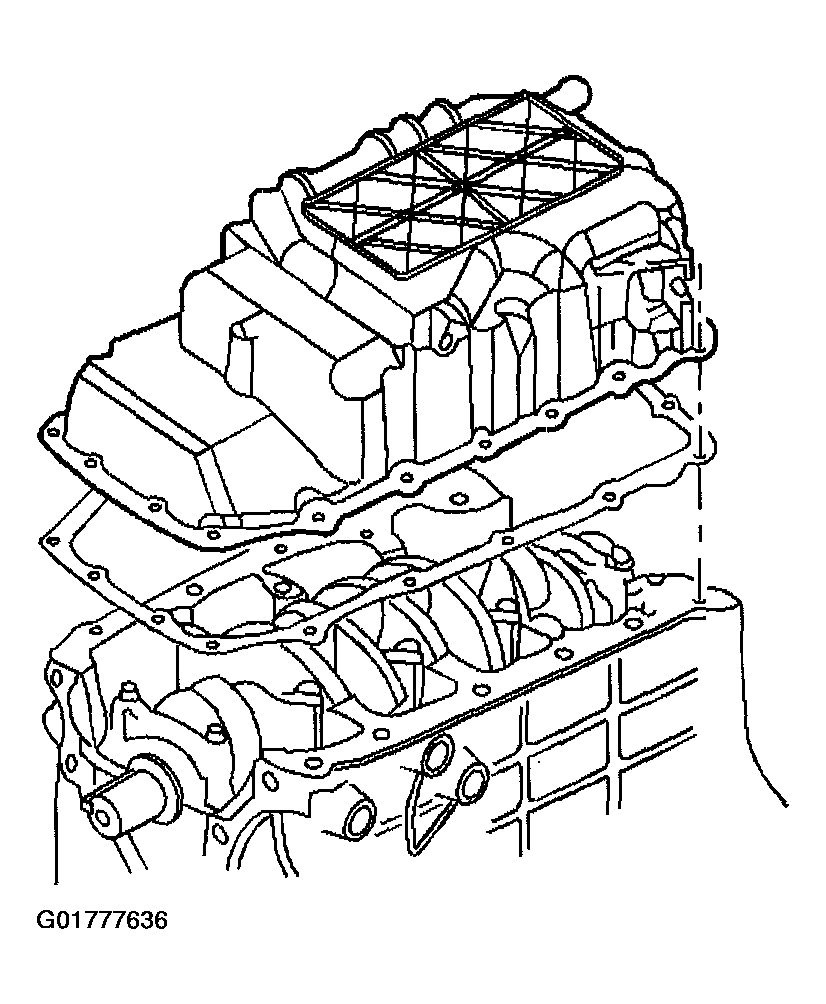

    Fig 3: Oil Pan
    G01777636Courtesy of GENERAL MOTORS CORP.
