Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tube bracket to the rear cam carrier lift bracket nut.
  2. Remove the tube from the block.

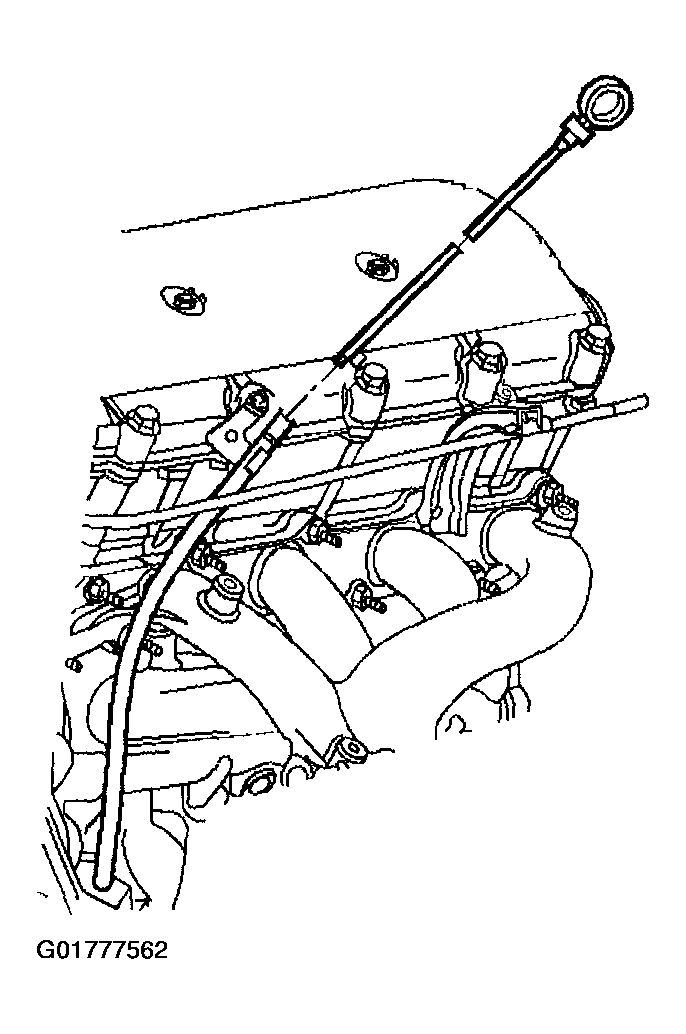

    Fig 1: Oil Dipstick Tube
    G01777562Courtesy of GENERAL MOTORS CORP.
