Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right engine splash shield.
  3. Remove the engine mount strut bolts.
  4. Remove the engine mount strut.

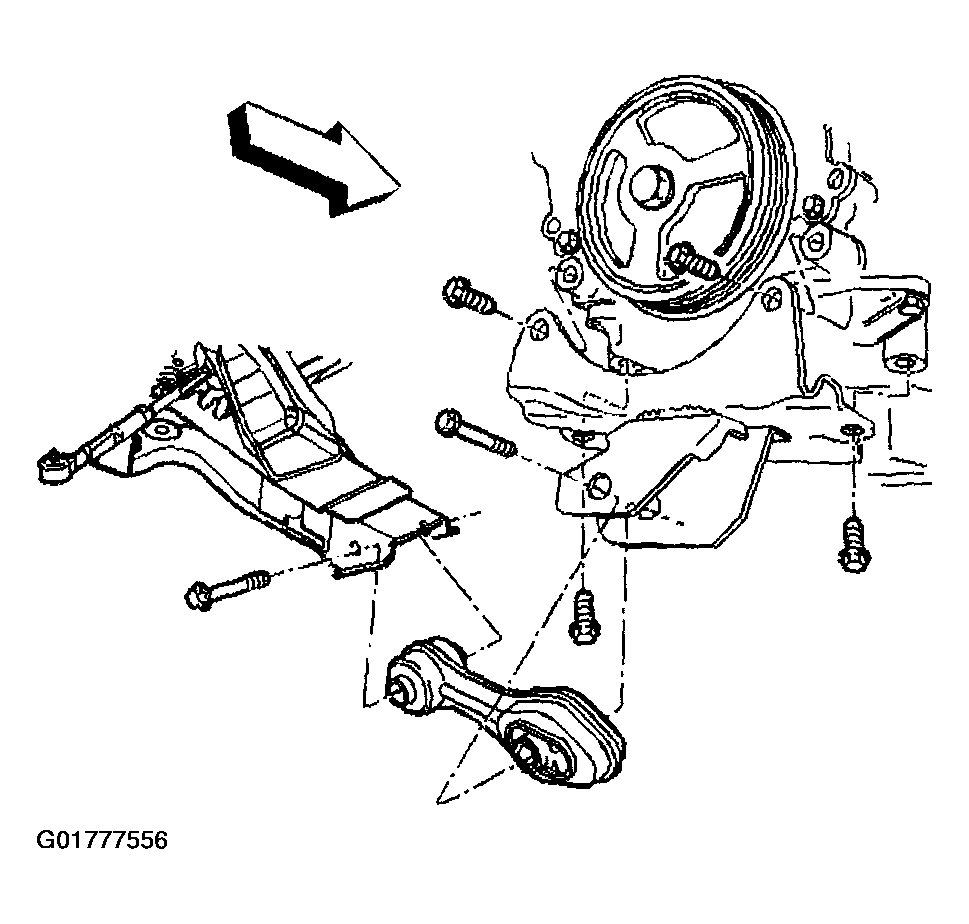

    Fig 1: Engine Mount Strut
    G01777556Courtesy of GENERAL MOTORS CORP.
