Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the one bolt attaching the coolant recovery tank.
  2. Remove the coolant recovery tank and position it aside.
  3. Install the J 28467-360  and raise the engine off of the mount.
  4. Remove the nuts holding the mount to the body.
  5. Remove the bolts holding the engine bracket to the mount.
  6. Remove the engine mount assembly.

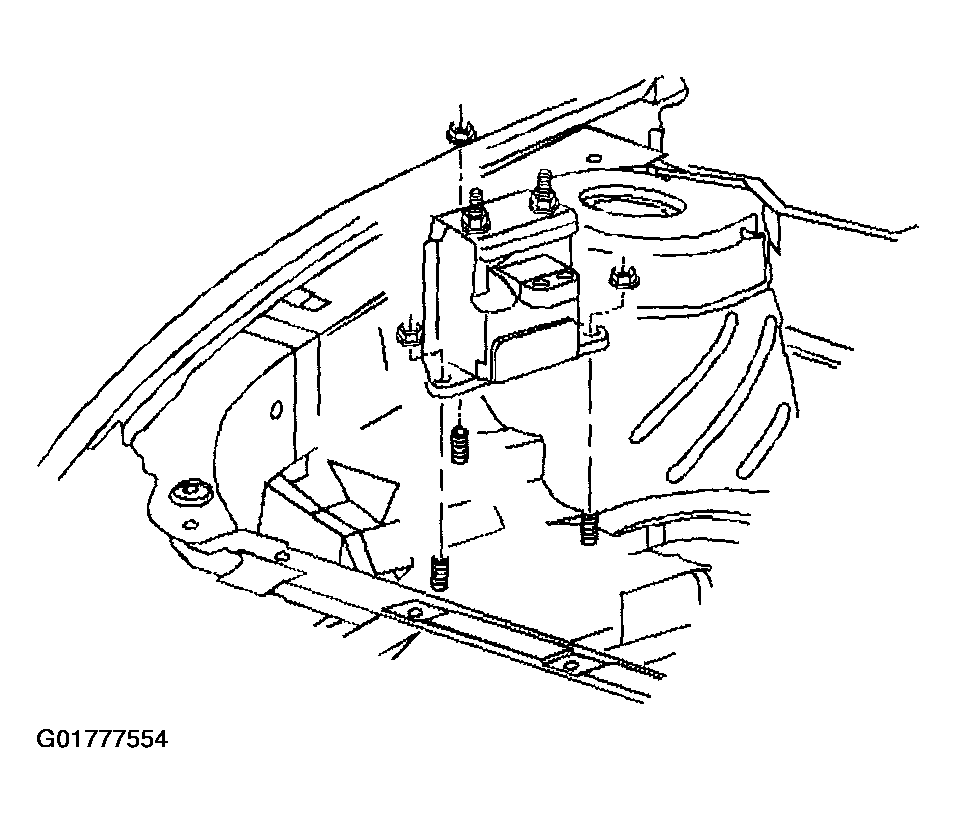

    Fig 1: Engine Mount Assembly
    G01777554Courtesy of GENERAL MOTORS CORP.
