Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 28467-360  .
  2. Install the J 36462  .
  3. Remove engine mount. Refer to Engine Mount Replacement .
  4. Remove engine mount bracket bolt and bracket.

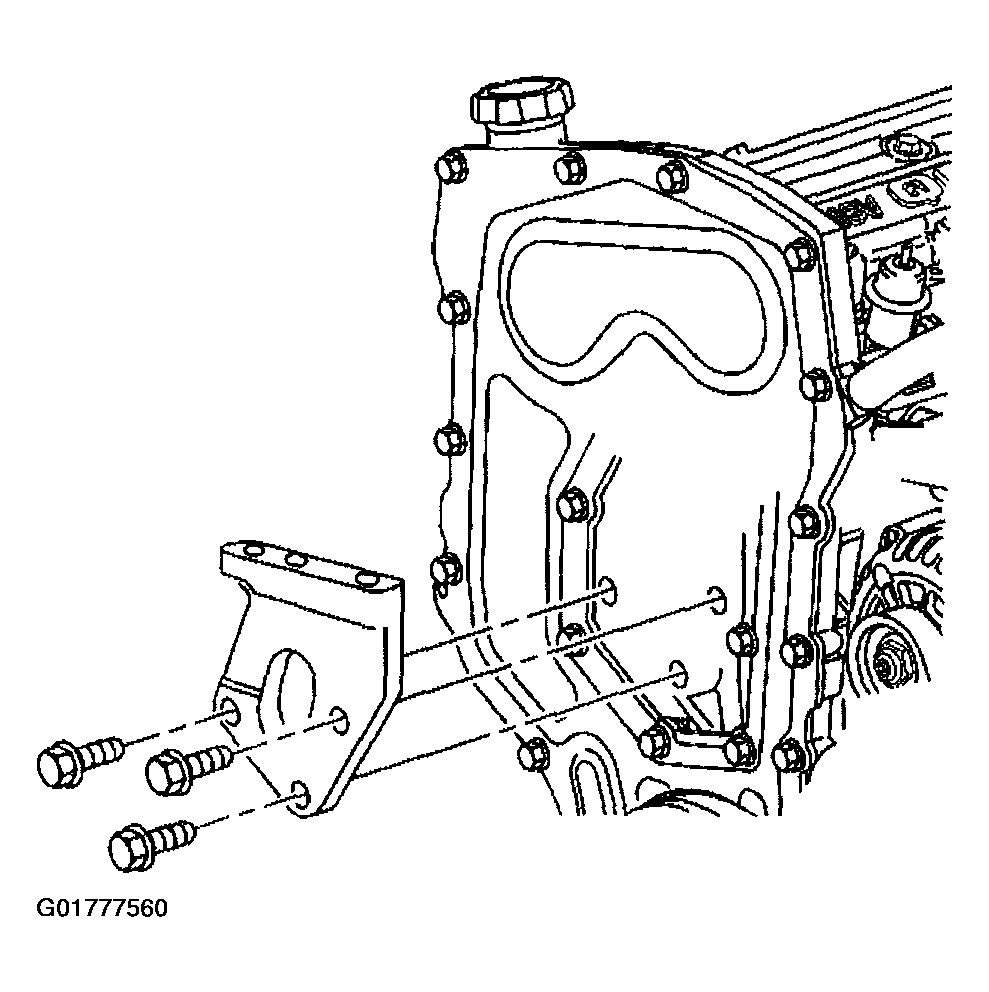

    Fig 1: Engine Mount Bracket
    G01777560Courtesy of GENERAL MOTORS CORP.
