Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the generator assembly.
  3. Raise and support the vehicle.
  4. Remove the A/C compressor bolts. Position the A/C compressor aside.
  5. Remove the tensioner bolts and tensioner.

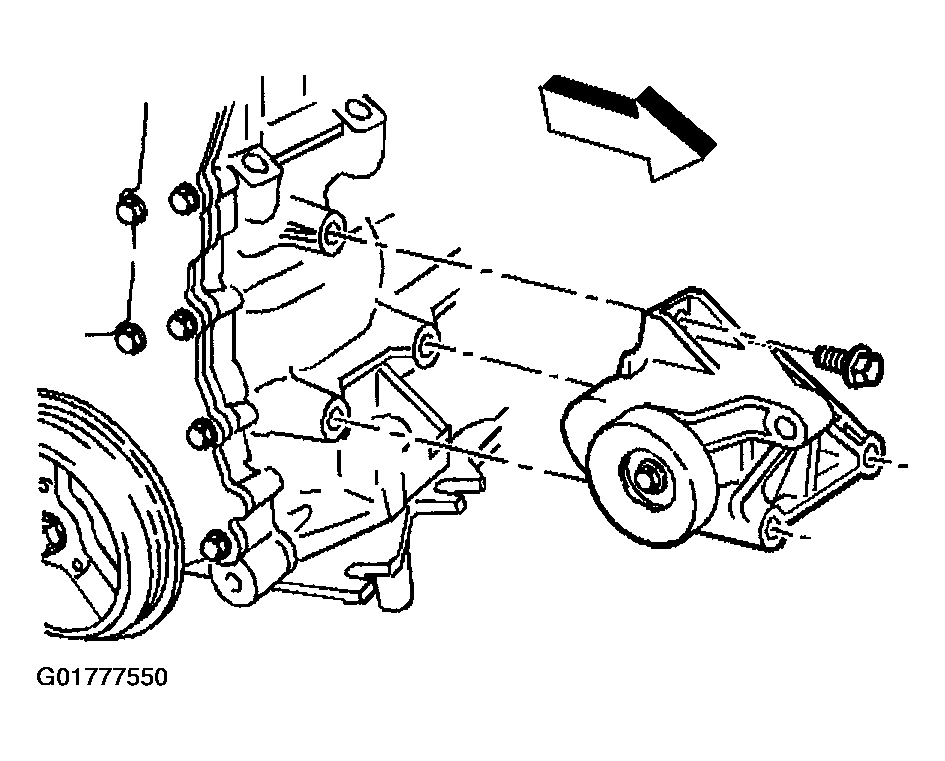

    Fig 1: Drive Belt Tensioner Assembly
    G01777550Courtesy of GENERAL MOTORS CORP.
