Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the flywheel.

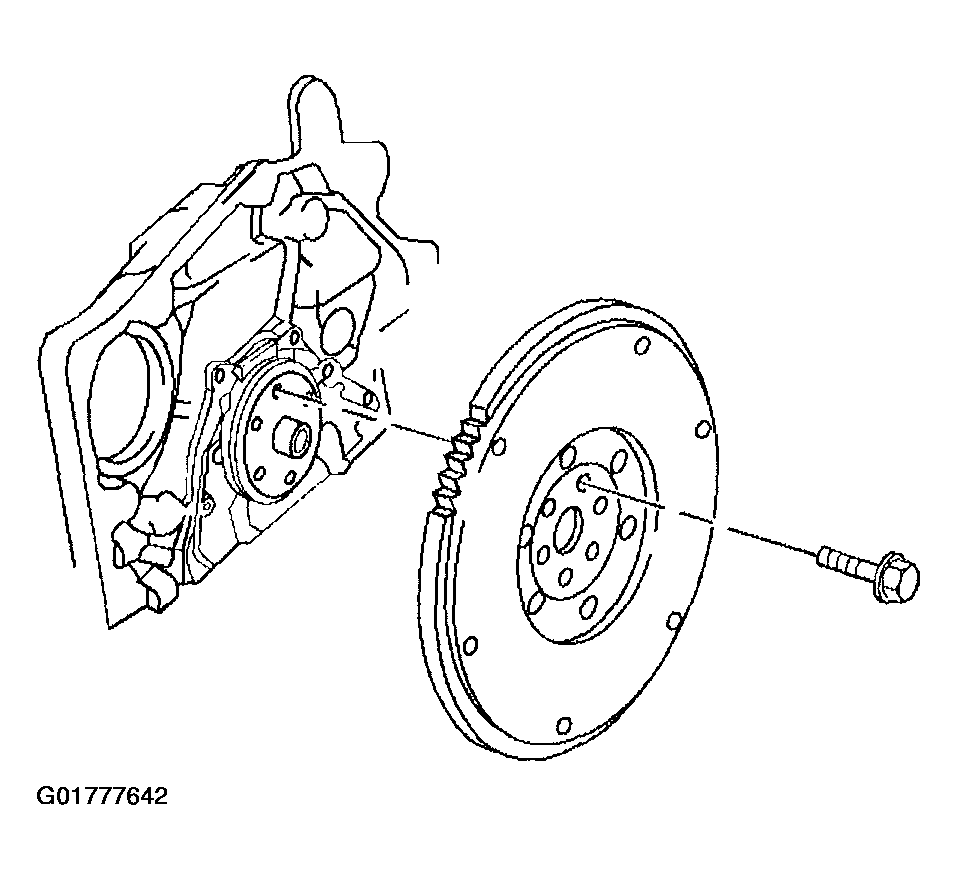

    Fig 1: Flywheel Assembly
    G01777642Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan to the crankshaft seal housing bolts.
  4. Remove the seal housing to block bolts.
  5. Remove the seal housing and gasket.
    NOTE: Properly support the seal housing to prevent damage to the seal during removal. Damage to the seal will result in an oil leak.
  6. Support the seal housing for the seal removal using two wood blocks of equal thickness. With the wood blocks on a flat surface, position the seal housing and the blocks so that the transmission side of the seal housing is supported across the dowel pin and center bolt holes on both sides of the seal opening.

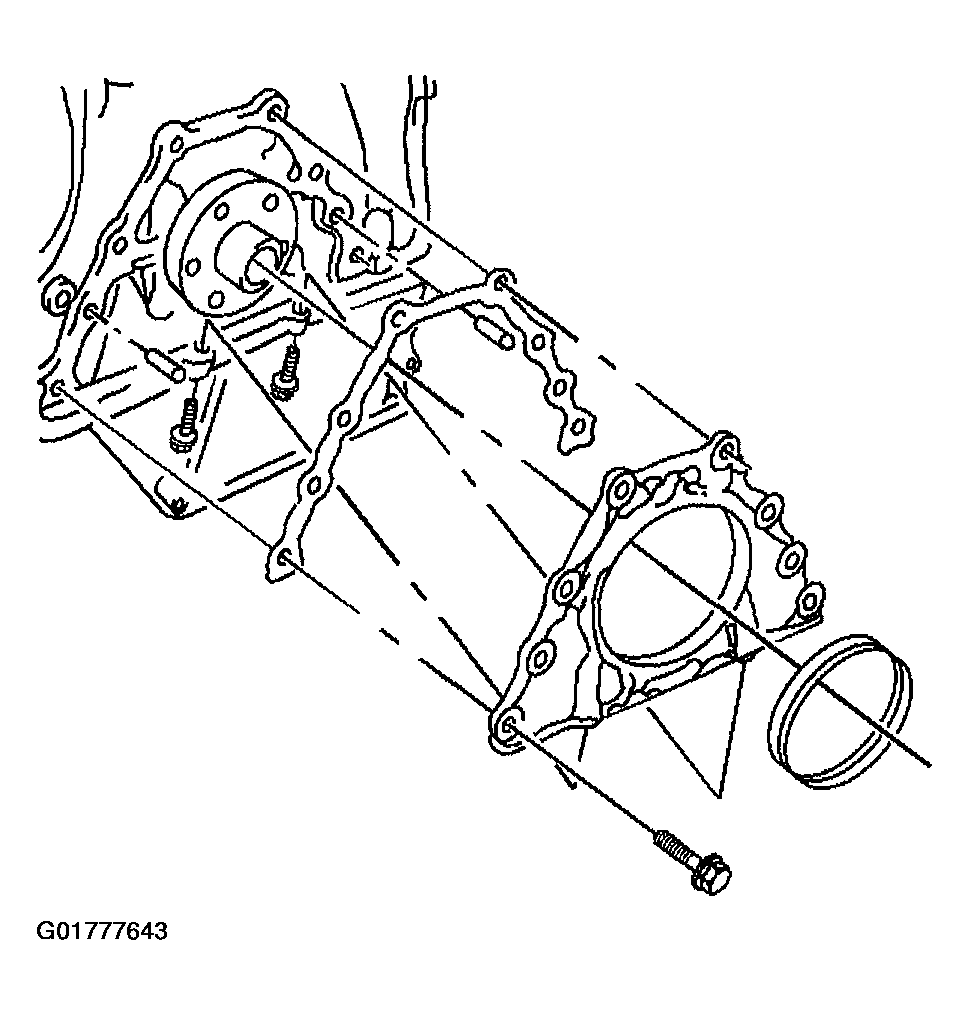

    7. Fig 2: Seal Housing
    G01777643Courtesy of GENERAL MOTORS CORP.
  7. Drive the crankshaft seal evenly out of the transmission side of the seal housing using a small chisel in the relief grooves on the crankshaft side of the seal housing.
