Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
    NOTE: The engine front cover could be damaged if it is not properly supported during seal removal.
  2. Support the front cover and drive the oil seal out the timing chain side of the cover.

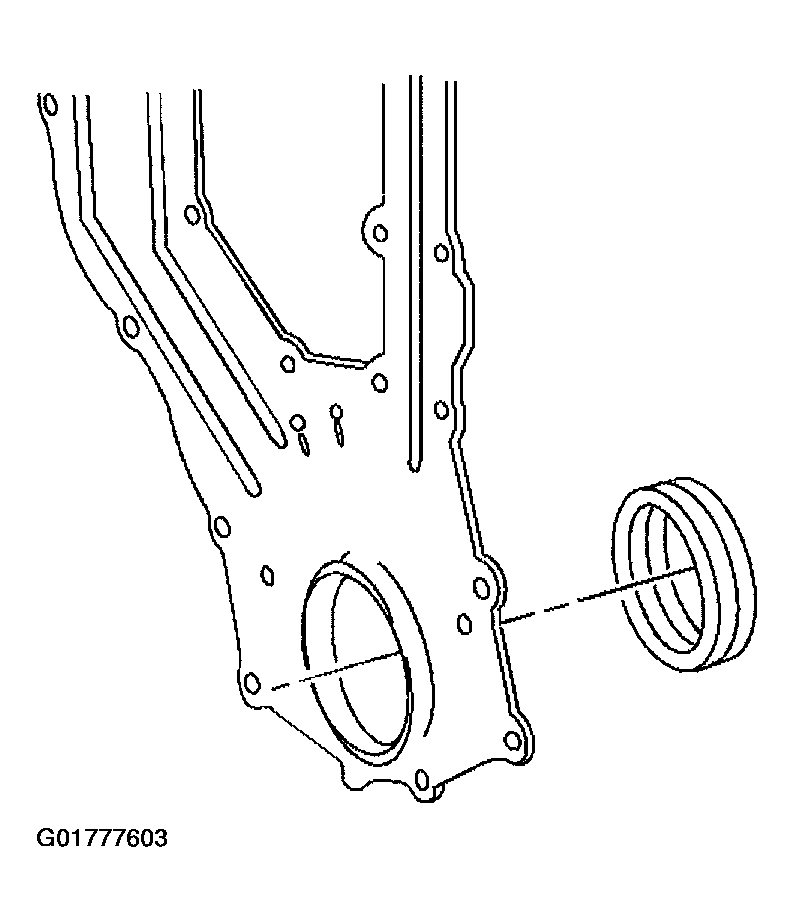

    Fig 1: Crankshaft Front Oil Seal
    G01777603Courtesy of GENERAL MOTORS CORP.
