Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Raise and suitably support the vehicle.
  3. Remove the right engine splash shield.
  4. Remove the balancer retaining bolt and the washer using J 38122-A  to prevent crankshaft rotation when loosening the bolt.
  5. Remove the balancer assembly using J 24420-B  .

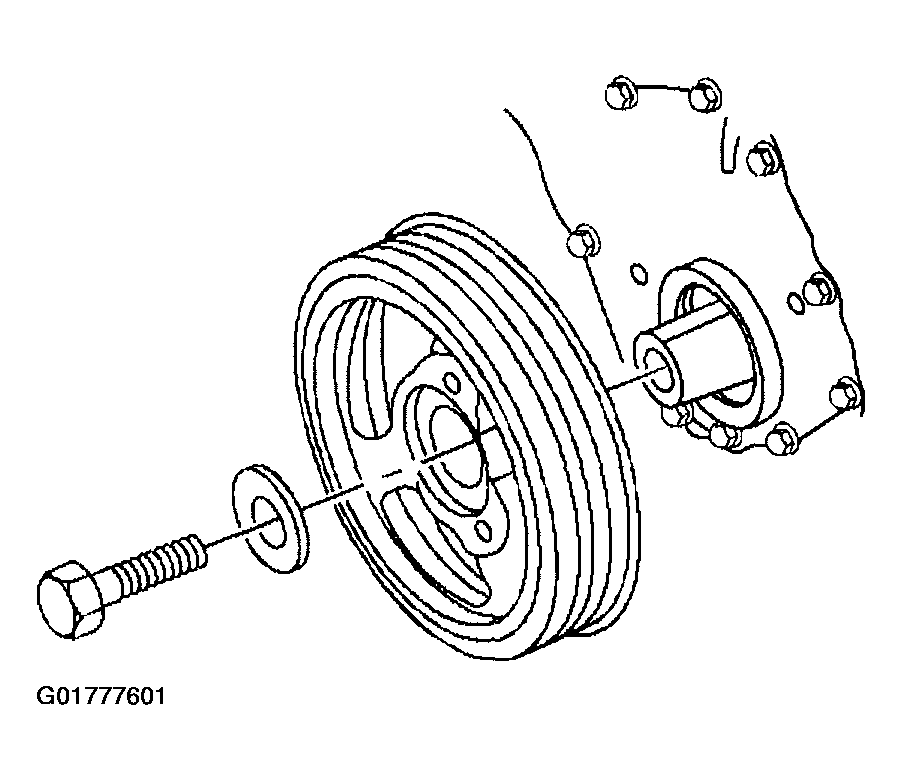

    Fig 1: Balancer Assembly
    G01777601Courtesy of GENERAL MOTORS CORP.
