Inspection Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important:  When the engine is operating the drive belt tensioner arm will move. Do not replace the drive belt tensioner because of movement in the drive belt tensioner arm.

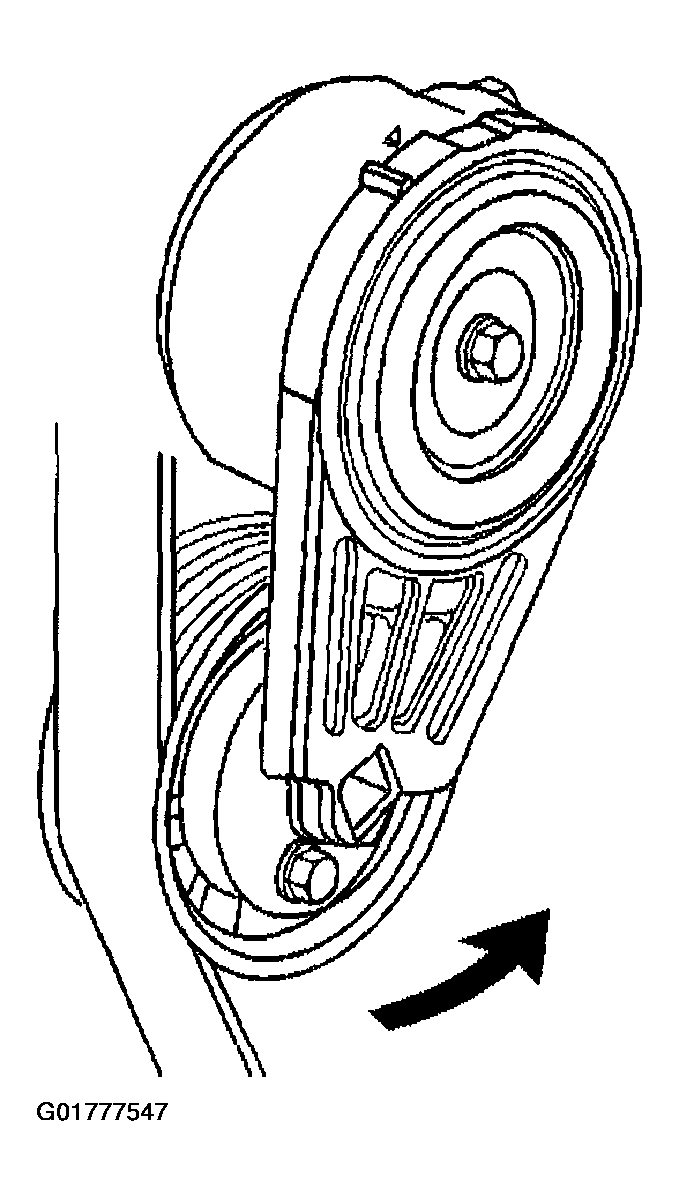

Fig 1: Drive Belt Tensioner
G01777547Courtesy of GENERAL MOTORS CORP.
NOTE: Allowing the drive belt tensioner to snap into the free position may result in damage to the tensioner.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Position a drive wrench on the drive belt tensioner arm and rotate the arm counterclockwise.
  3. Move the drive belt tensioner through it's full travel.
    • The movement should feel smooth.
    • There should be no binding.
    • The tensioner should return freely.
  4. If any binding is observed, replace the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  5. Install the drive belt. Refer to Drive Belt Replacement .
