Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft. Refer to Intake Camshaft & Lifter Replacement  or Exhaust Camshaft & Lifter Replacement  .
  2. Remove the camshaft roller followers.

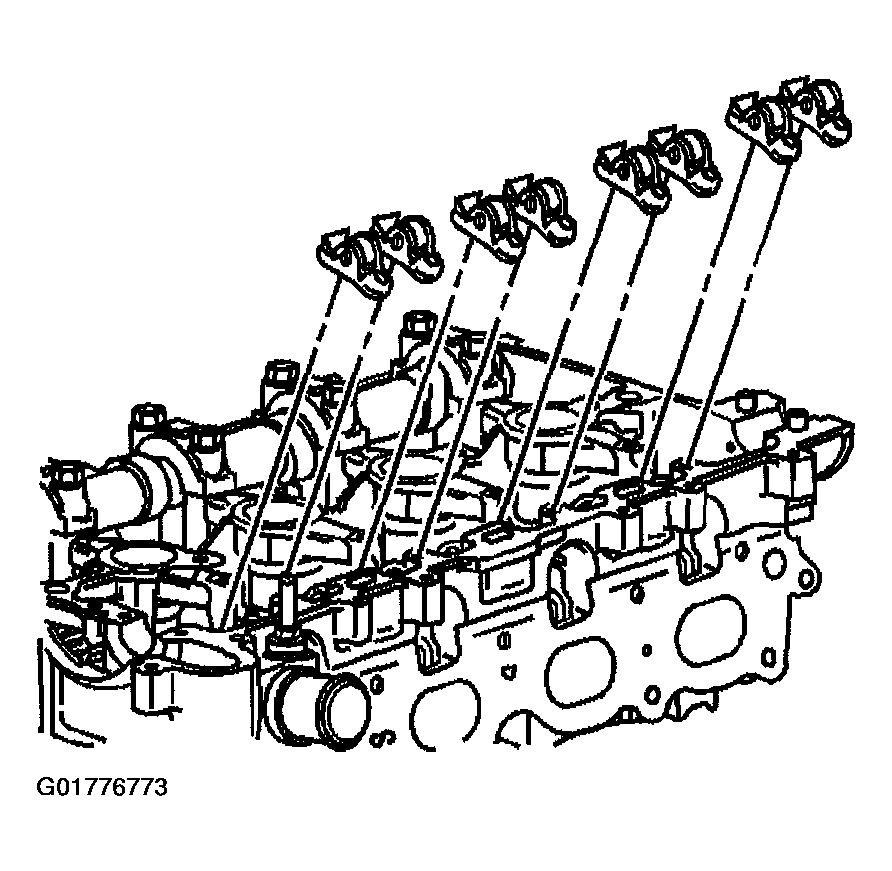

    Fig 1: Camshaft Roller Followers
    G01776773Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43649  to the cylinder head.
  4. Remove the spark plugs.

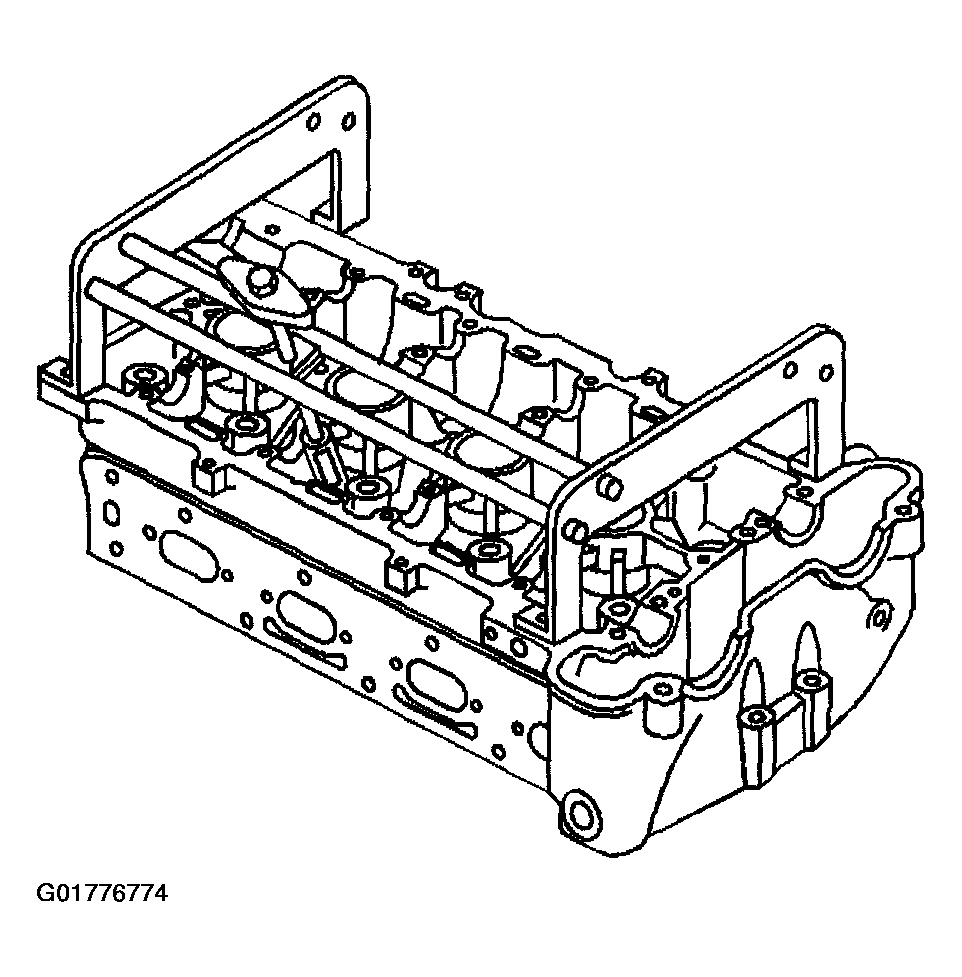

    Fig 2: Valve Spring Compressor
    G01776774Courtesy of GENERAL MOTORS CORP.
  5. Install an air hose adaptor into the spark plug hole.
  6. Pressurize the cylinder to 690 kPa (100 psi).
  7. Compress the valve spring.
  8. Remove the valve spring keepers.
  9. Remove the valve spring.

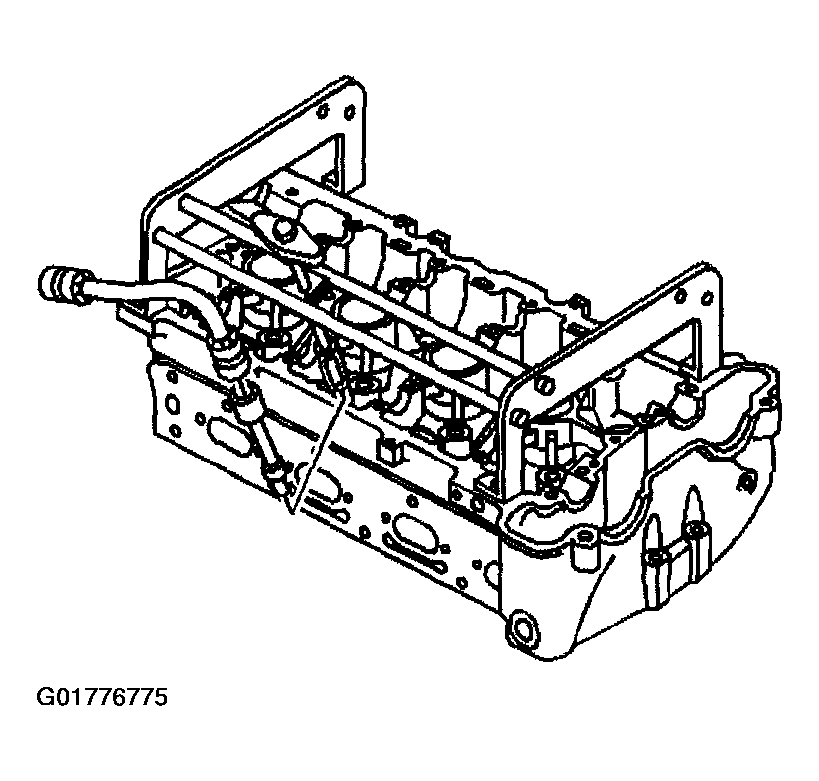

    Fig 3: Removing Valve Spring
    G01776775Courtesy of GENERAL MOTORS CORP.
  10. Using the J 36017  to remove the valve seal.

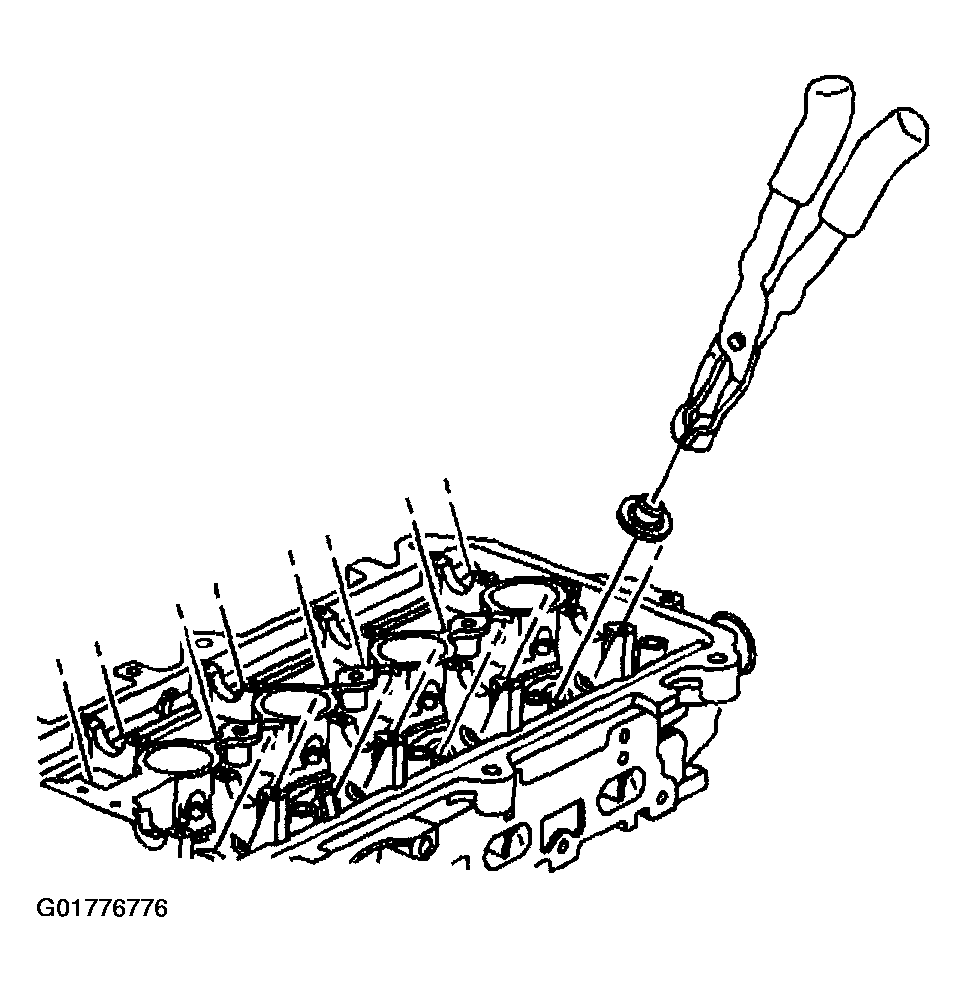

    Fig 4: Valve Guide Seal Remover
    G01776776Courtesy of GENERAL MOTORS CORP.
